Home >> Mercury >> 1999 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> AX4N >> Symptom Index

Symptom Index

1 Of 2:




2 Of 2:

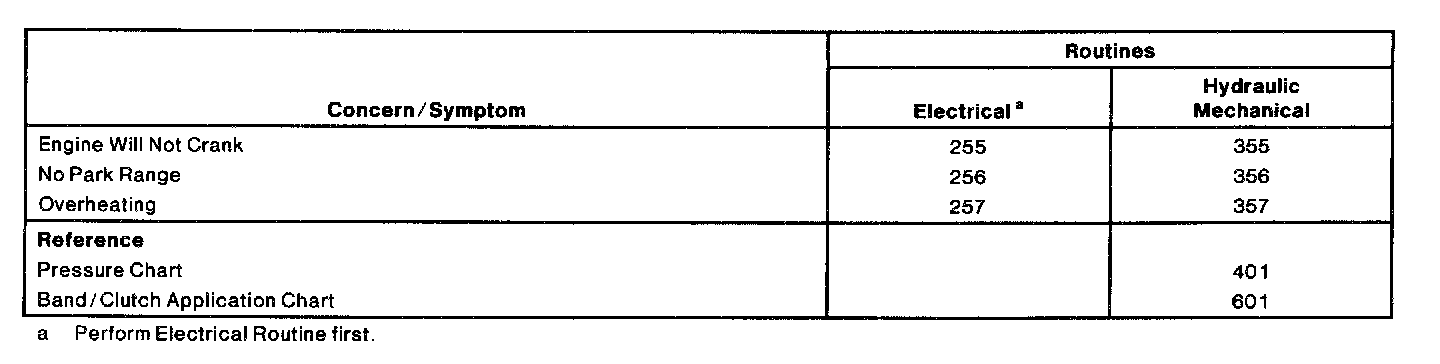

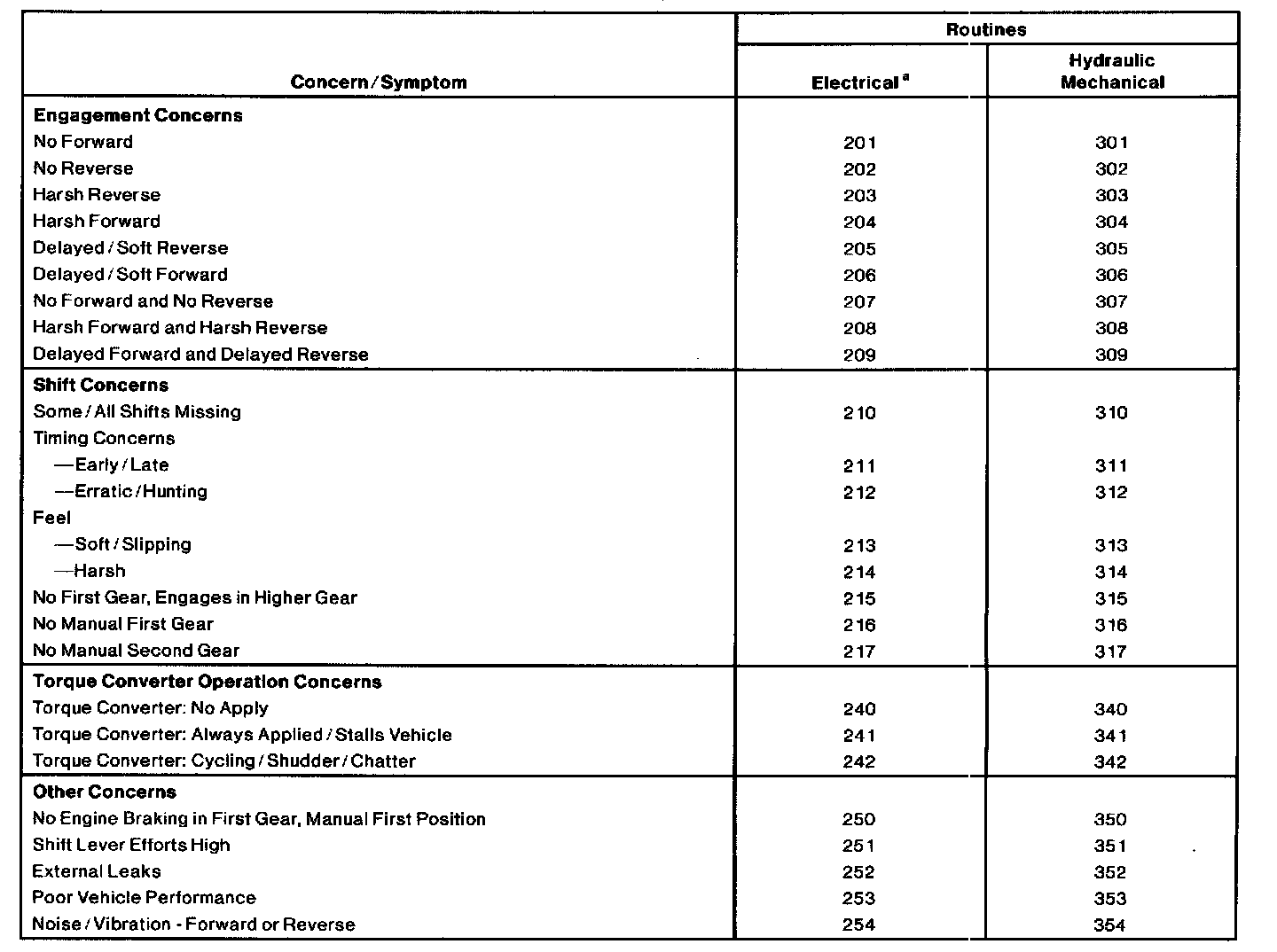

Diagnosis by Symptom Index


NOTE: Perform Electrical Routine first.
