Quick Test 2.0 - Set-Up

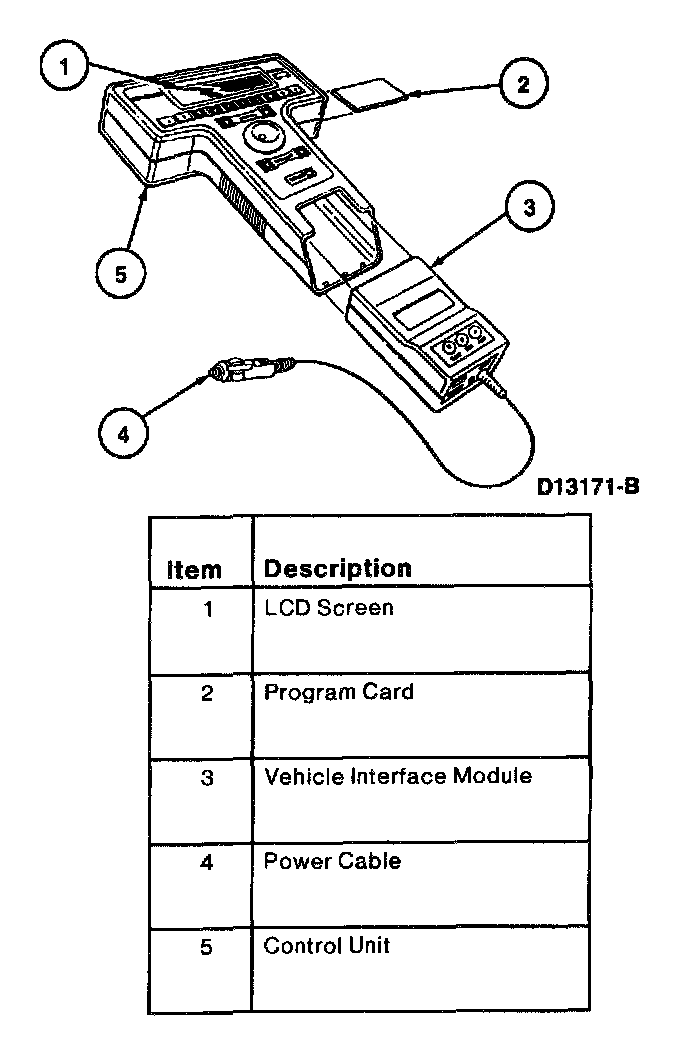

Connect Rotunda New Generation Star(NGS) Tester 418-F048 (007-00500) or equivalent to Data Link Connector (DLC) (refer to vehicle Owner Guide for location).
The following are procedures to run OBD II procedures.

Vehicle and Tester Preparation





Prepare the vehicle as follows:
- Put transaxle range selector lever in PARK.
- Warm engine to operating temperature.
- Apply parking brake.
- Block wheels.
- Turn off all electrical loads including A/C and defroster. (If A/C is on, DTC P1460 will set.)

Prepare the NGS as follows:
- Turn ignition switch to the OFF position.
- Verify that the proper PROGRAM card is inserted in the NGS.
- Connect J1962/16 way Data Communication Link (DCL) cable adapter to the NGS.
- Connect NGS DCL cable adapter securely into the vehicle's DCL connector.
- Connect the NGS power supply cable to the vehicle battery power supply through cigar lighter or at the battery with alligator clip adapter.
- Turn the ignition switch to the RUN position, or start vehicle if necessary.
- The NGS is now ready to communicate with the powertrain control module.
