Home >> Mercury >> 1999 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Pinpoint Tests >> F: Turbine/Transmission Shaft Speed (TSS) Sensor >> AX4S

AX4S

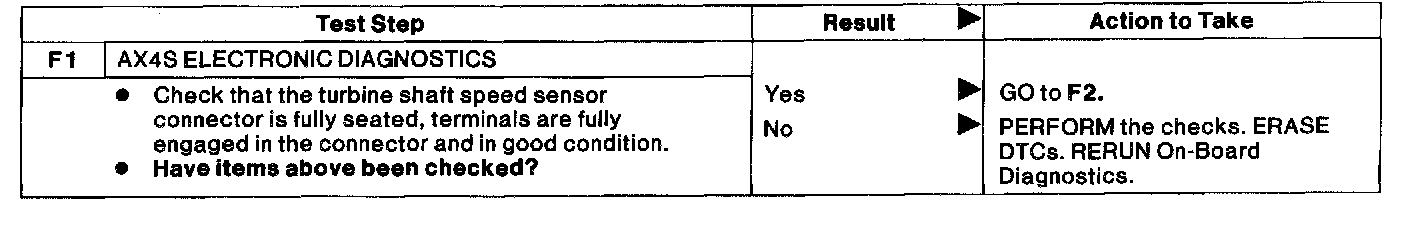

F1:

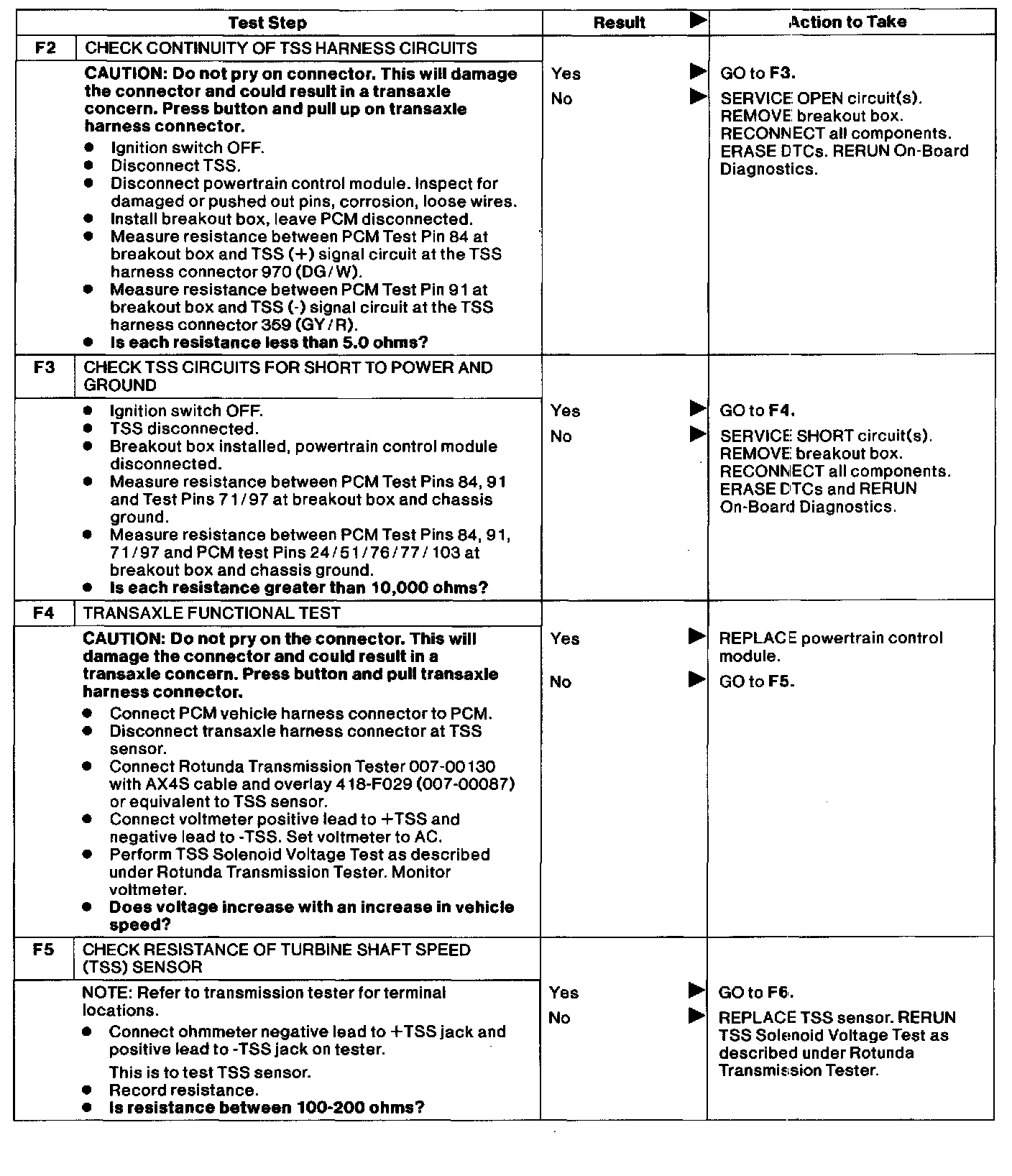

F2 - F5:

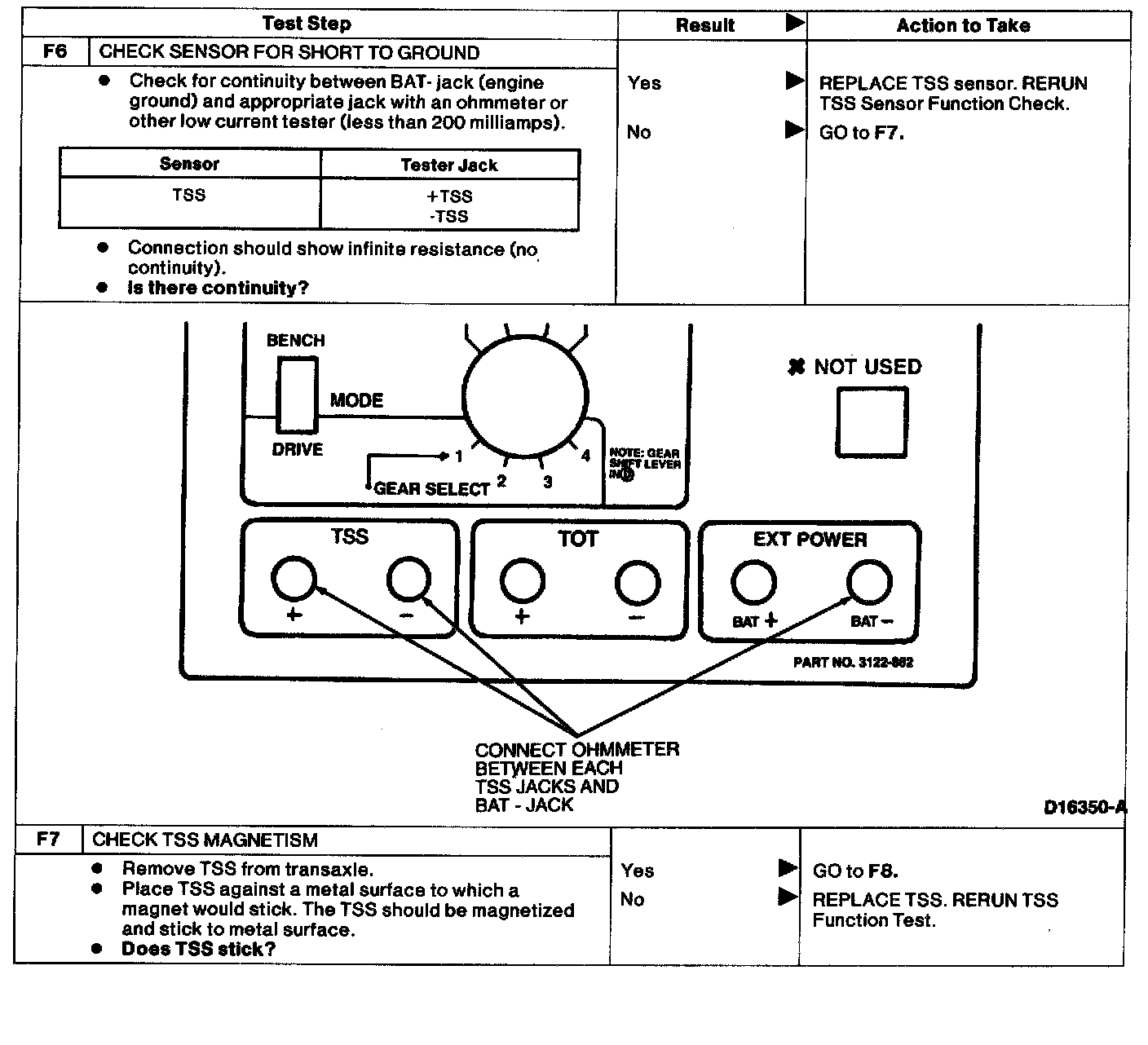

F6 - F7:

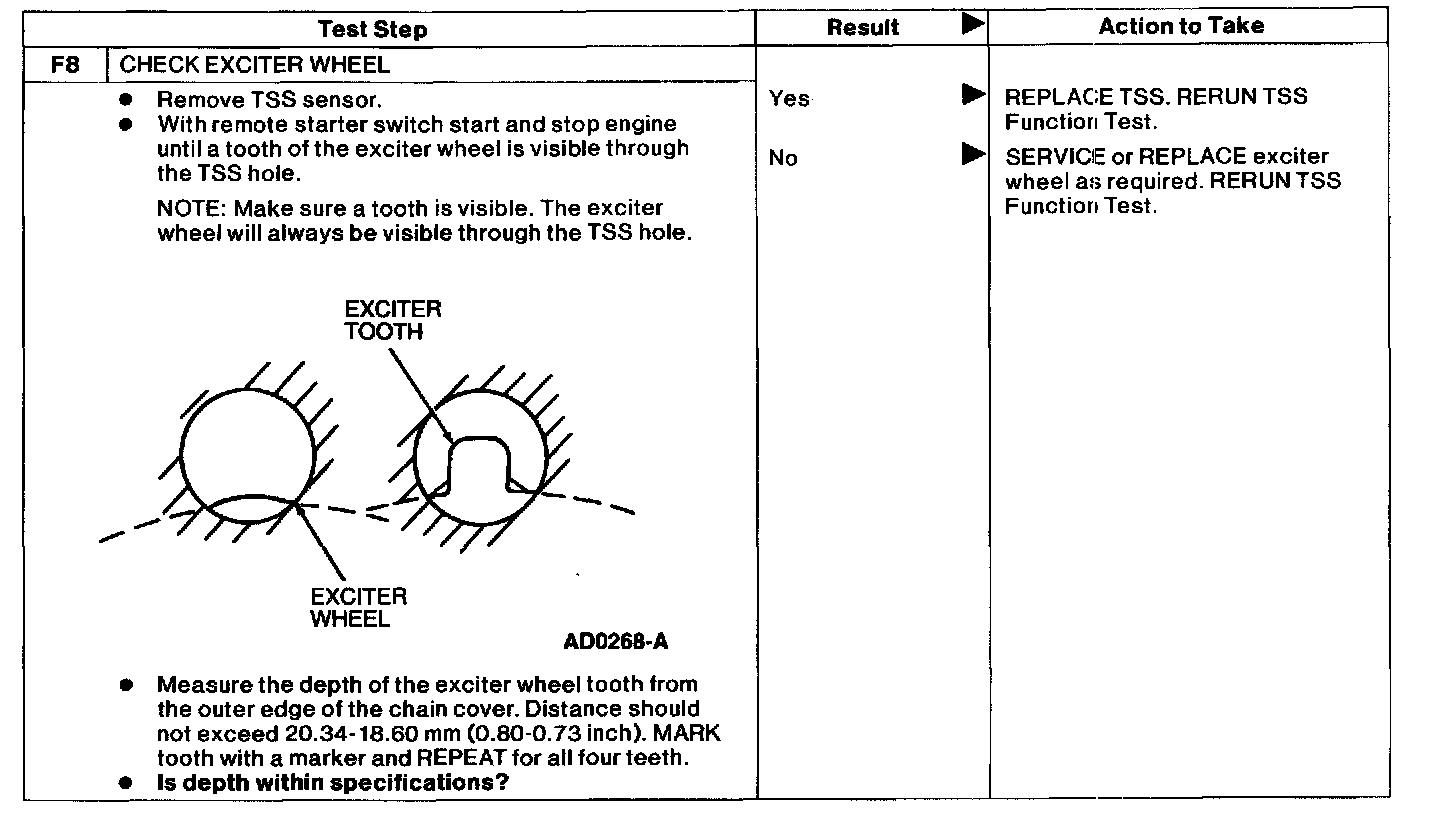

F8:





PINPOINT TEST F:TURBINE SHAFT SPEED(TSS)SENSOR

NOTE: Refer to the Turbine Shaft Speed Sensor Connector illustration.
