AX4N

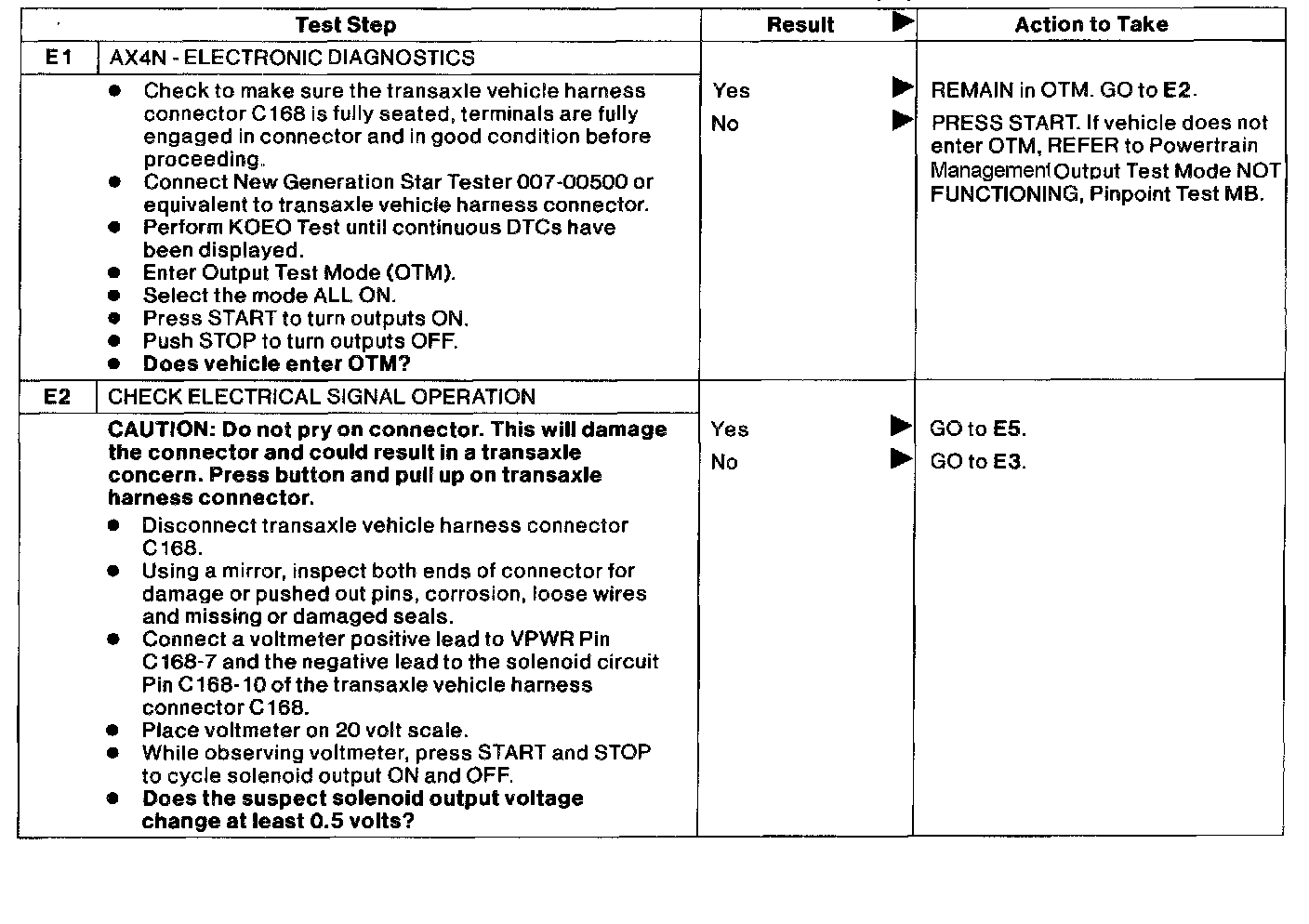

E1 - E2:

E3 - E6:

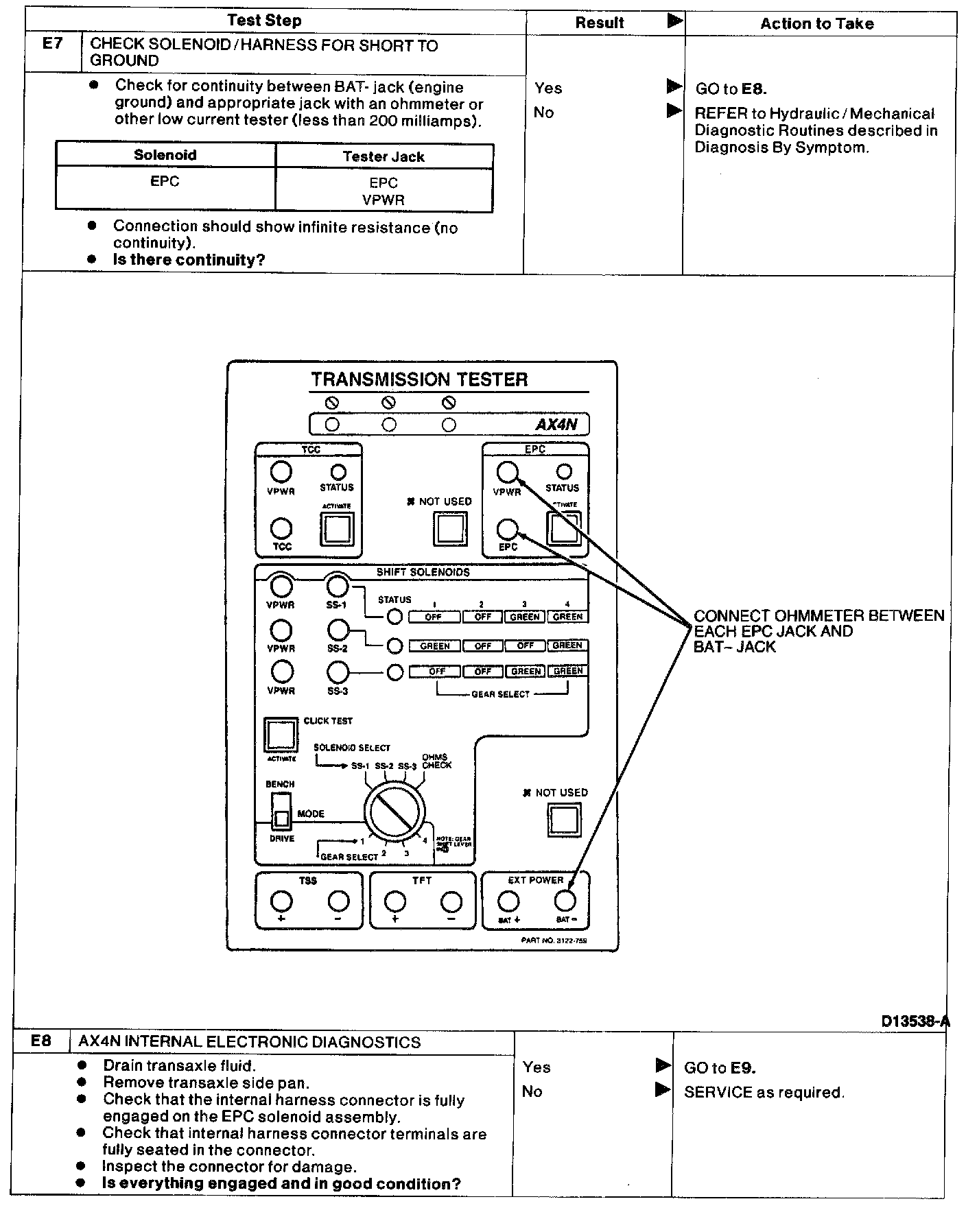

E7 - E8:

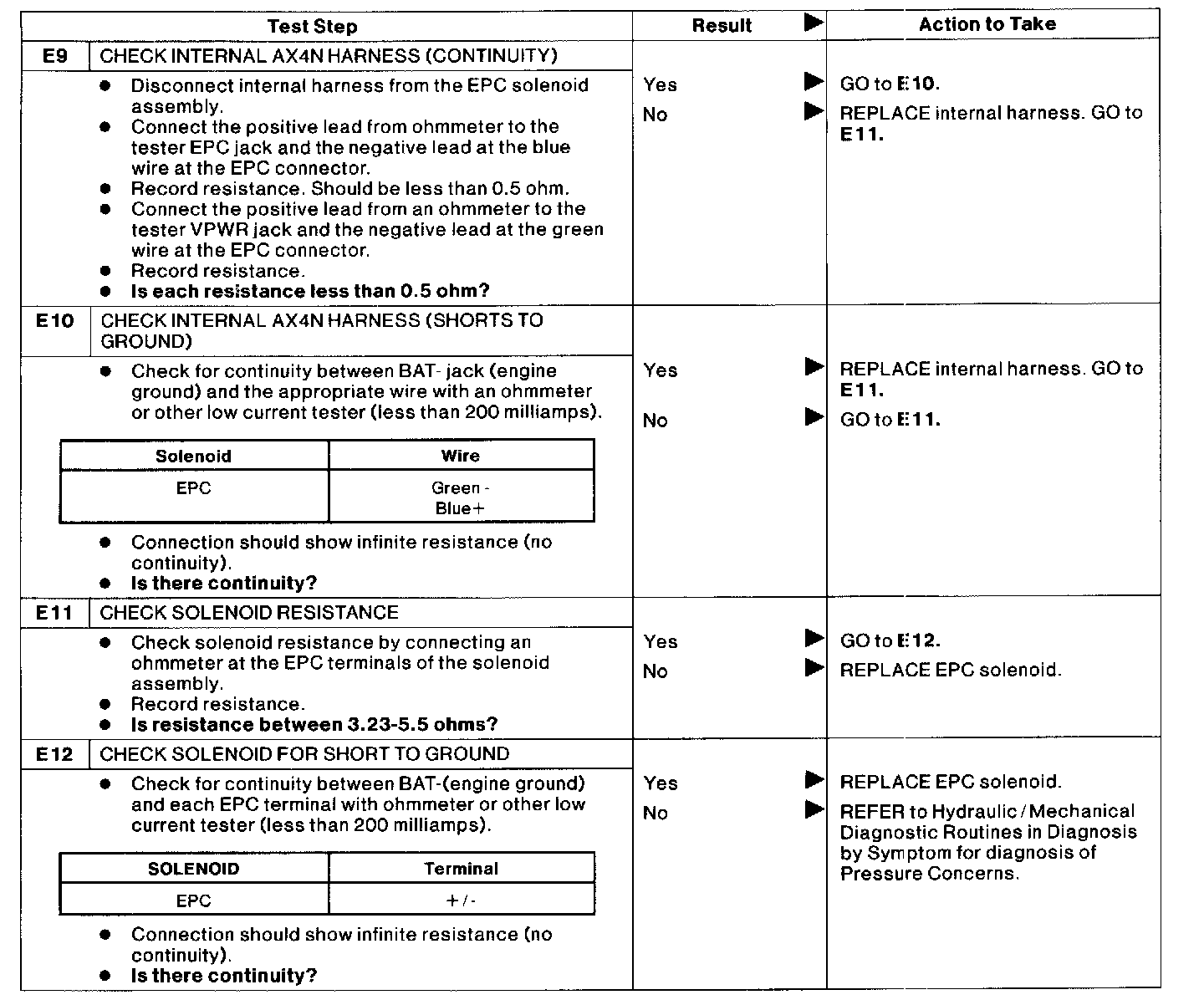

E9 - E12:

PINPOINT TEST E: ELECTRONIC PRESSURE CONTROL (EPC) SOLENOID

NOTE: Refer to the Transaxle Internal Harness illustration.

NOTE: Refer to the Transaxle Harness Connector illustration.
