AX4S

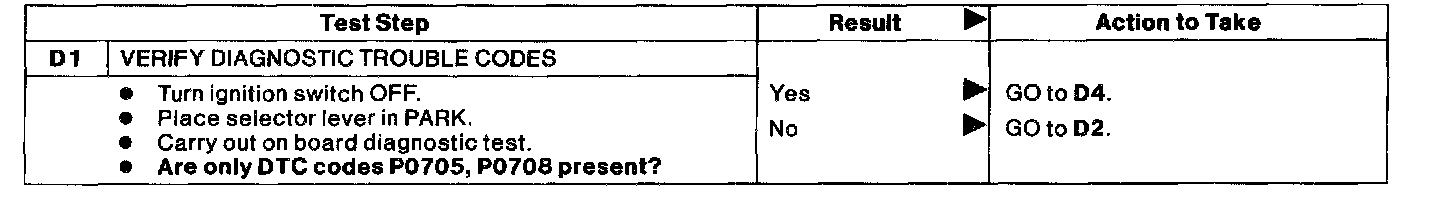

D1:

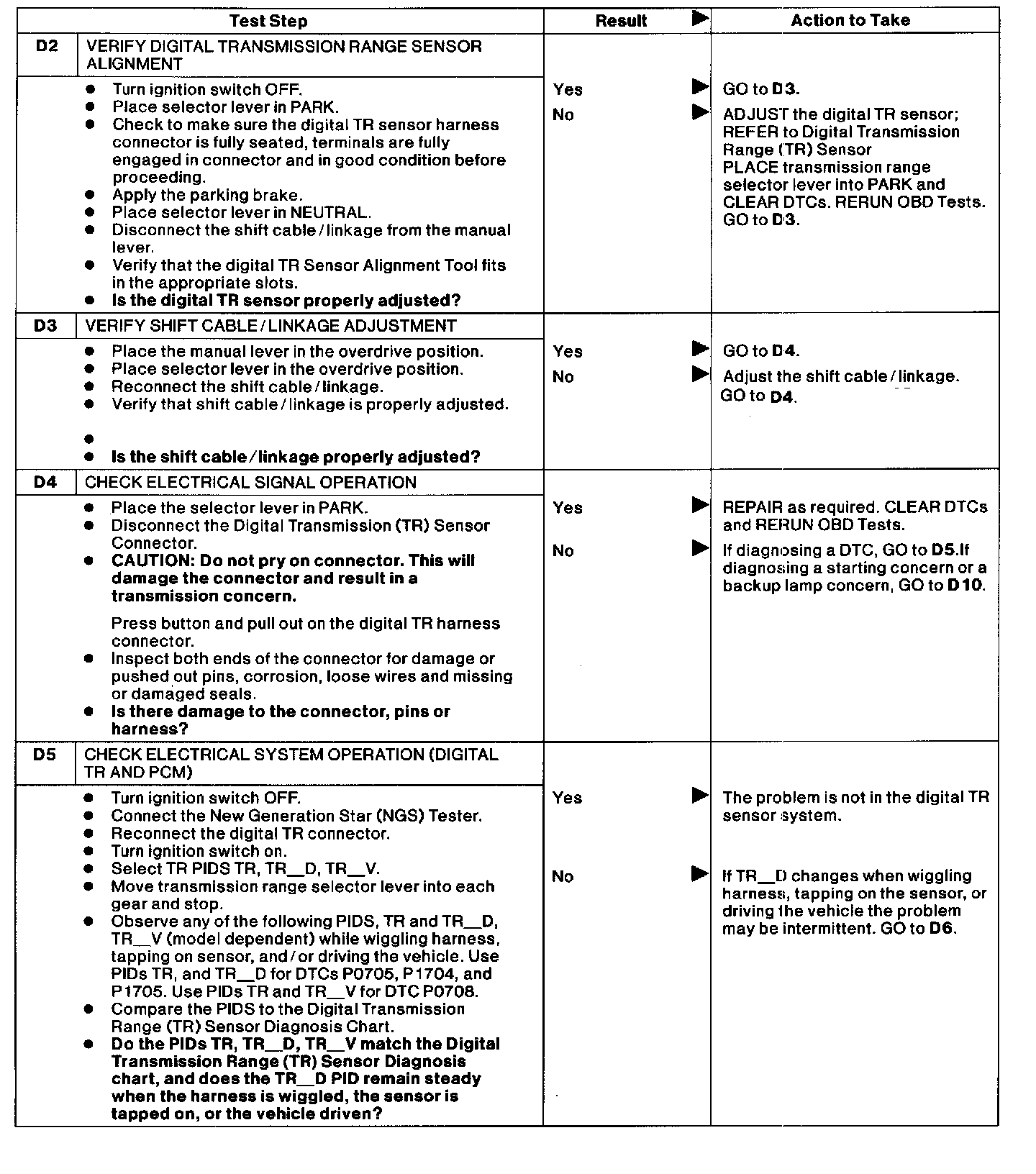

D2 - D5:

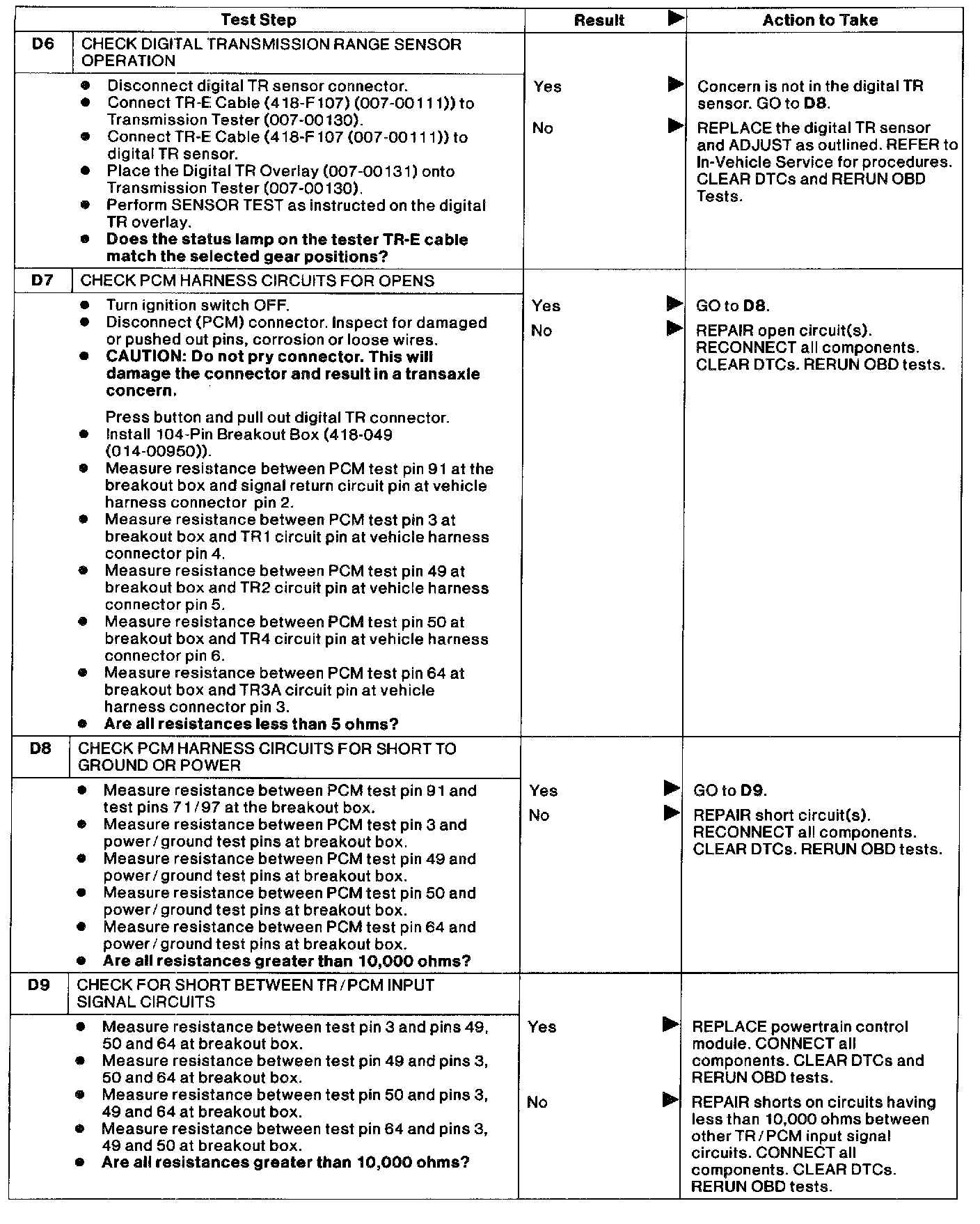

D6 - D9:

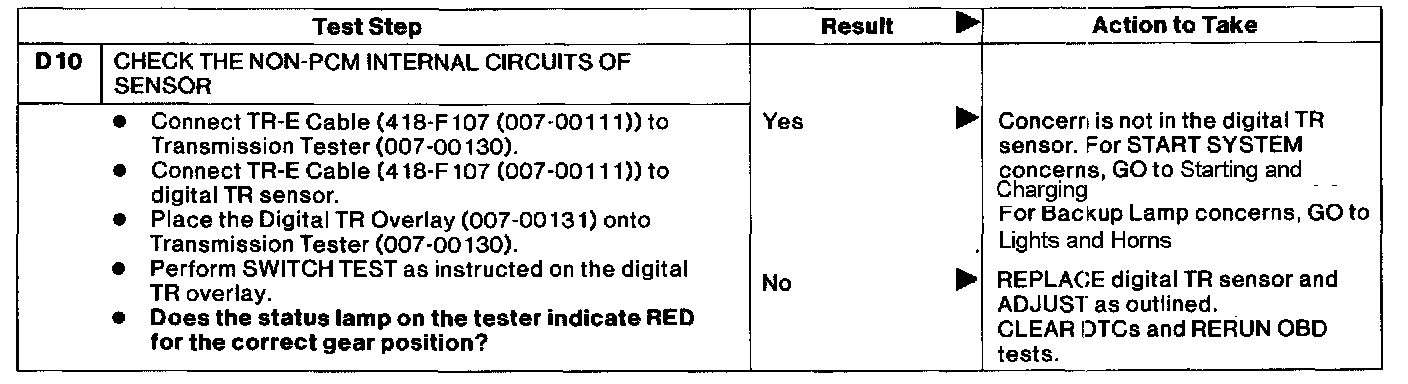

D10:

PINPOINT TEST D: DIGITAL TR/TR SENSOR

NOTE: Refer to the Transmission Range (TR) Sensor Connector illustration.

NOTE: Refer to the Digital Transmission Range (TR) Sensor Connector illustration

NOTE: Refer to the Digital Transmission Range (TR) Sensor Diagnostic Chart.
