Crankcase Ventilation Tube

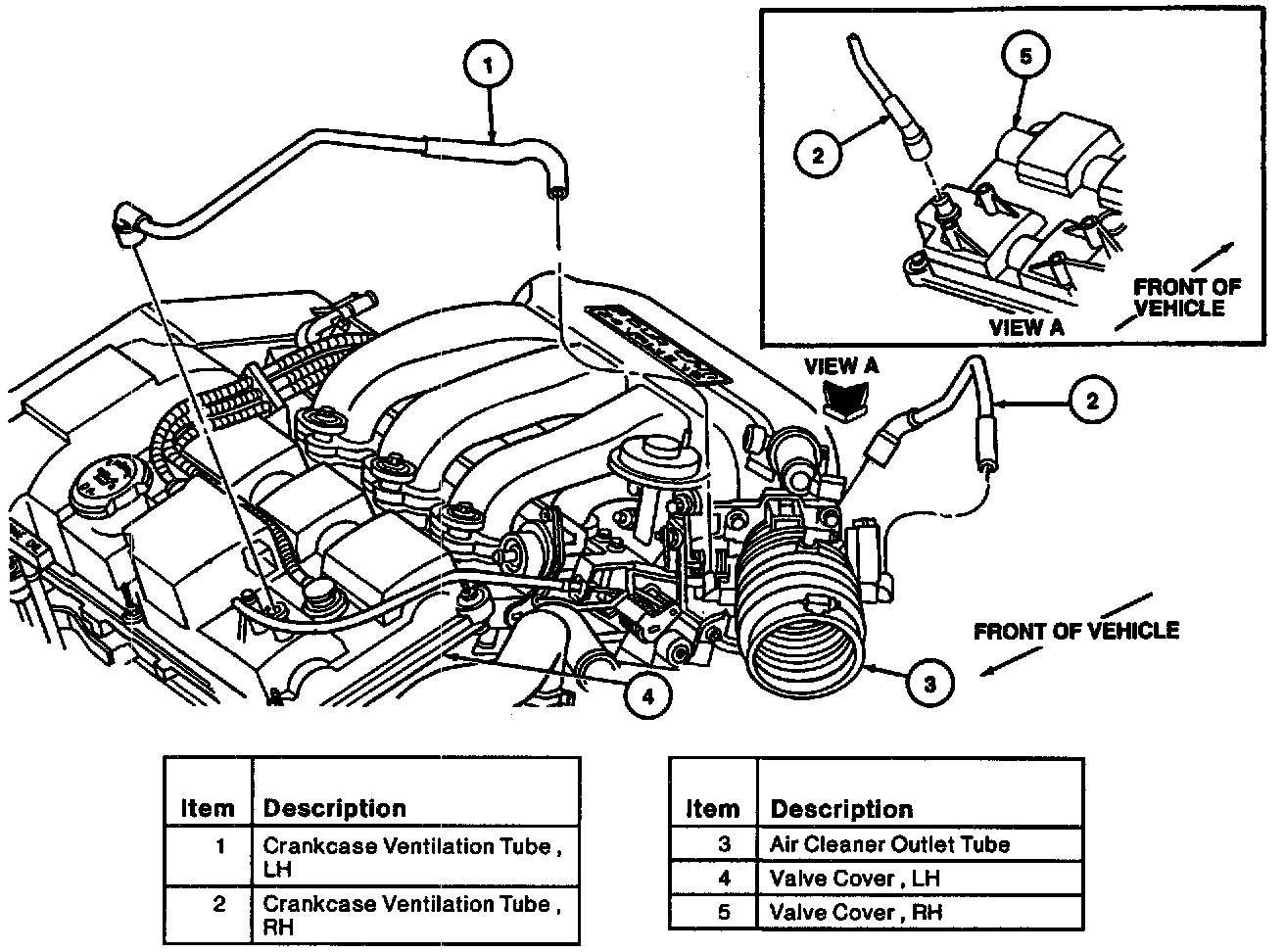

Typical PCV Tubes:

REMOVAL
1. Remove crankcase ventilation tube or crankcase ventilation tubes (depending upon application) from air cleaner outlet tube.
2. Remove crankcase ventilation tube or crankcase ventilation tubes from LH and/or RH valve cover (depending upon application).
3. Inspect crankcase ventilation tubes for deterioration. Replace as necessary.

INSTALLATION
1. Follow removal procedure in reverse order.
