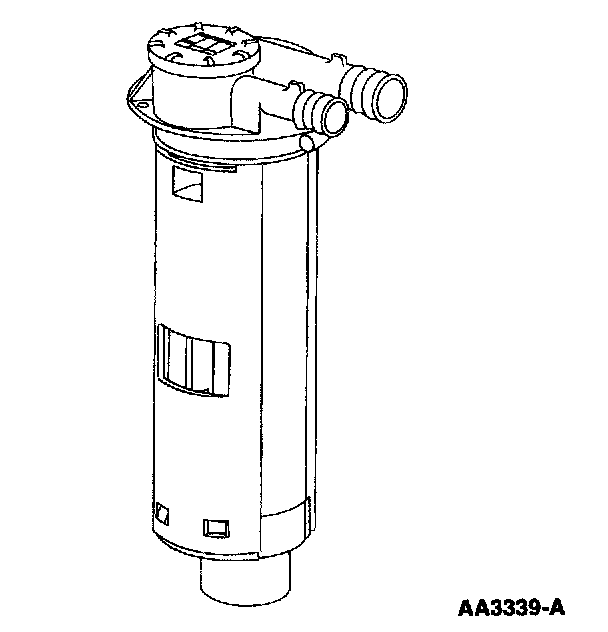

Fuel Vapor Control Valve

The fuel vapor control valve :
- is mounted on the top of the fuel tank.
- is two-staged and has one large orifice and one small orifice.
- limits fuel tank volume during refueling.
- connects to the evaporative emissions canister (EVAP canister).
- is serviced as an assembly with the fuel vapor vent valve(s).
