Tables

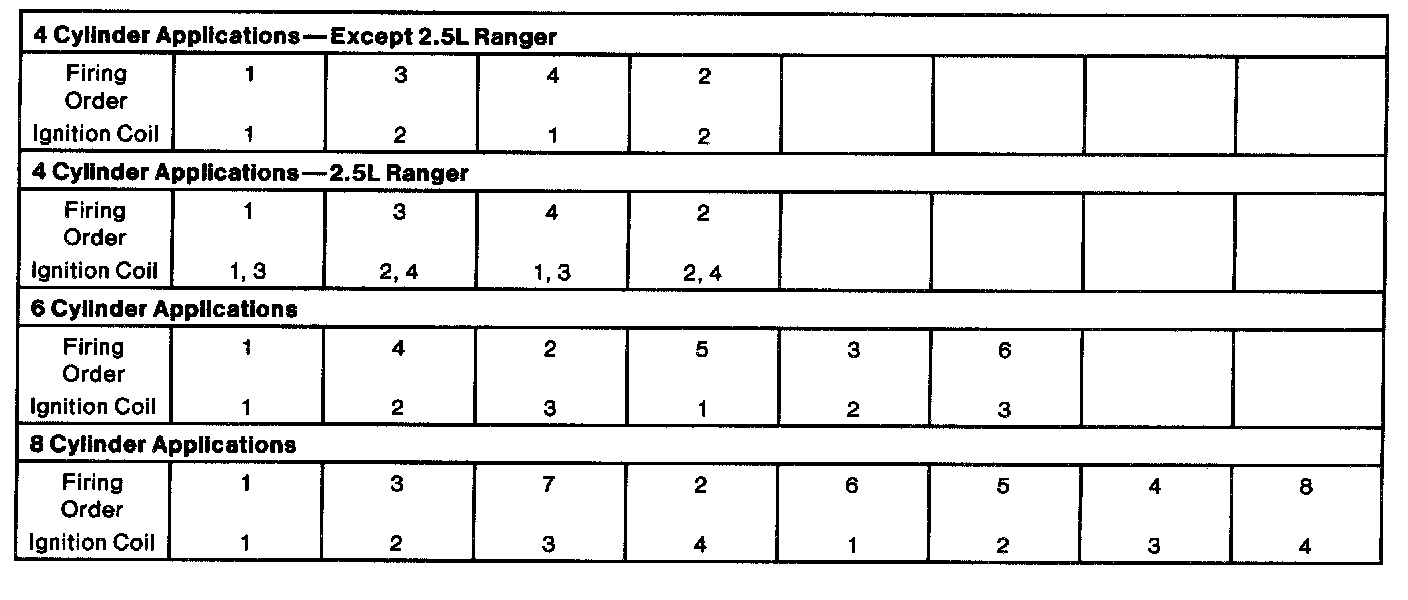

Ignition Coil To Cylinder Correlation And Firing Order


Ignition Coil And Firing Order-Coil On Plug Applications:

8 Cylinder Applications - Except 3.4L Taurus SHO
1 3 7 2 6 5 4 8

8 Cylinder Applications - Taurus SHO
1 5 4 2 6 3 7 8

10 Cylinder Applications
1 6 5 10 2 7 3 8 4 9
