Pinpoint Test Schematics

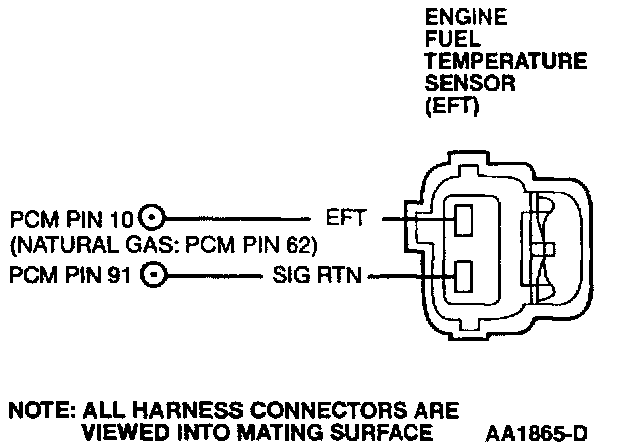

Engine Fuel Temperature Sensor Harness Connector:

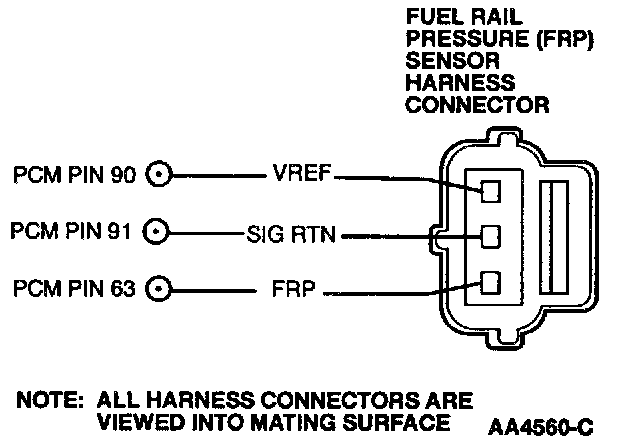

Fuel Rail Pressure Sensor Harness Connector:
