B: No Module Response On Ckt 914 (T/O) or Ckt 915 (PK/LB)
B: No Module Response On Ckt 914 (T/O) or Ckt 915 (PK/LB)

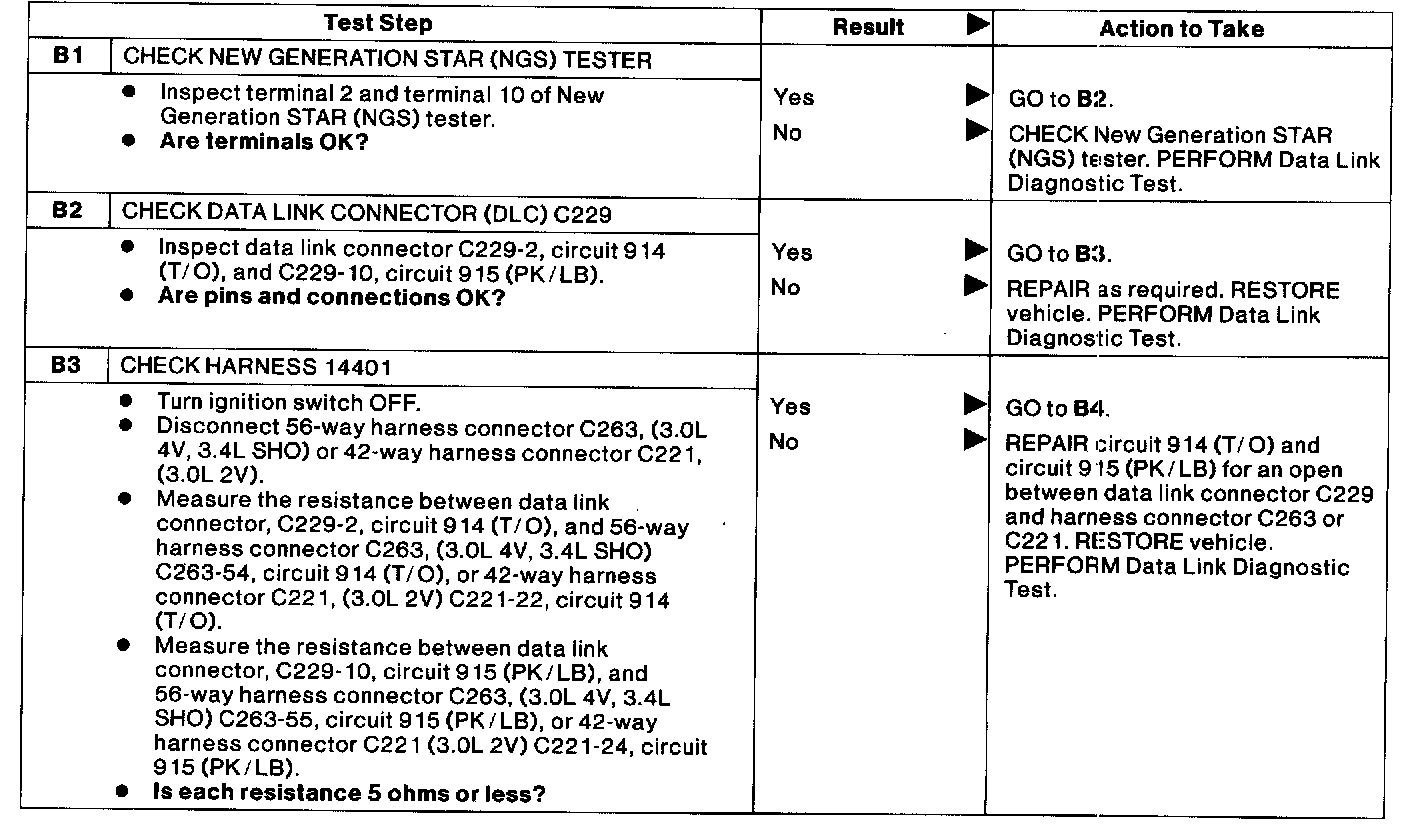

B1 - B3:

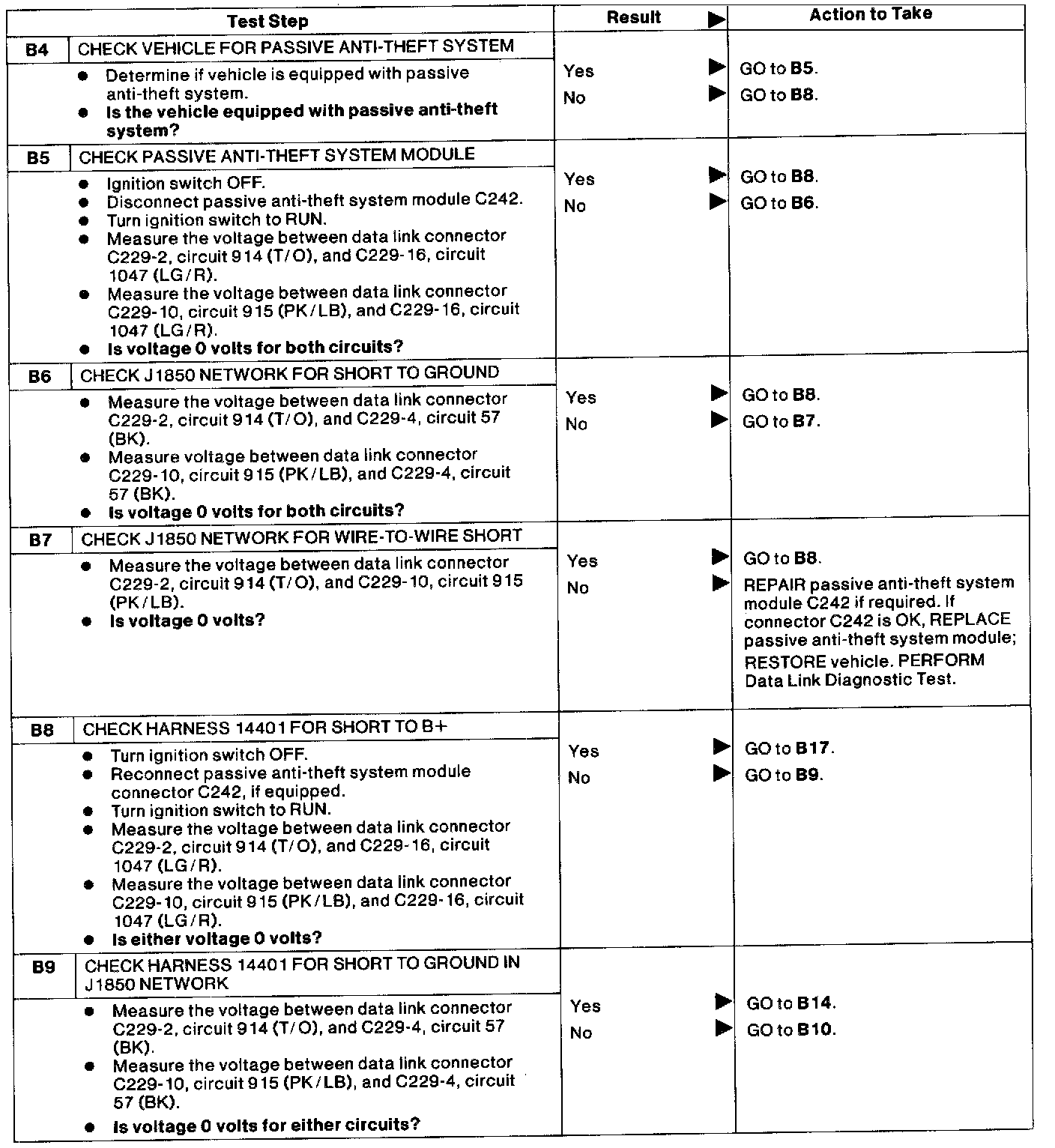

B4 - B9:

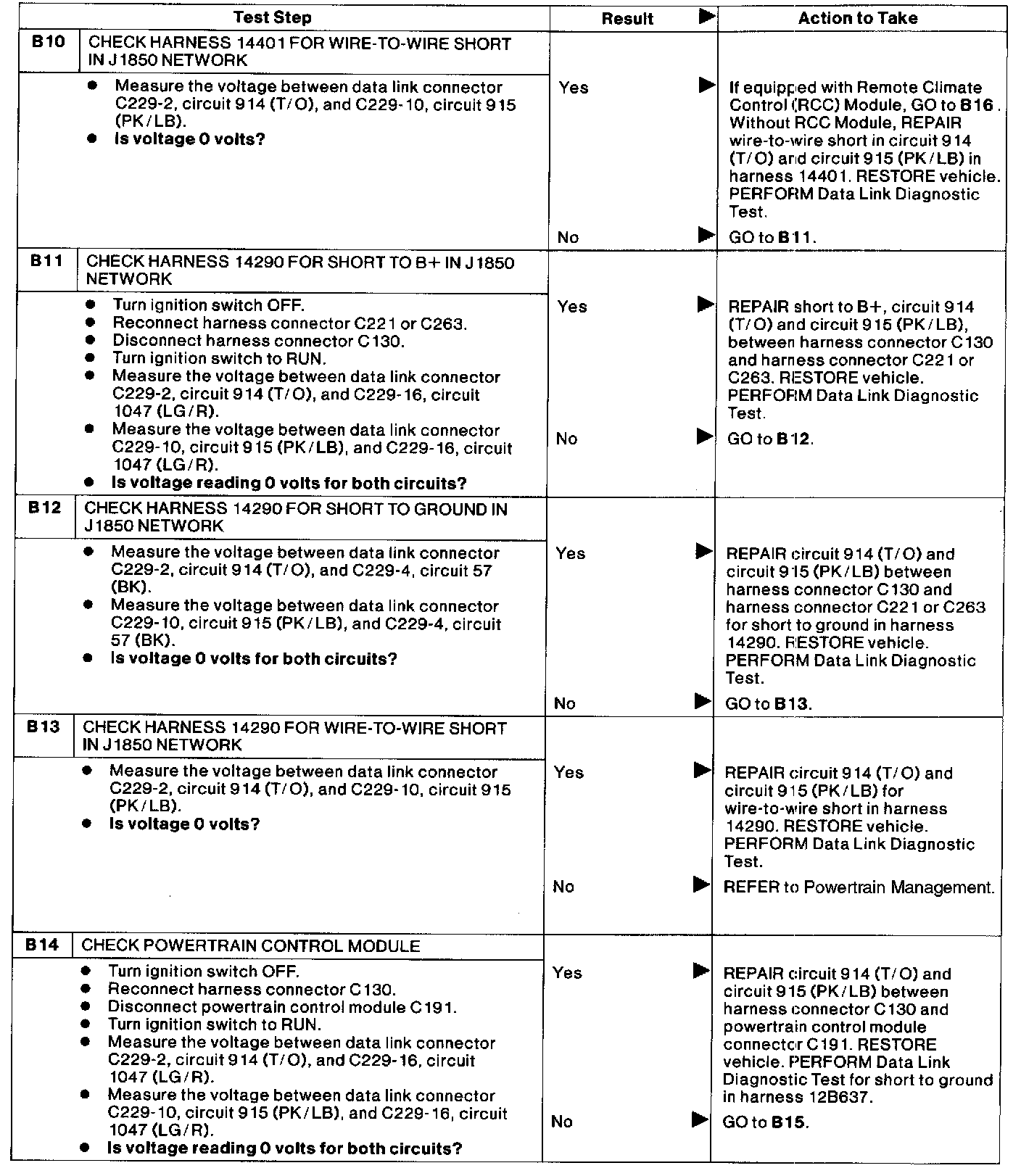

B10 - B14:

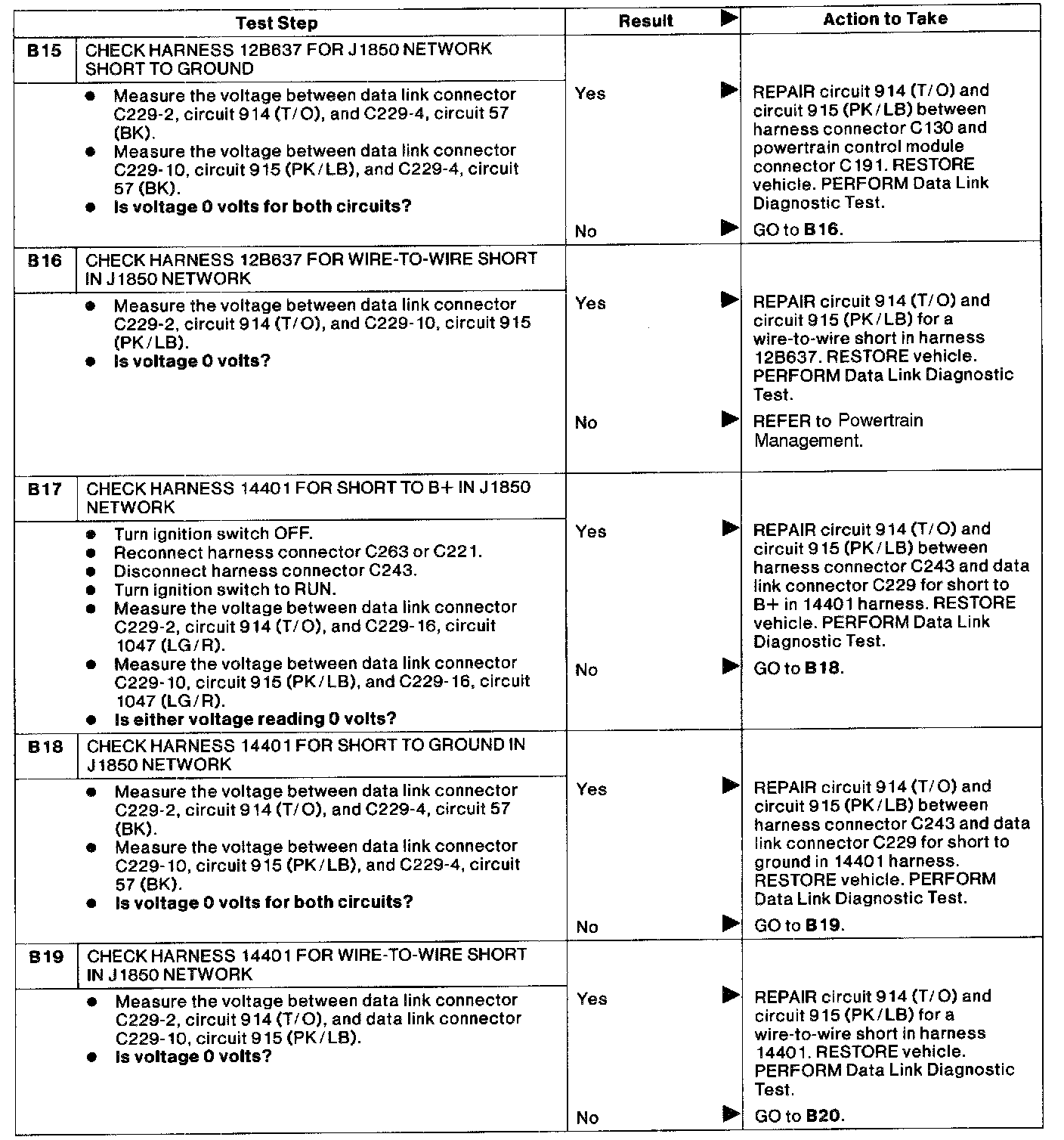

B15 - B19:

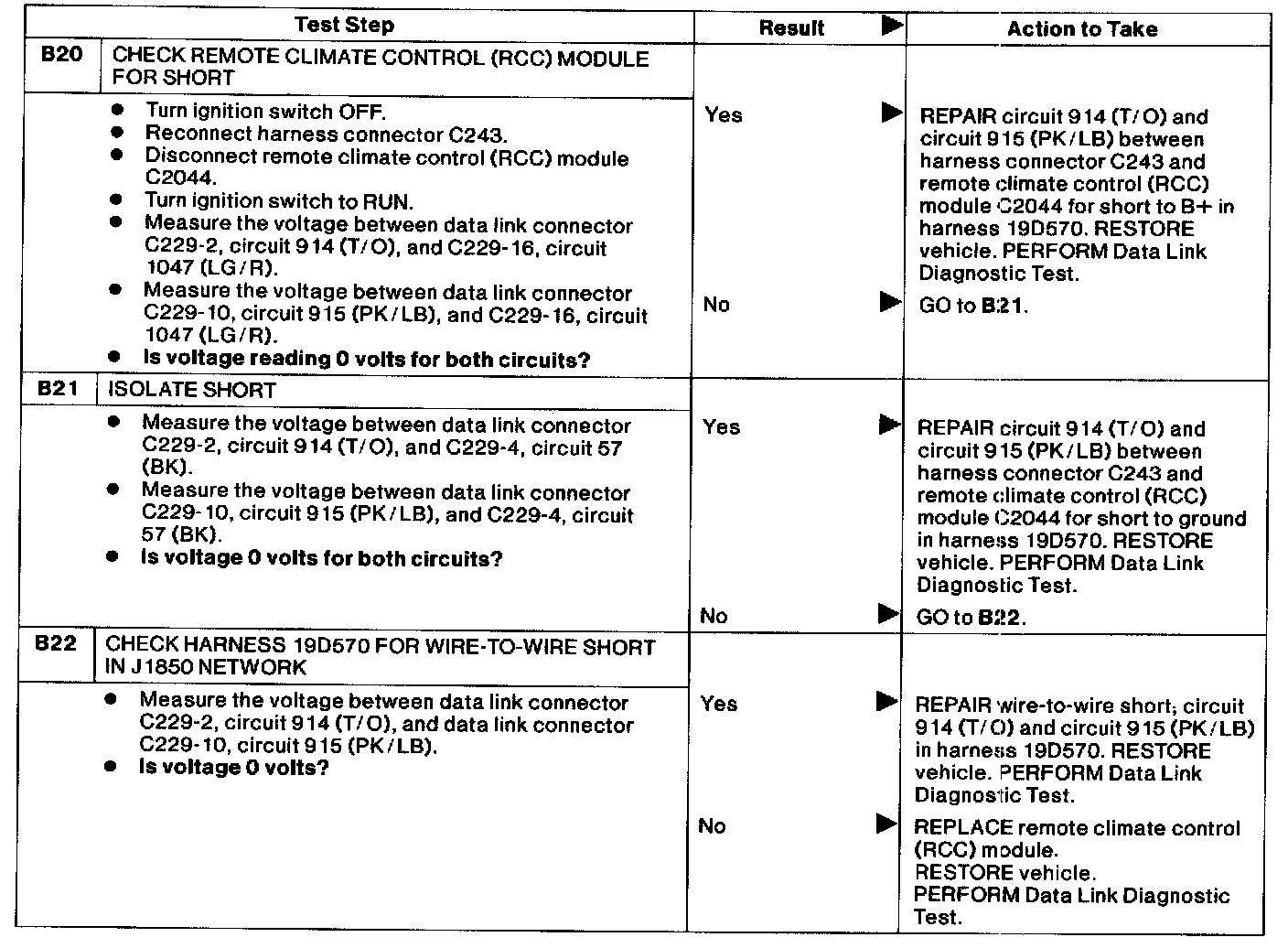

B20 - B22:
