Home >> Mercury >> 1999 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Mini ISO Relay >> Testing and Inspection

Mini ISO Relay: Testing and Inspection

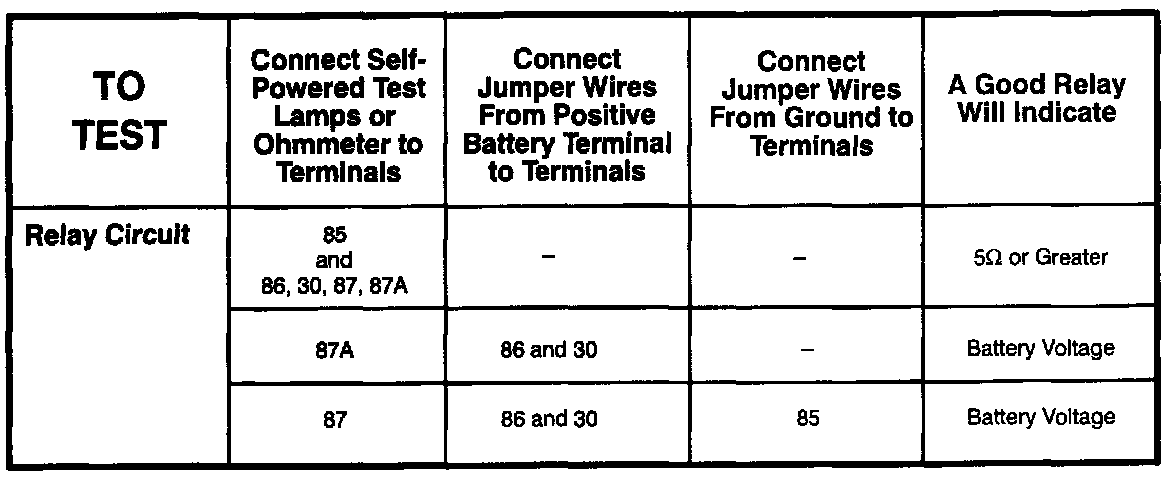

Component Testing Procedure:

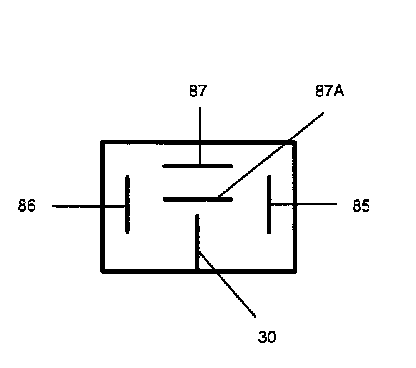

Terminals:

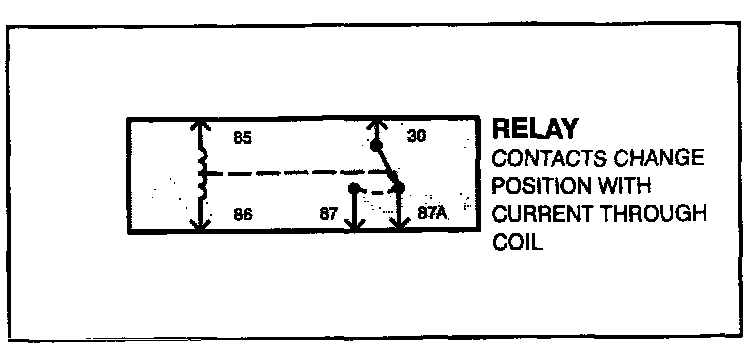

Schematic - Mini ISO Relay:
