Home >> Mercury >> 1999 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> B: Integrated Circuit Display(s) Inoperative Or Erratic

B: Integrated Circuit Display(s) Inoperative Or Erratic

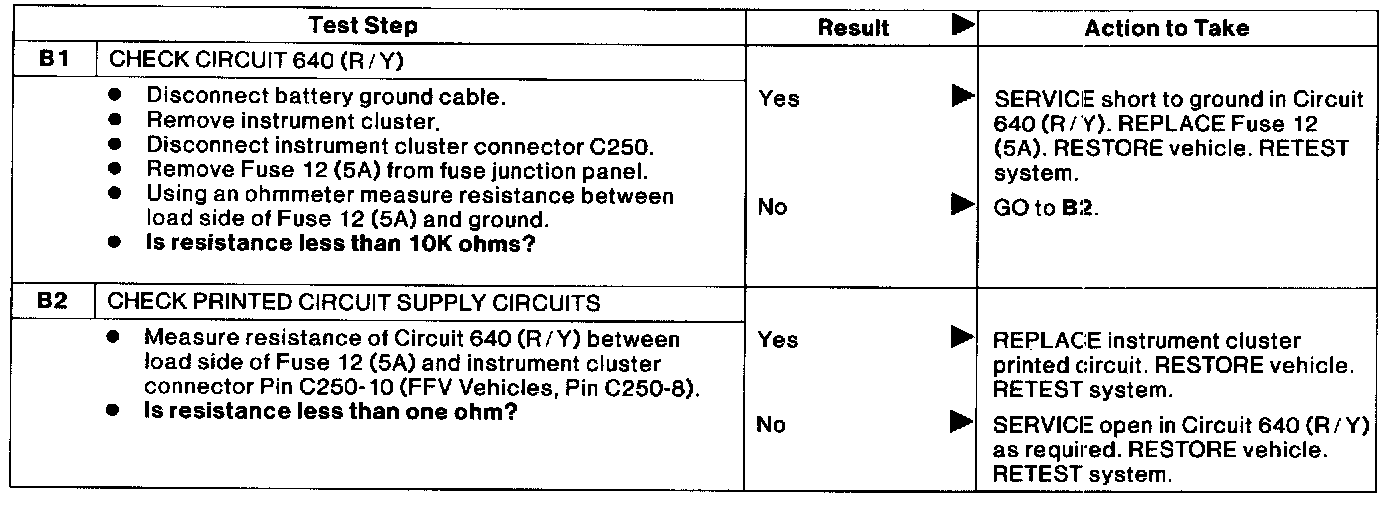

B1 - B2:
