Floor Shift Models

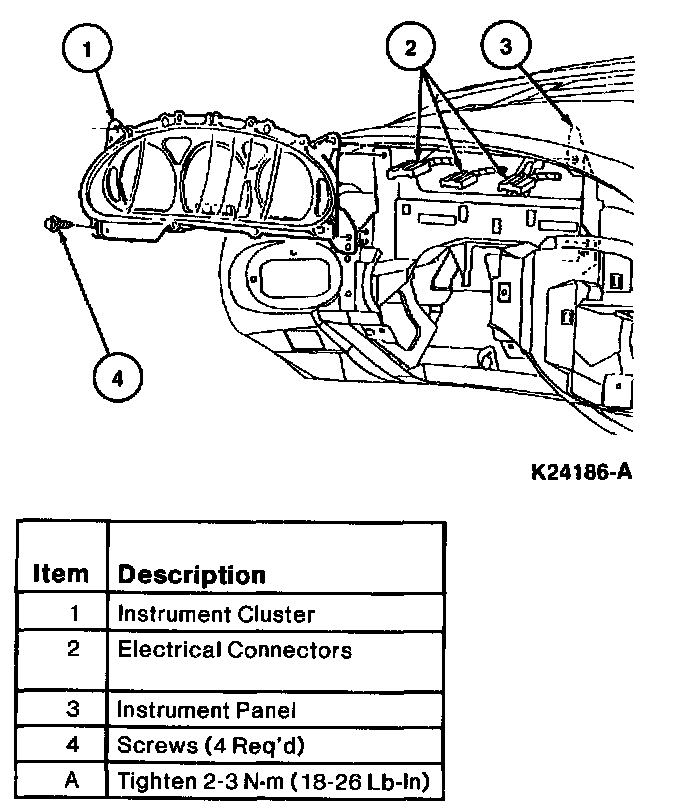

REMOVAL
1. Disconnect battery ground cable.
2. Remove two screws from instrument panel finish panel. Remove instrument panel finish panel from instrument panel.
3. Remove four screws retaining instrument cluster to instrument panel.
4. Pull top of instrument cluster toward steering wheel.
5. Tilt steering wheel to lowest position to allow clearance to remove instrument cluster.
6. Reach behind instrument cluster and disconnect three electrical connectors.
7. Remove instrument cluster from instrument panel.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten screws retaining instrument cluster to 2-3 N.m (18-26 Lb-In).
