Instrument Cluster - Printed Circuit

REMOVAL
1. Remove instrument cluster.
2. Remove all miniature bulbs from instrument cluster.
3. Remove instrument cluster main lens.
4. Remove instrument cluster mask and transmission range indicator.
5. Carefully remove speedometer, tachometer and fuel gauge/temperature gauge.
6. Remove low fuel level warning switch.
7. Remove indicator terminals retaining speedometer, tachometer and fuel gauge/temperature gauge from instrument cluster.

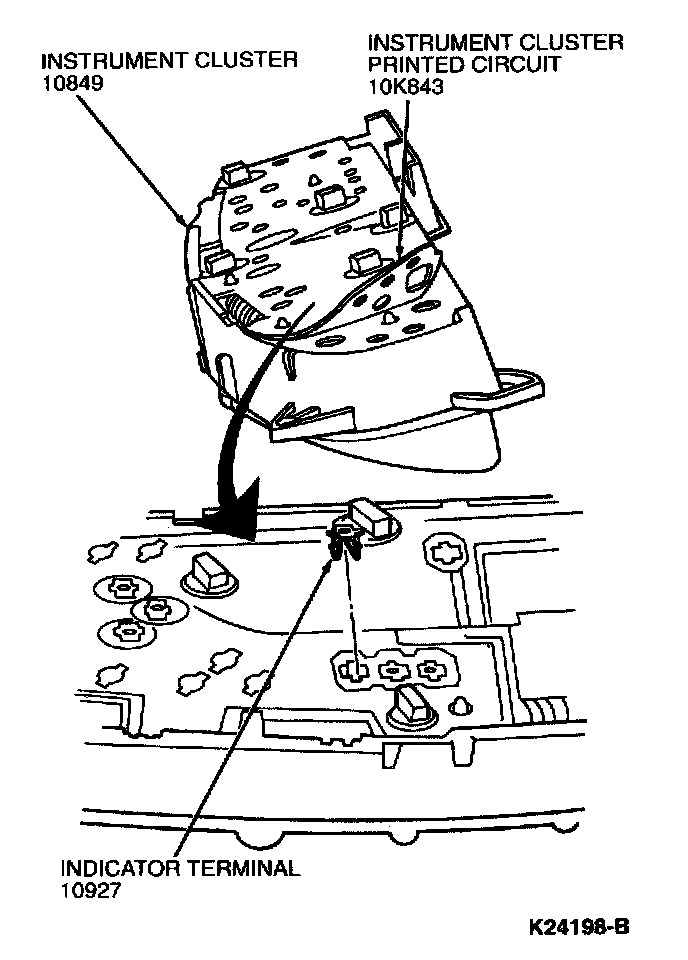

8. Carefully remove instrument cluster printed circuit from instrument cluster.

INSTALLATION
1. Follow removal procedure in reverse order.
