Instrument Cluster - Finish Panel

REMOVAL

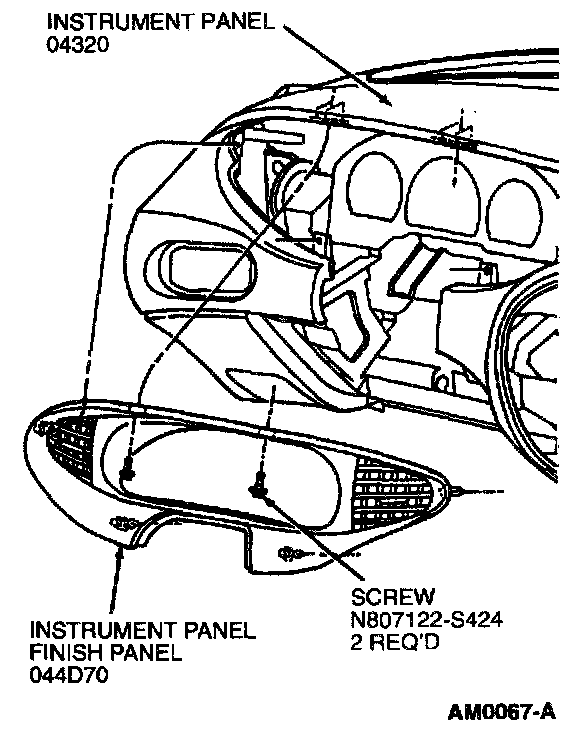

1. On Taurus LX and Sable LS, remove two screws retaining cluster opening instrument panel finish panel to instrument panel. Carefully disengage two lower and two end clips by pulling instrument panel finish panel straight out of instrument panel.







2. On Taurus GL and Sable GS, remove four screws retaining instrument panel finish panel to instrument panel. Disengage two end clips by pulling instrument panel cluster opening instrument panel finish panel straight out of instrument panel.

INSTALLATION
1. Follow removal procedure in reverse order.
