Integrated Control Panel
SPECIAL SERVICE TOOL(S) REQUIREDDescription Tool Number
Radio Removing Tool 415-001 (T87P-19061-A)
REMOVAL
1. Disconnect battery ground cable.
2. Install Radio Removing Tool 415-001 (T87P-19061-A) into integrated control panel face plate. Push tools in approximately 38 mm (1.5 Inch) to release retaining clips.
CAUTION: Do not use excessive force when installing radio removing tool, as this will damage retaining clips and make integrated control panel removal difficult.

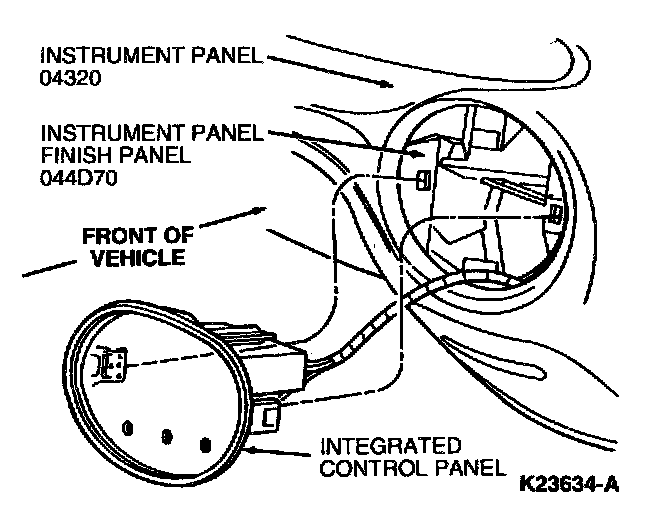

3. Apply a light spreading force on tools and pull integrated control panel out of instrument panel.

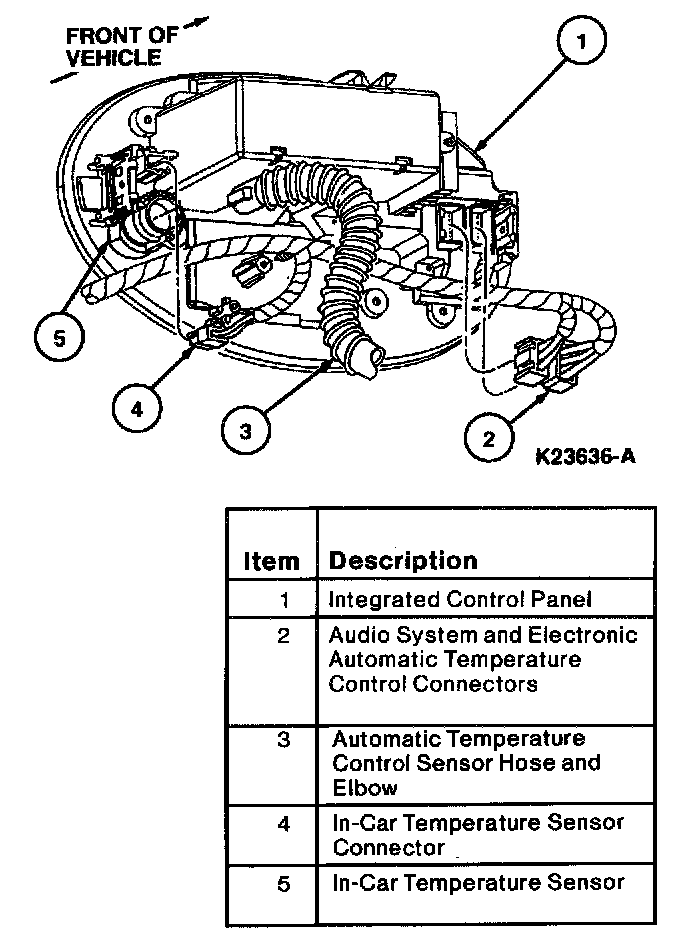

4. Disconnect wiring connectors and automatic temperature control sensor hose and elbow.
INSTALLATION
1. Connect wiring connectors and automatic temperature control sensor hose and elbow to integrated control panel.
2. Slide integrated control panel into instrument panel, making sure rear support is engaged on upper support rail.
3. Push integrated control panel inward until retaining clips are fully engaged.
4. Connect battery ground cable.
5. Check for proper operation of climate controls, radio, cassette and digital compact disc player, if equipped.
