Compressor Fitting HVAC: Service and Repair

SPECIAL SERVICE TOOL(S) REQUIRED

Description Tool Number
Spring Lock Coupling Disconnect Tool (3/4 Inch) 412-040 (T85L-19623-A)

REMOVAL
1. Discharge A/C system.
2. Remove upper radiator support.

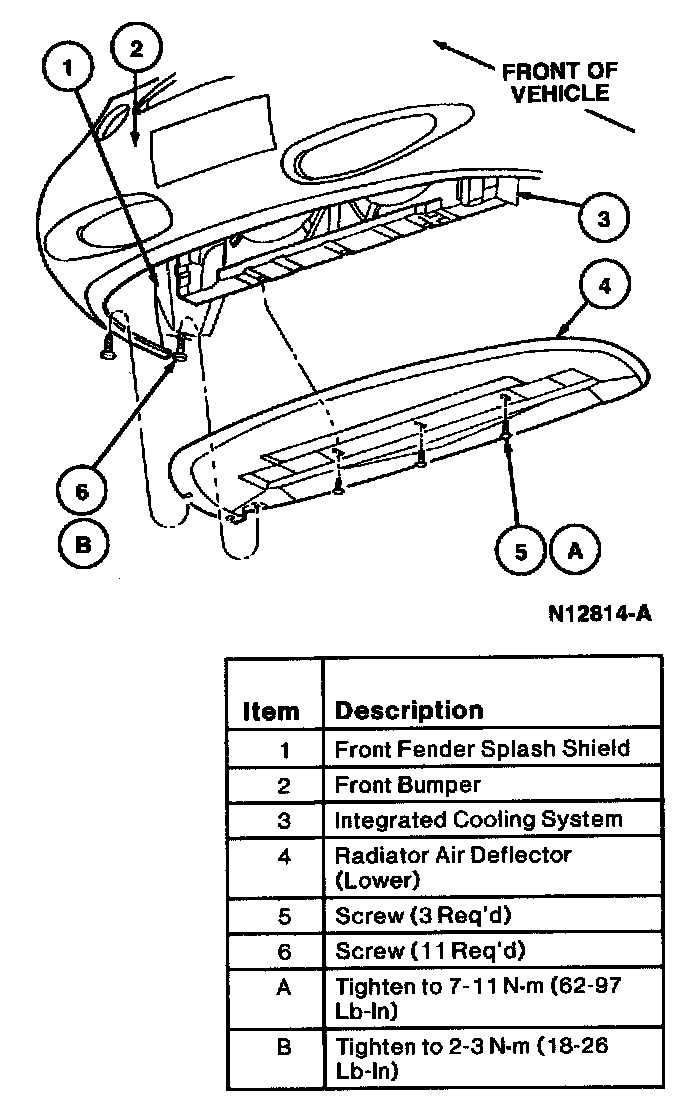

3. Remove cooling fan assembly.
4. Disconnect A/C manifold and tube from suction accumulator/drier using Spring Lock Coupling Disconnect Tool (3/4 inch) 412-040 (T85L-19623-A). Cap suction accumulator/drier to prevent entrance of dirt and moisture.

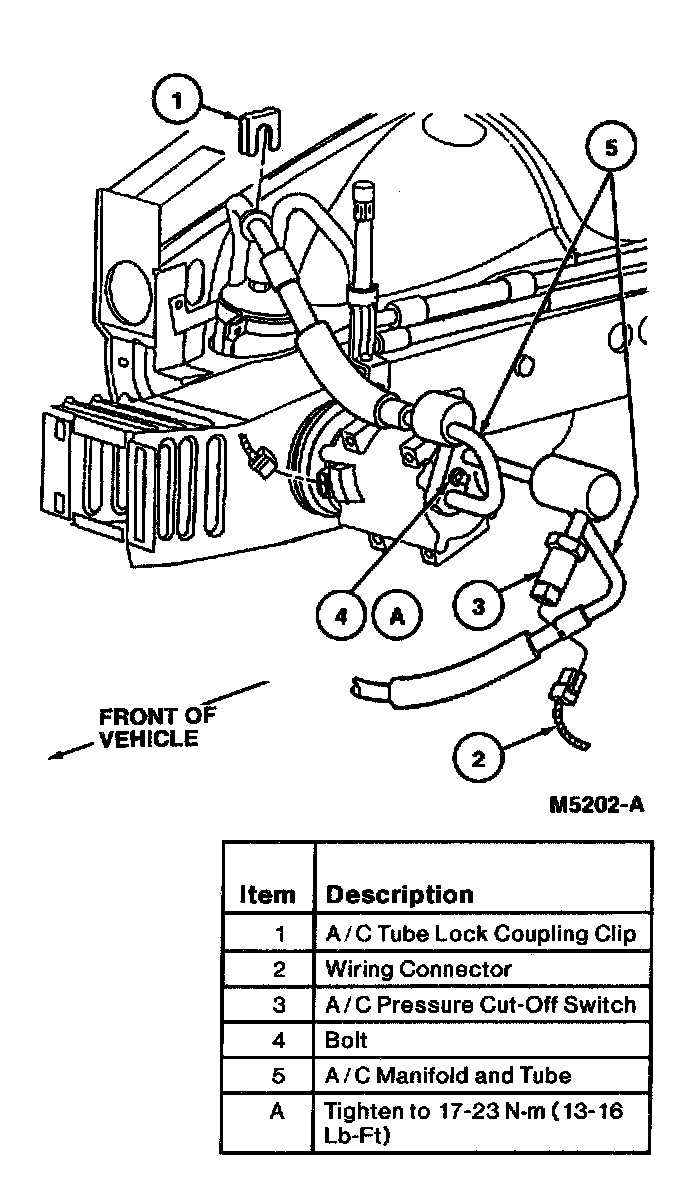

5. Loosen A/C manifold retaining bolt and remove A/C manifold and tube from the A/C compressor.
6. Remove electrical connector from A/C pressure cut-off switch.

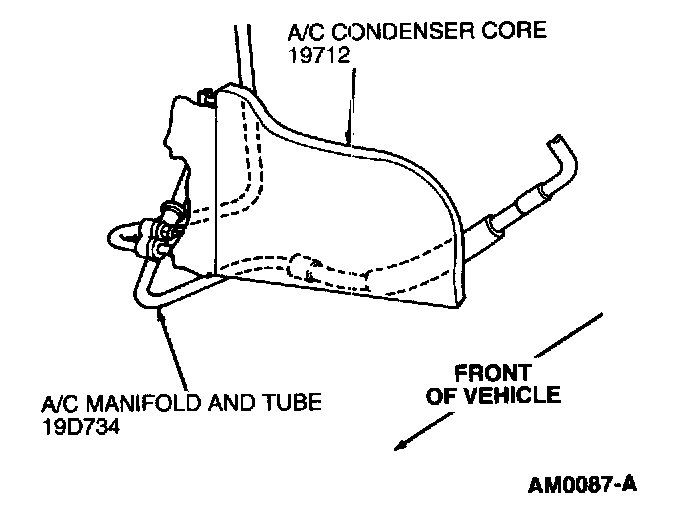

7. Disconnect A/C manifold and tube from A/C condenser core inlet tube. Plug the lines to prevent dirt and excessive moisture from entering.
8. Remove the water inlet tube.
9. Remove 4 radiator retaining bolts. Position forward out of the way.
10. Lower vehicle.
11. Remove the A/C manifold and tube from vehicle.
12. Remove A/C pressure cut-off switch from A/C manifold and tube.

INSTALLATION
1. Install A/C pressure cut-off switch to A/C manifold and tube.
2. With protective caps installed, position the A/C manifold and tube in vehicle.
3. Connect A/C manifold and tube to A/C condenser core inlet tube using new O-ring seals lubricated with clean PAG Compressor Oil Motorcraft YN-12c F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
4. Connect A/C manifold and tube to suction accumulator/drier using new O-ring seals lubricated with clean PAG Compressor Oil Motorcraft YN-12c F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
5. Install A/C pressure cut-off switch electrical connector.
6. Lubricate new O-ring seals with clean refrigerant oil and position them in O-ring seal grooves of A/C manifold and tube.
7. Apply Pipe Sealant with Teflon (R) D8AZ-19554-A or equivalent meeting Ford specifications WSK-M2G350-A2 to threads of manifold retaining bolt.
8. Position A/C manifold and tube with O-ring seals to A/C compressor. Install retaining bolt and tighten to 17-23 N.m (13-16 Lb-Ft).
9. Install water inlet tube.
10. Reinstall radiator assembly.
11. Leak-test, evacuate and charge system. Observe all safety precautions.
