Valve, Flat-Tappet Wear

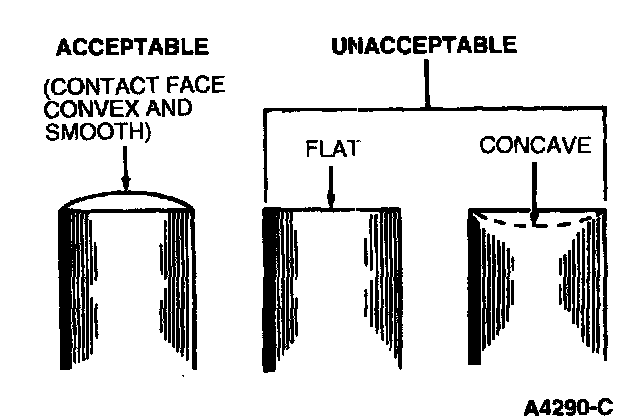

Inspect flat valve tappet for flat or concave spots or scoring. If contact face is not convex and smooth, check camshaft lobes for proper height or wear. Replace as required.
