Valve Guide Inner Diameter

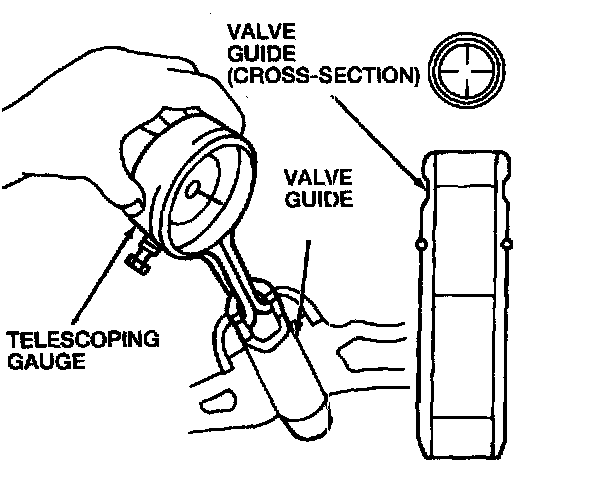

Measure the inner diameter of the valve guides at the points shown.





If valve guide is not within specification, ream the valve guide and install a valve with an oversize stem.
