Runout

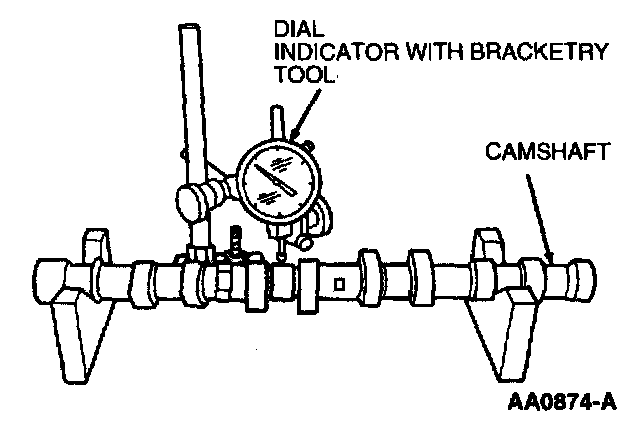

Inspect the camshaft runout by setting the No. 1 and No. 4 journals on V-blocks and using Dial Indicator with Bracketry 100-002 (TOOL-4201-C) or equivalent.
If the maximum runout of the camshaft is not within specifications, replace the camshaft.
