Diameter

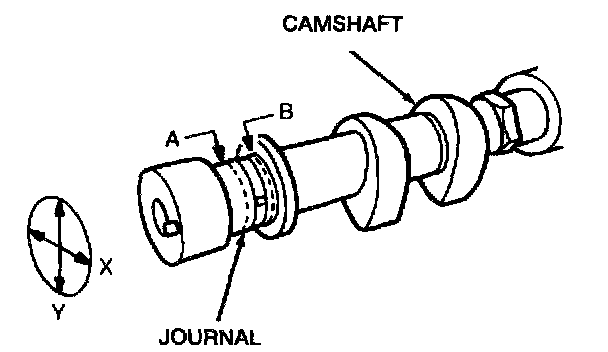

Measure the journal diameters in the X and Y directions at points A and B as shown.
Replace the camshaft if not within specifications.
