Camshaft End Play

1. Remove valve covers.

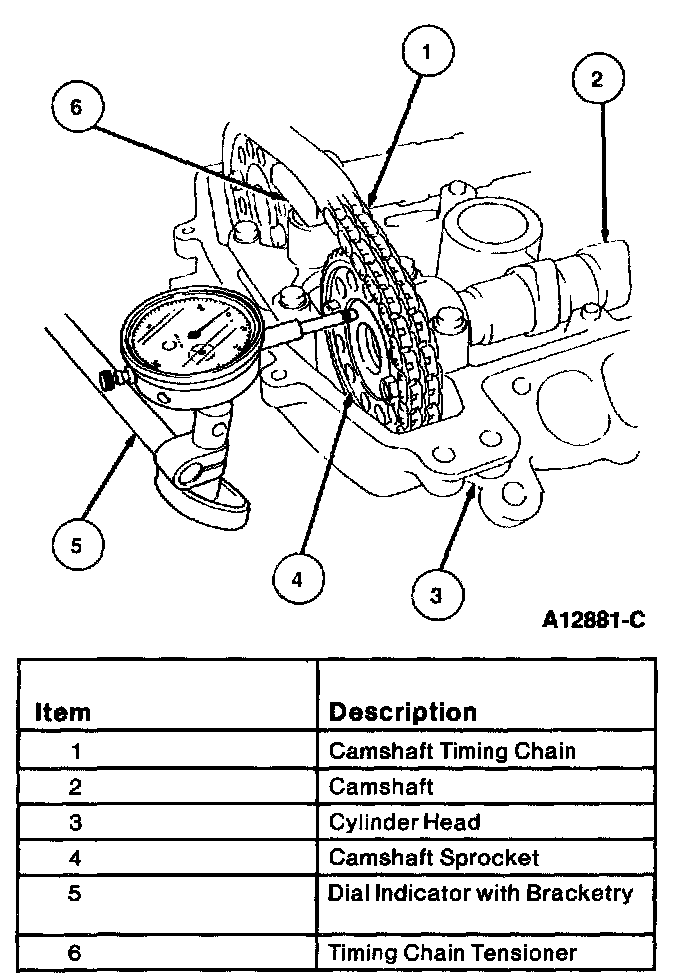

2. Using Dial Indicator with Bracketry 100-002 (TOOL-4201-C) or equivalent, measure end play while moving camshaft back and forth. If the end play is greater than 0.30 mm (0.0118 inch), replace camshaft and/or cylinder head.
3. Install valve covers. Tighten bolts to specification in sequence.
