Pin Bore Diameter
Pin Bore Diameter

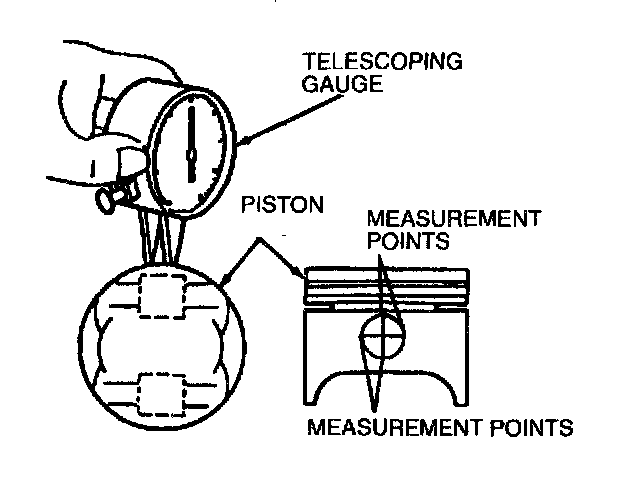

Measure each
piston pin
hole diameter at the four points shown.
Replace
piston
that is not within specifications.
