Front Crankshaft Seal: Service and Repair

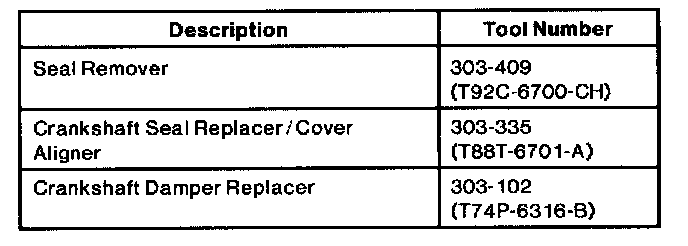

Special Tools:

Removal
1. Remove accessory drive crankshaft pulley and crankshaft damper.
2. Using Seal Remover 303-409 (T92C-6700-CH), remove crankshaft front seal from engine front cover.

Installation
1. Lubricate crankshaft front oil seal sealing surfaces with Engine Assembly Lubricant D9AZ-19579-D or equivalent meeting Ford specification ESR-M99C80-A.
2. Using Crankshaft Seal Replacer /Cover Aligner 303-335 (T88T-6701-A) and Crankshaft Damper Replacer 303-102 (T741-6316-13), install crankshaft front seal into engine front cover.
3. Install crankshaft damper and crankshaft pulley.
