Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Removal
1. Raise vehicle on hoist.
2. Remove bolt retaining waiter thermostat housing bracket to the A/C compressor brace tube to LH cylinder head.
3. Lower vehicle.
4. Remove radiator lower hose tube retaining bolt from the LH cylinder head and position the lower radiator hose tube out of the way.
5. Remove oil level indicator tube retaining bolt from LH cylinder head.

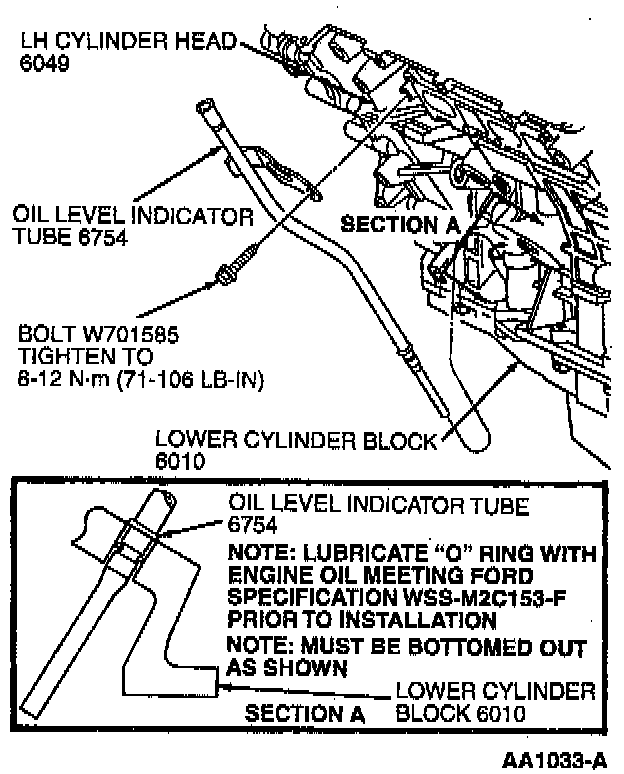

6. Using a twisting motion, remove oil level indicator tube from lower cylinder block.

Installation
1. Follow removal procedure in reverse order.
