Home >> Mercury >> 1999 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Drive Belts, Mounts, Brackets and Accessories >> Drive Belt Tensioner >> Service and Repair

Drive Belt Tensioner: Service and Repair

Removal
1. Remove serpentine drive belt.

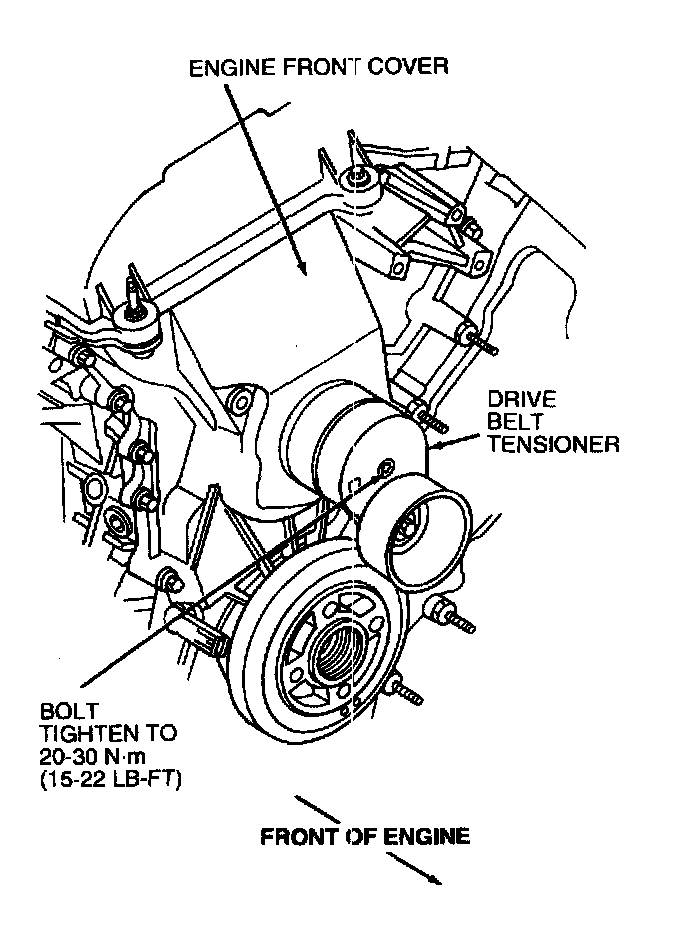

2. Remove drive belt tensioner retaining bolt and drive belt tensioner from engine front cover.

Installation
1. Follow the removal procedure in reverse order.





2. Tighten drive belt tensioner retaining bolt to 20-30 Nm (15-22 ft. lbs.).
