System Diagram

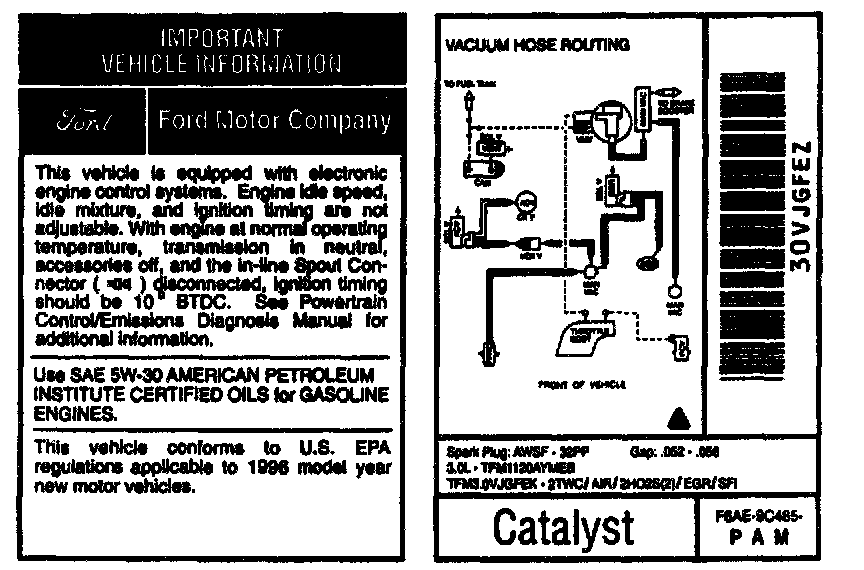

Vacuum hoses on the engine use a color stripe to aid in hose routing checks. The stripe will usually be the same color as on the Vehicle Emission Control Information (VECI) decal, but the correct vacuum hose routing must be verified by using the correct component connections shown on the VECI decal.
