Home >> Mercury >> 1999 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Diagrams >> Connectors

Connectors

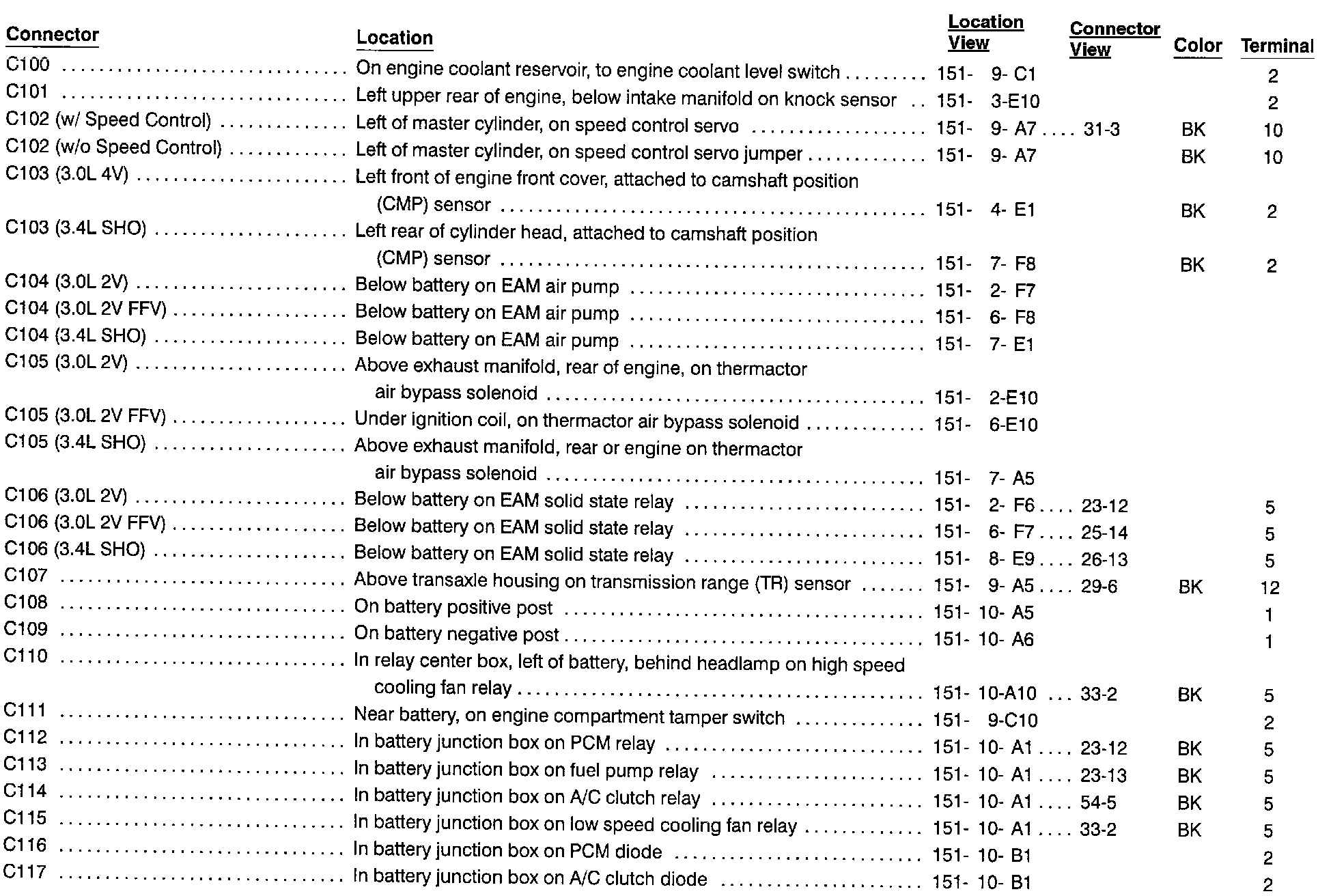

C100-C117:

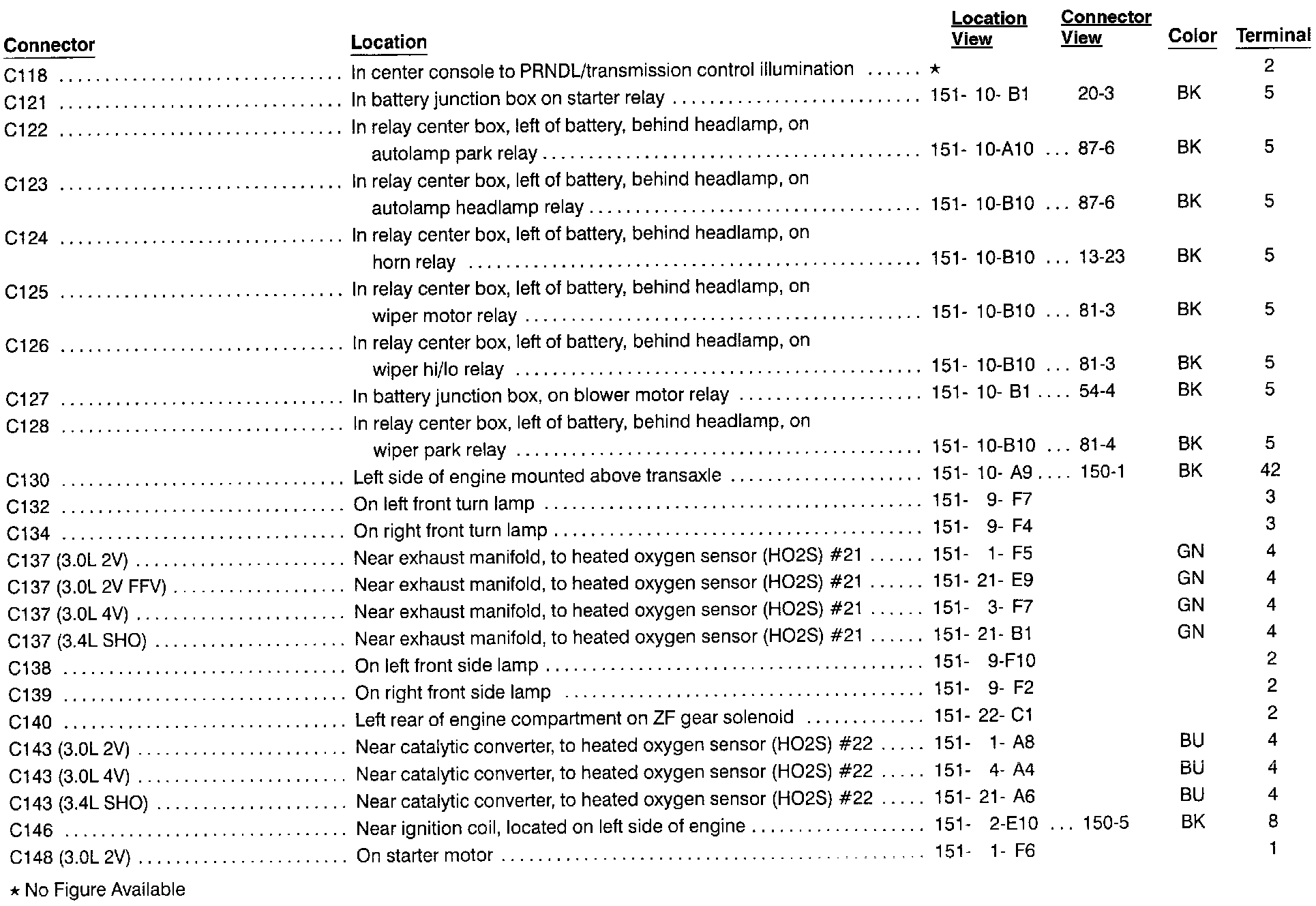

C118-C148:

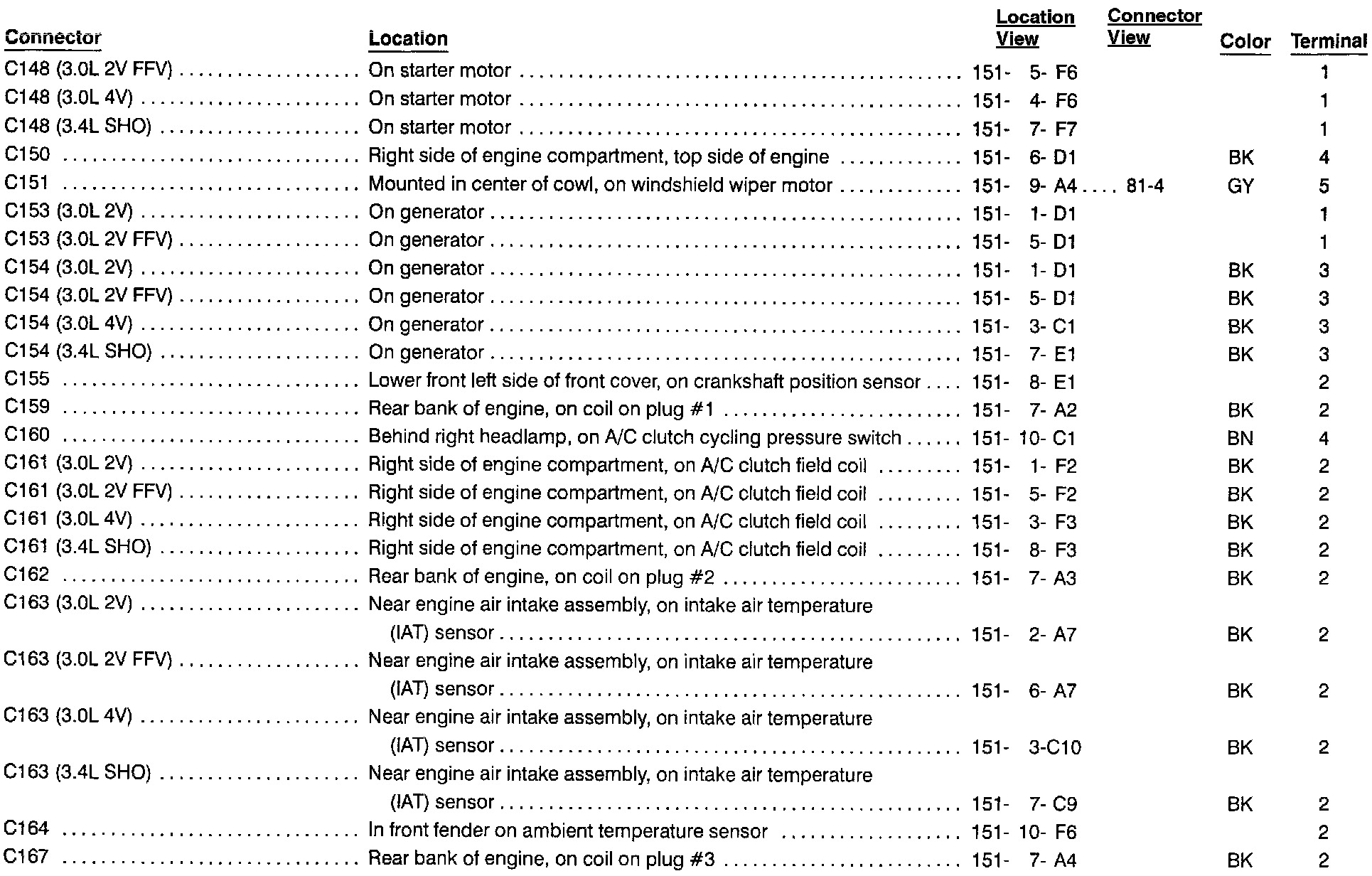

C148-C167:

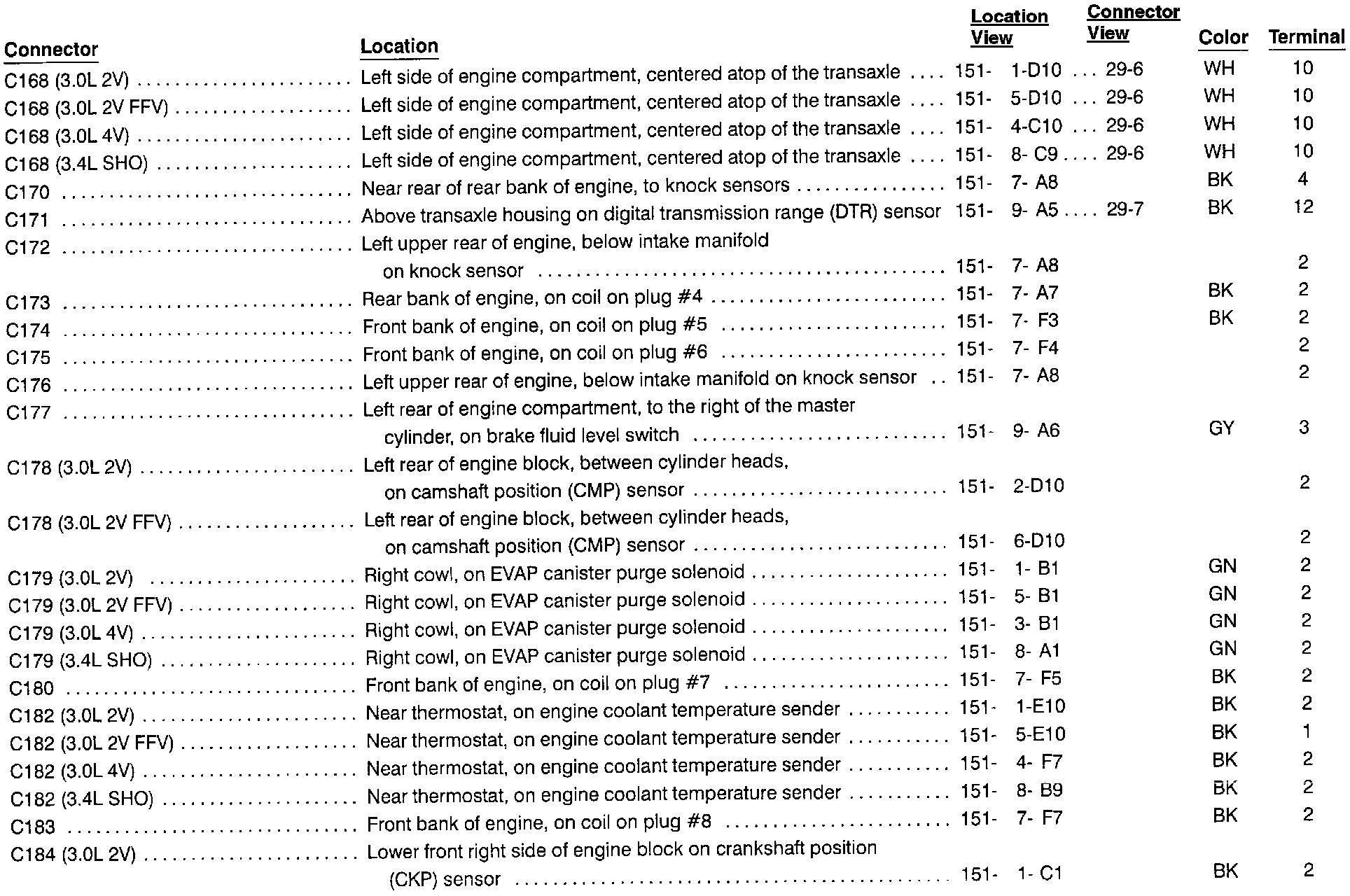

C168-C184:

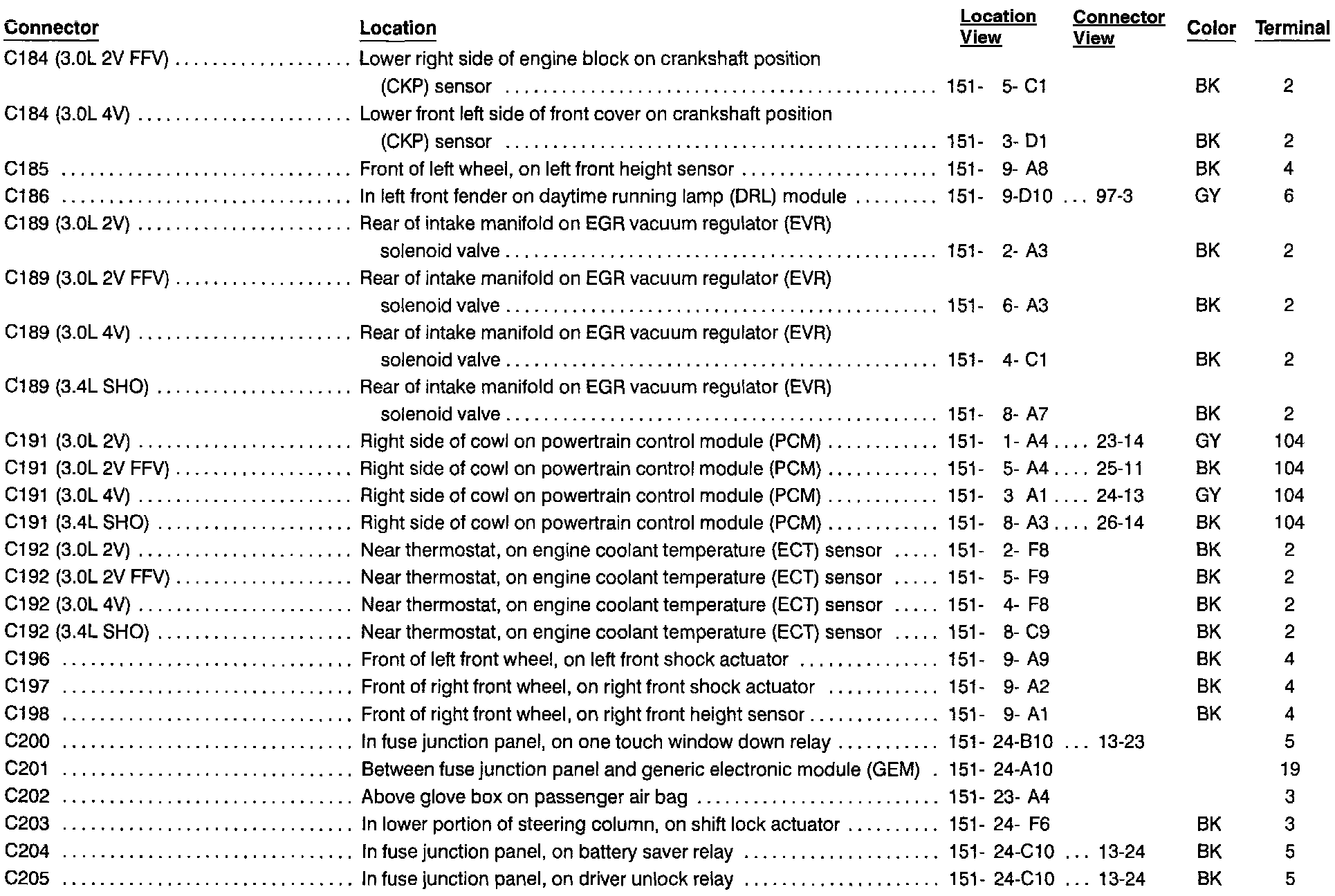

C184-C205:

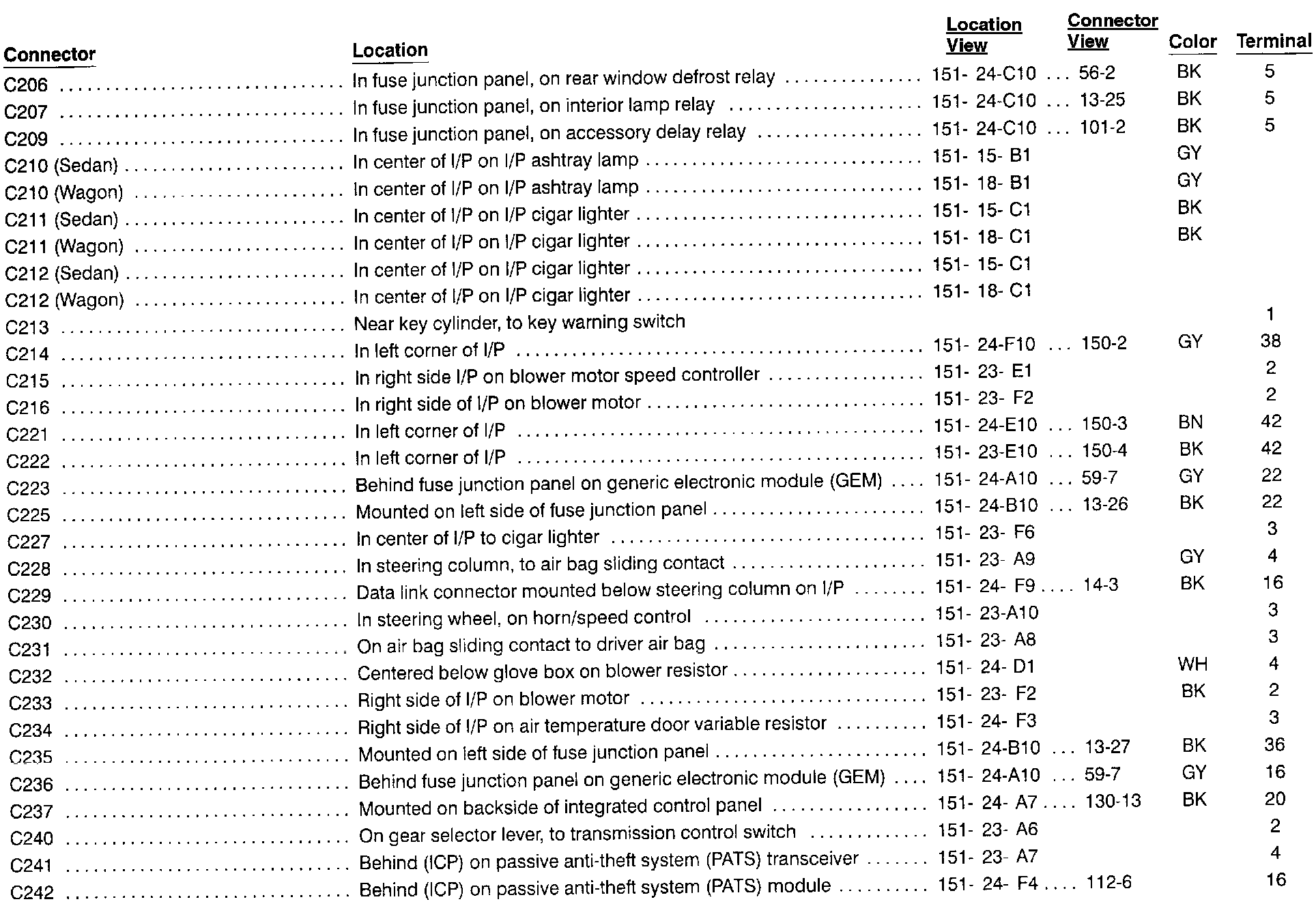

C206-C242:

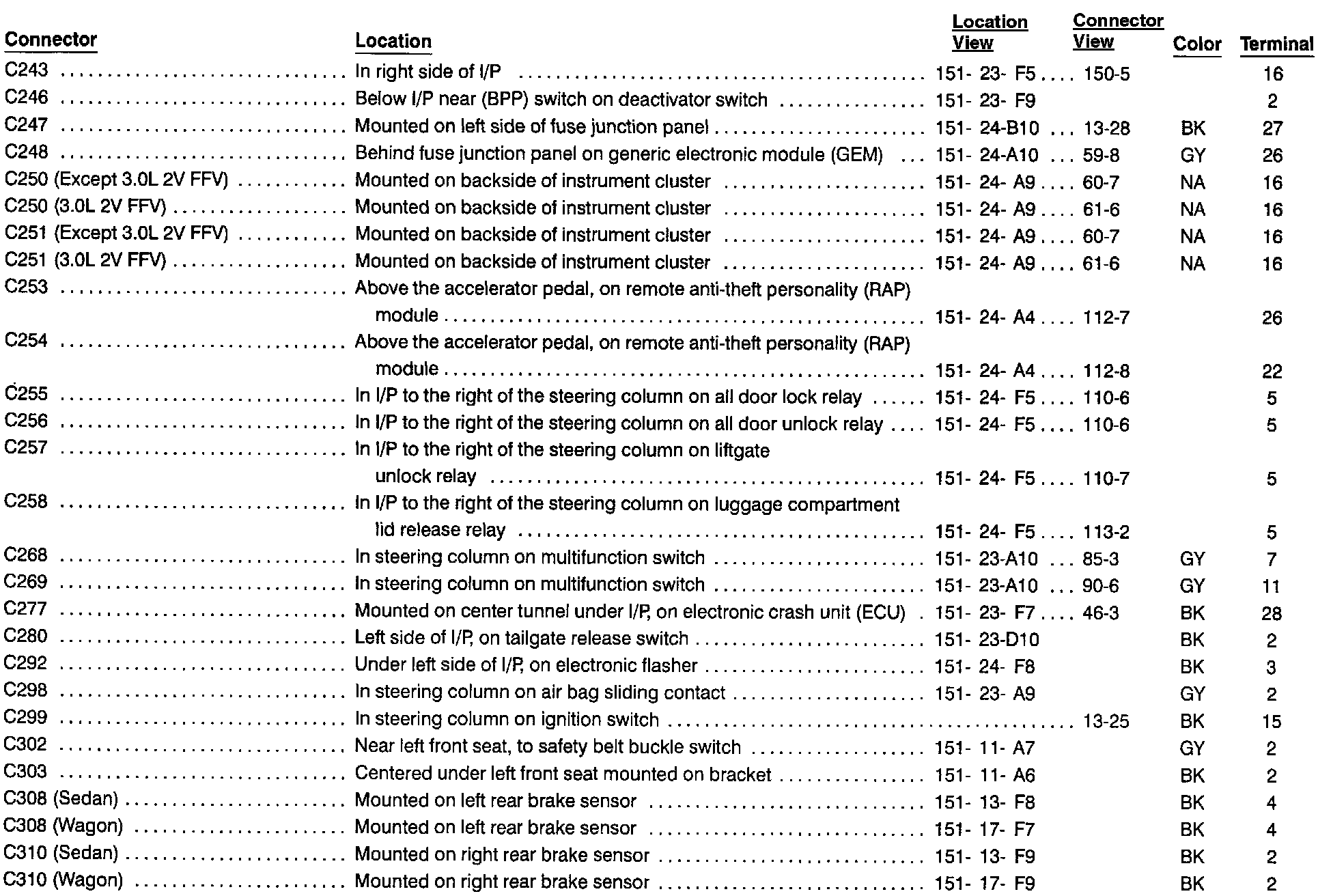

C243-C310:

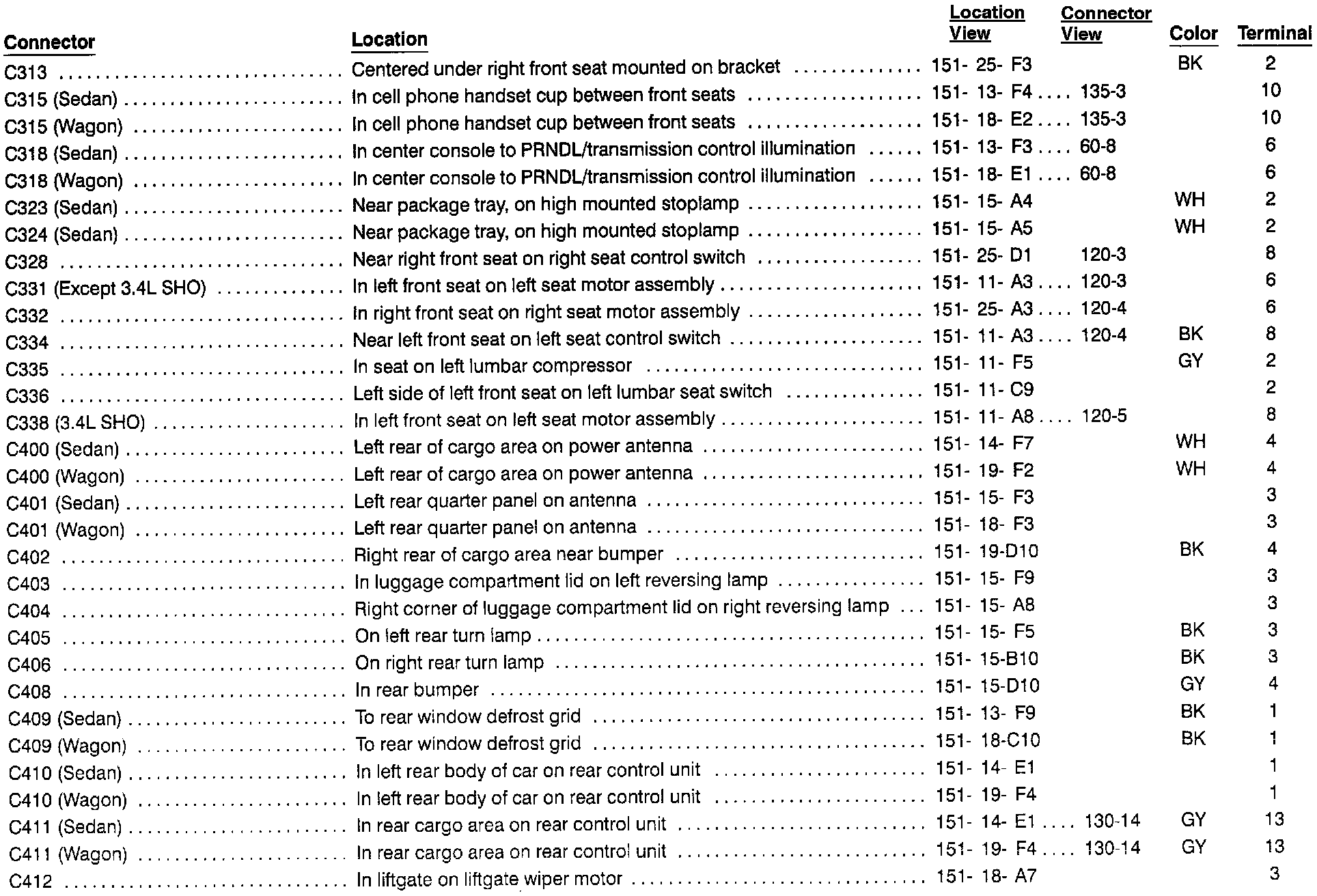

C313-C412:

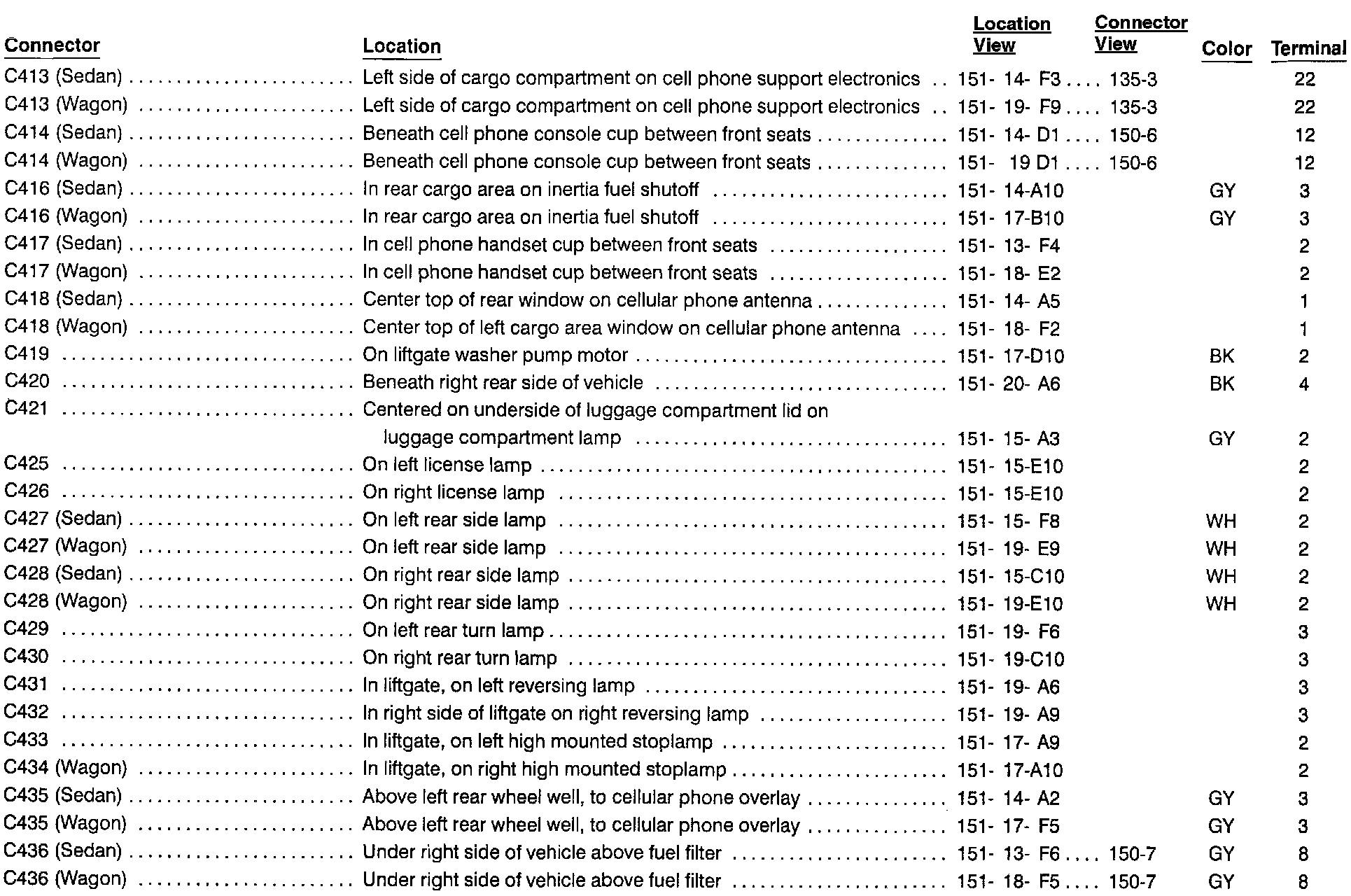

C413-C436:

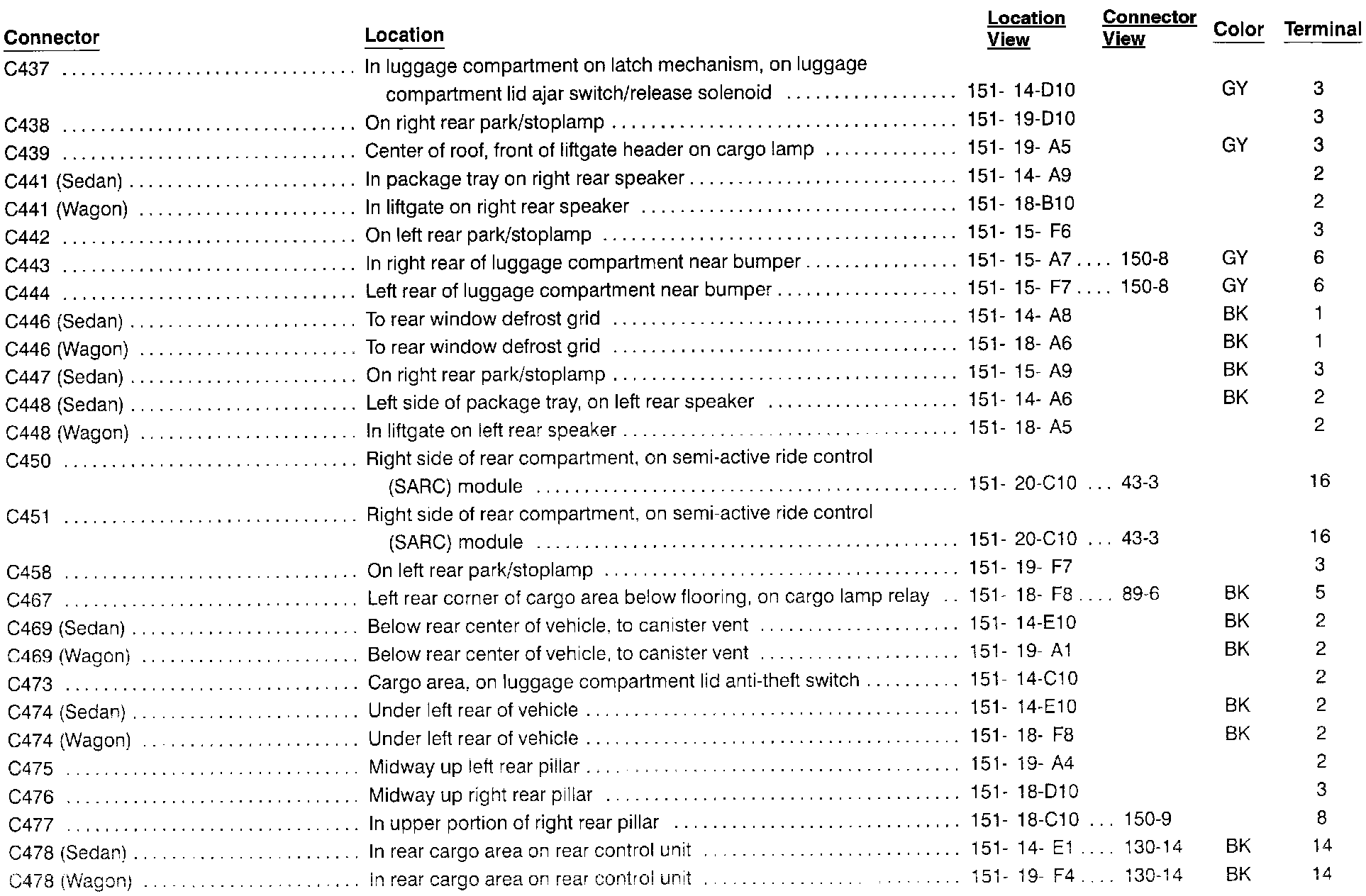

C437-C478:

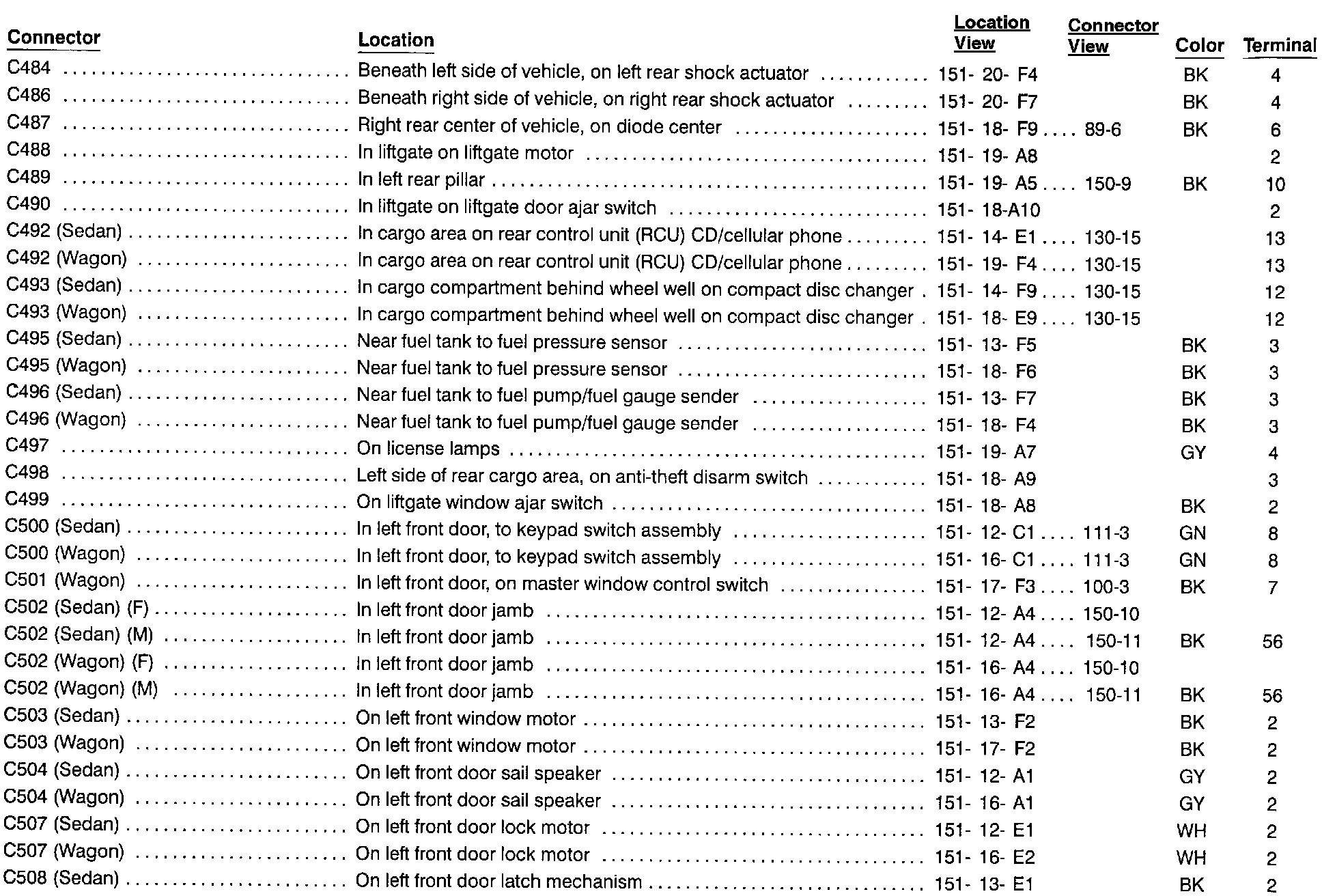

C484-C508:

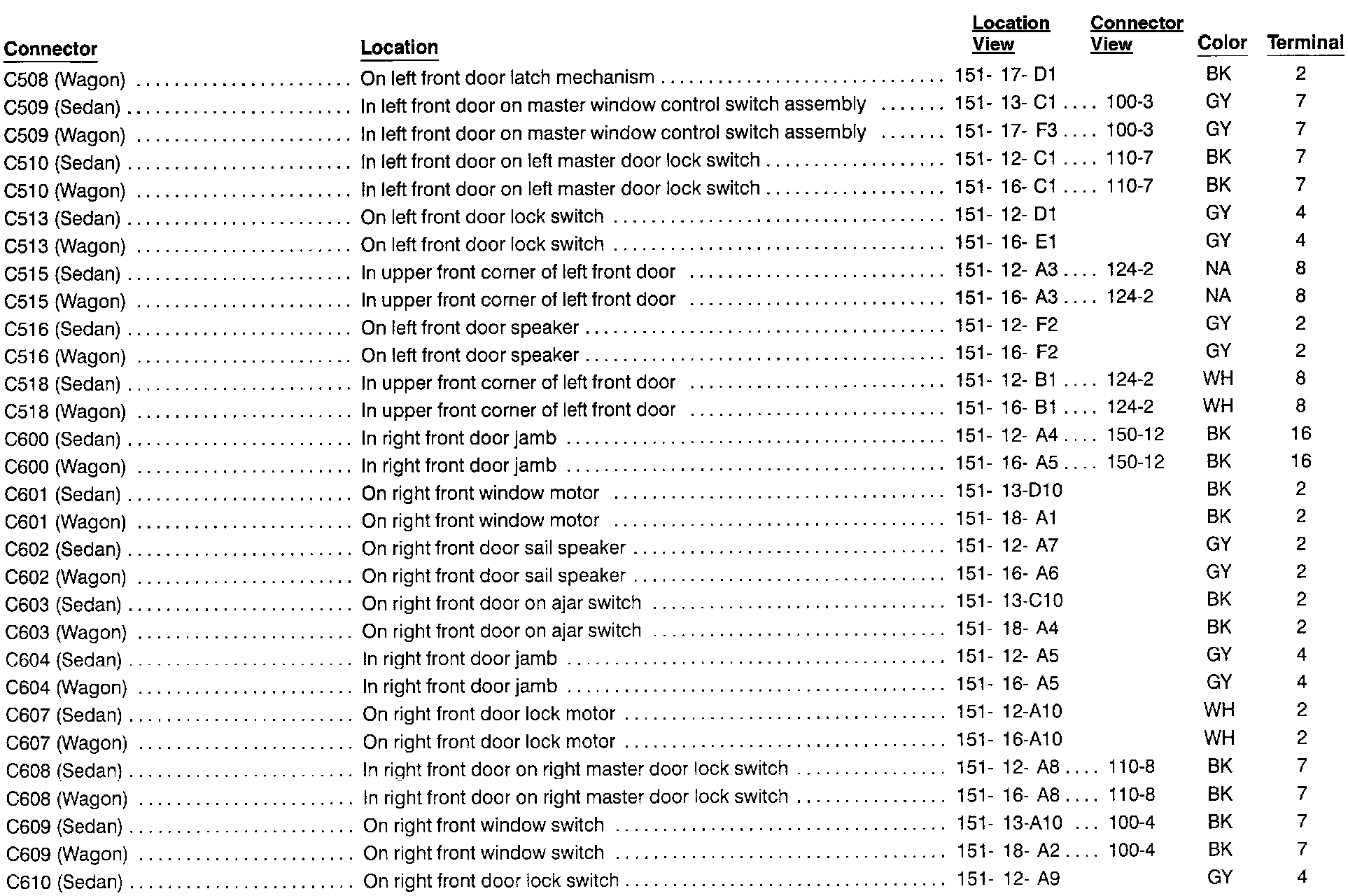

C508-C610:

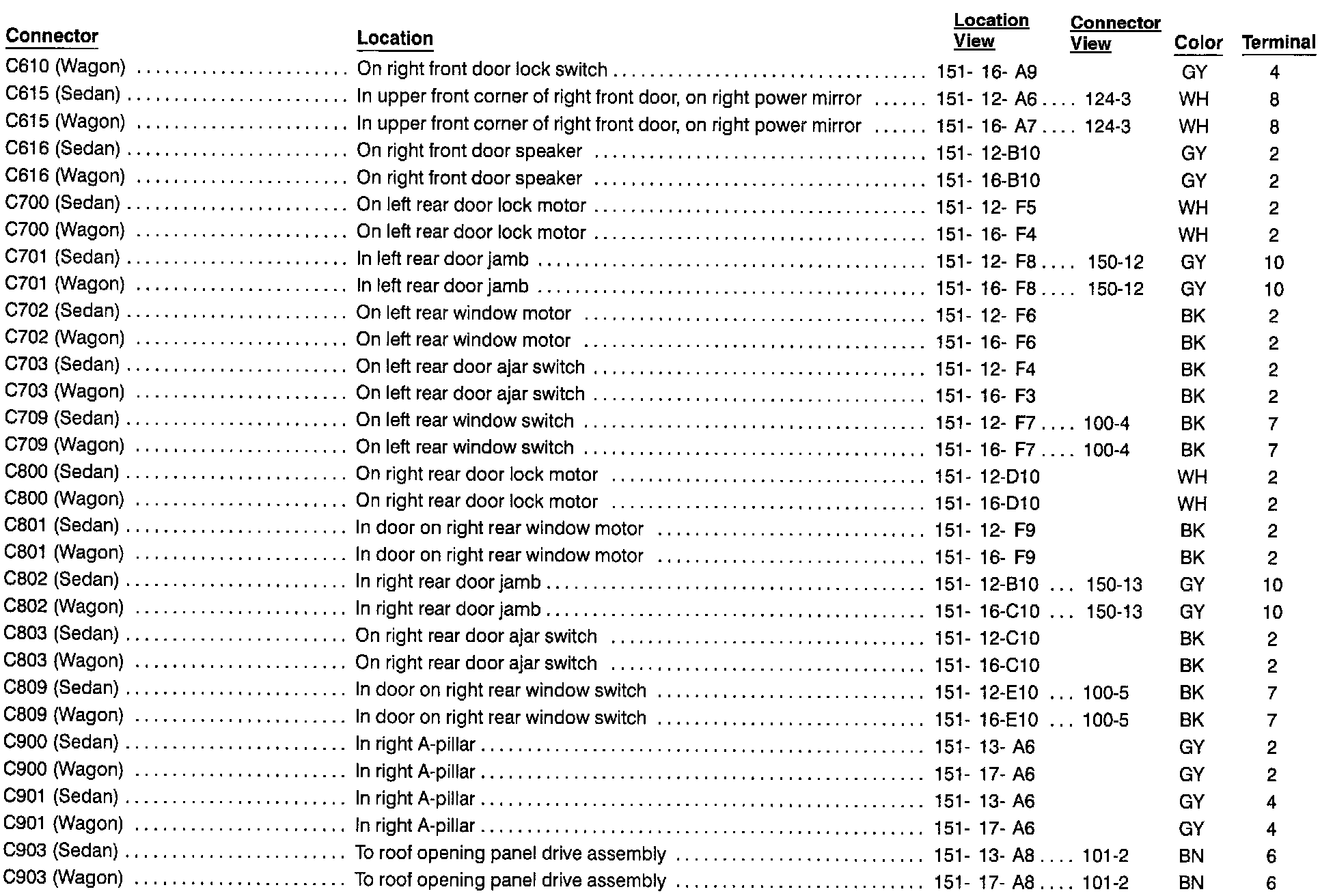

C610-C903:

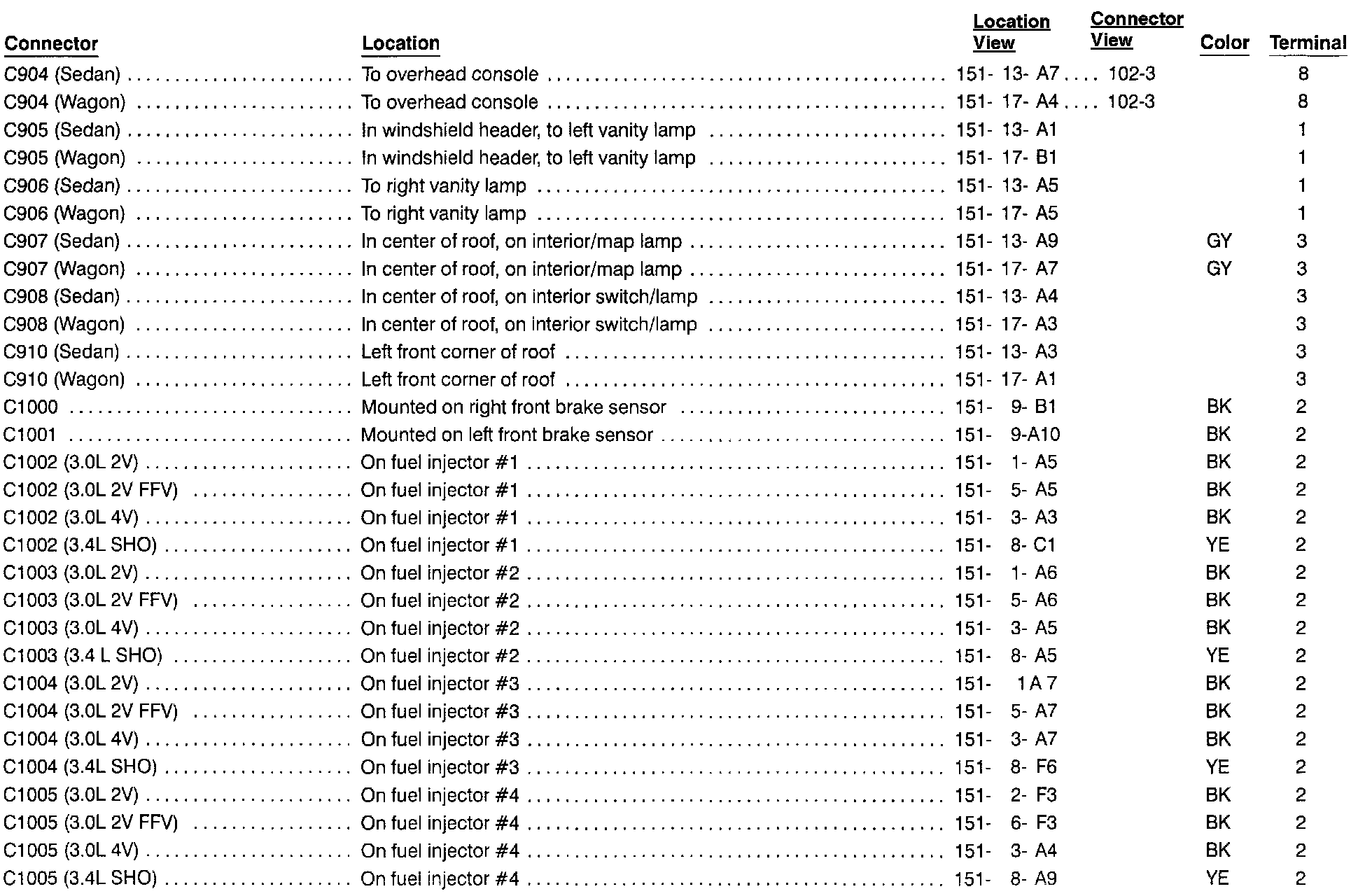

C904-1005:

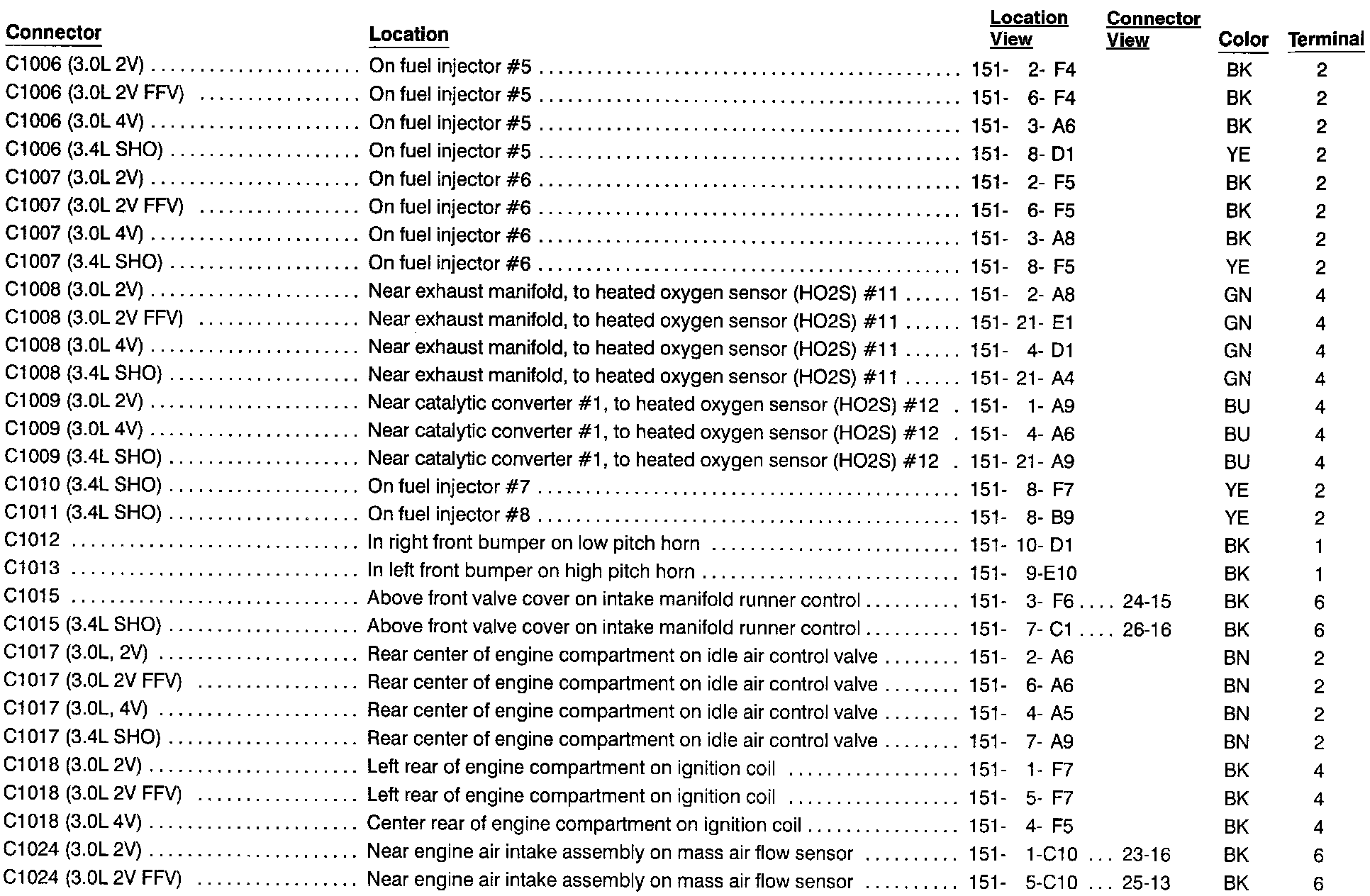

C1006-C1024:

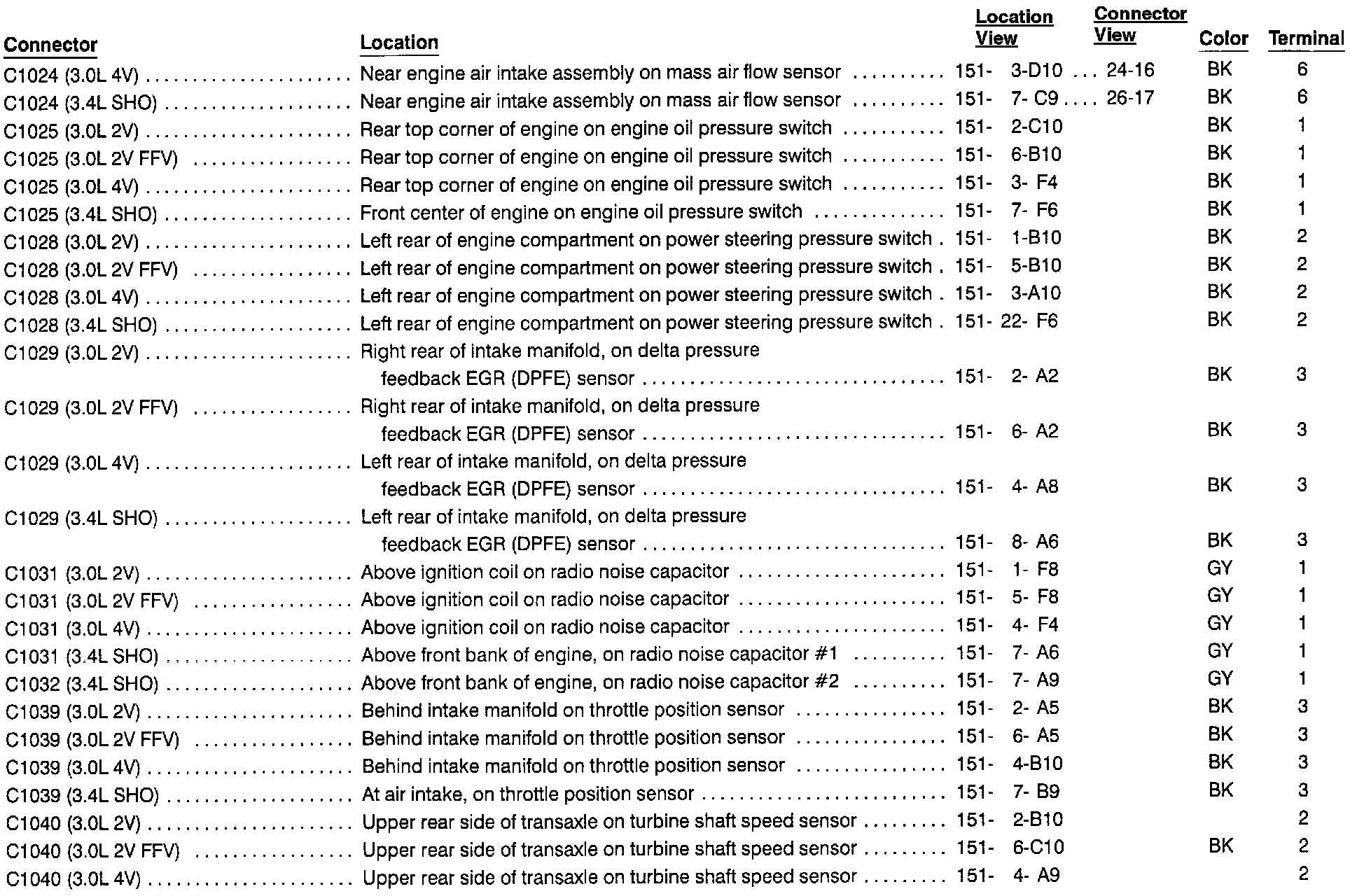

C1024-C1040:

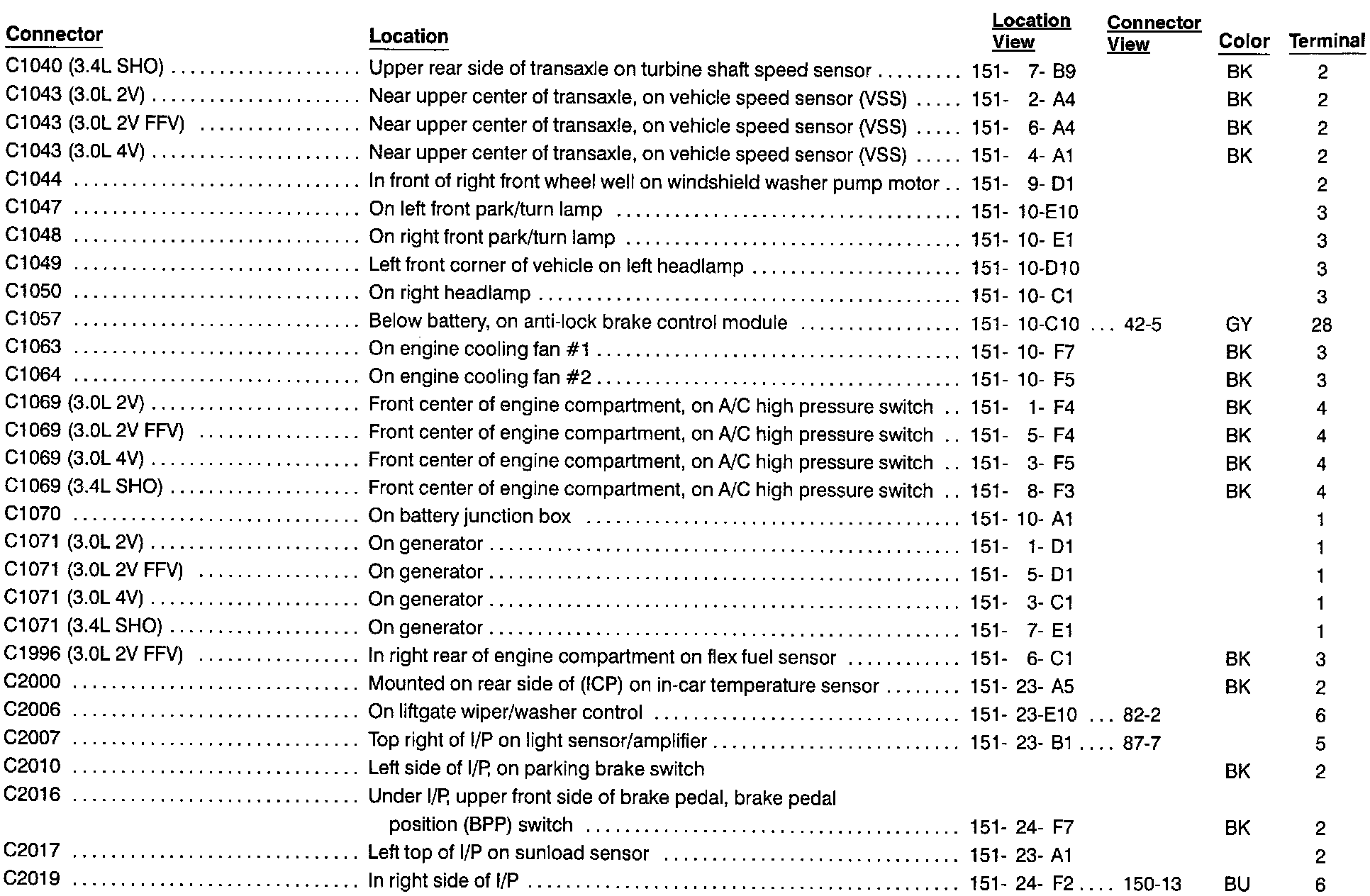

C1040-C2019:

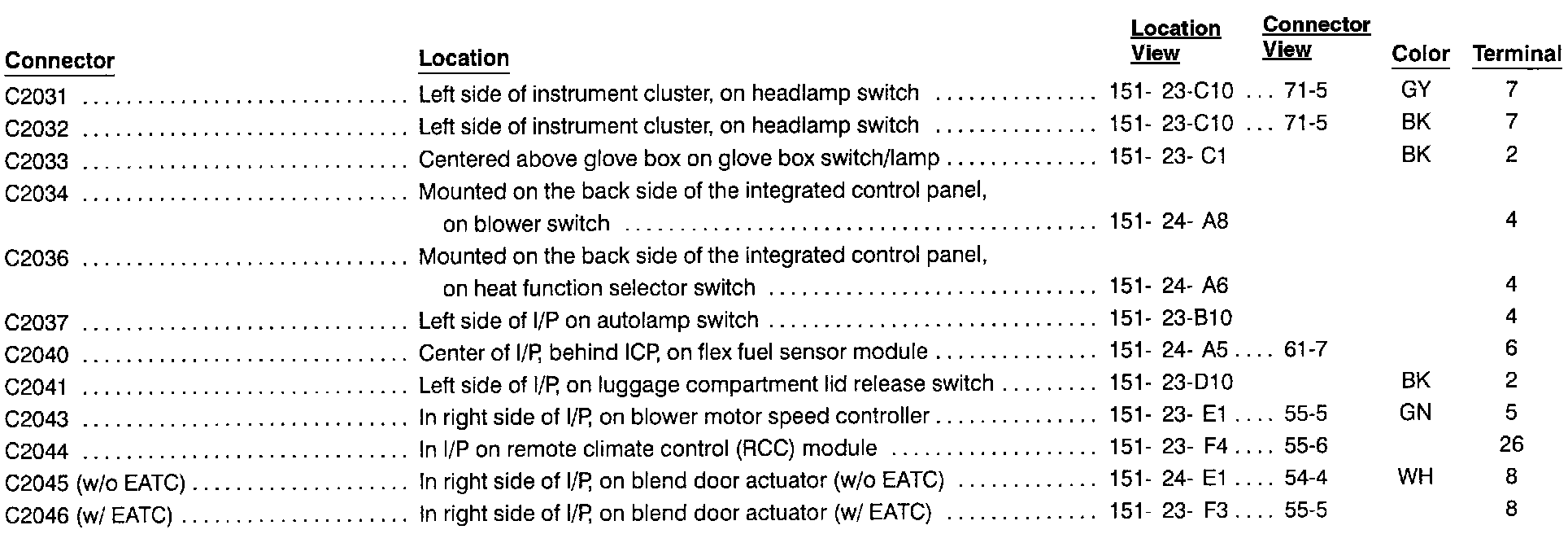

C2031-C2046:
