Component Tests and General Diagnostics

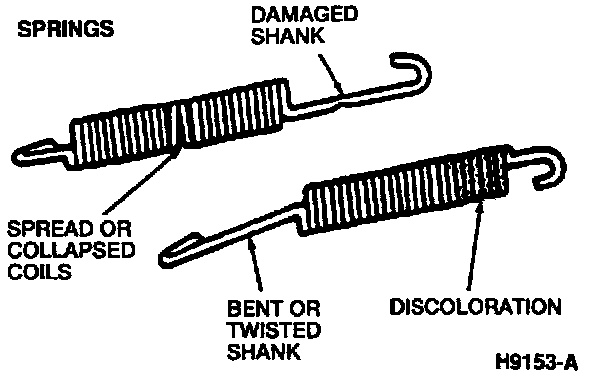

Check springs for:
^ spread or collapsed coils.
^ twisted, bent or damaged shanks.
^ discoloration, which is a sign of brake overheating. Overheated springs lose some of their tension and should be replaced.
