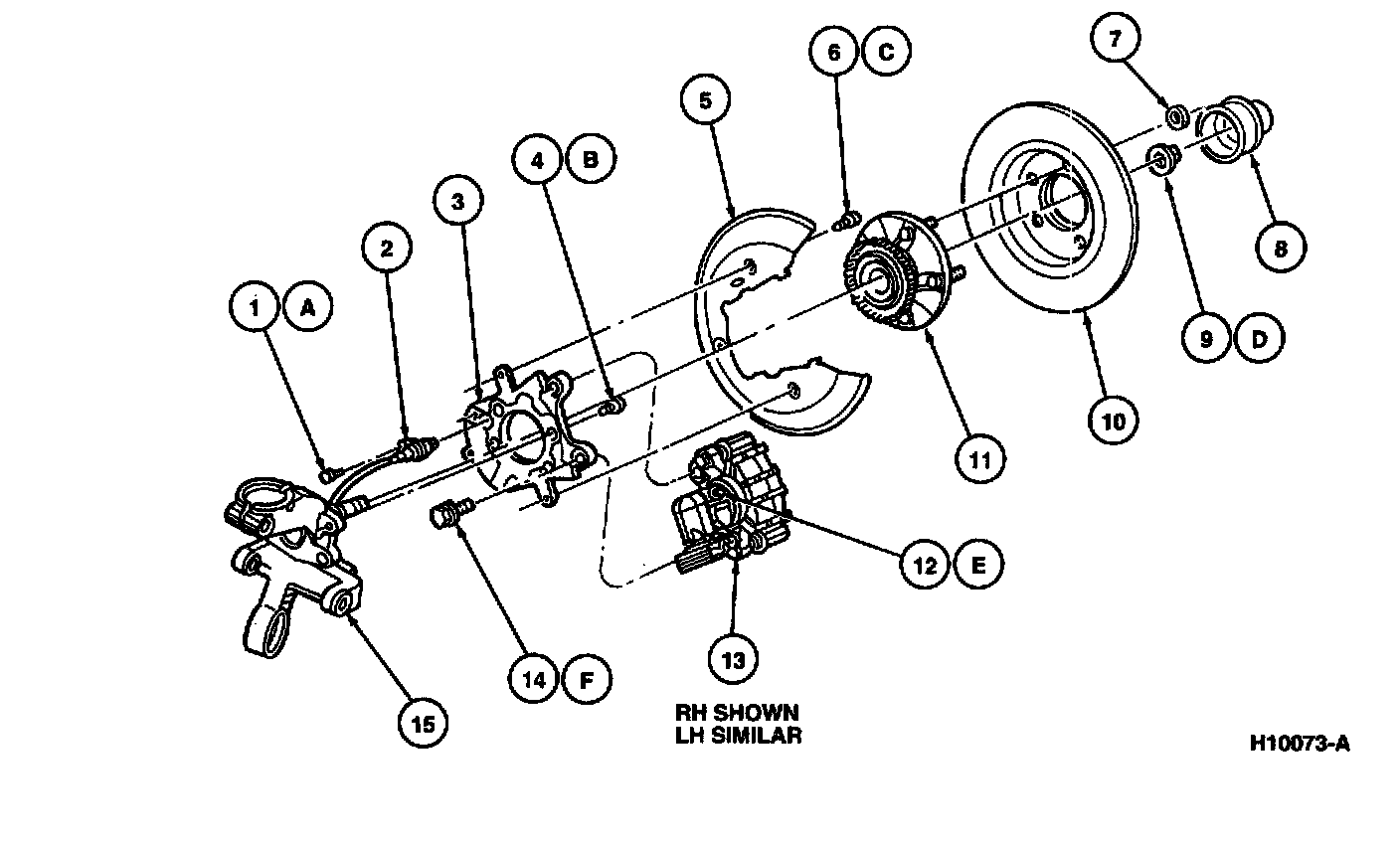

Rear

Removal
1. Remove rear disc brake rotor and rear disc brake caliper.
2. Remove wheel hub.
3. Remove three bolts and rear wheel disc brake shield.


Installation
1. Install rear wheel disc brake shield and three bolts. Tighten bolts to 9 - 12 Nm (80 - 106 inch lbs.).
2. Install wheel hub.
3. Install rear disc brake rotor and rear disc brake caliper.
4. Lower vehicle.
