Quick Tests

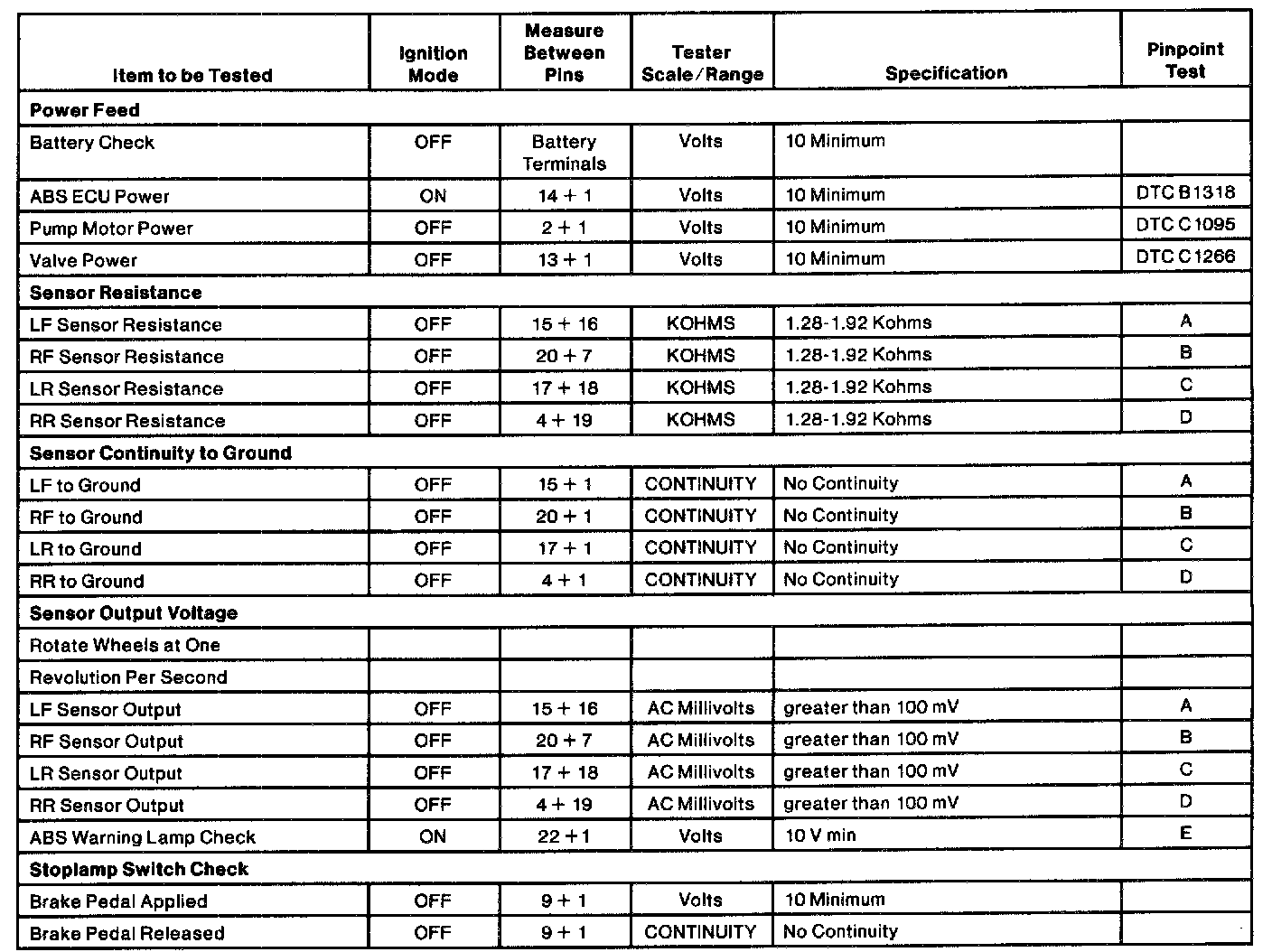

Anti-Lock Quick Test Check Sheet Using Rotunda 60-Pin EEC-IV Breakout Box 418-005 (014-00322) Or Equivalent:

NOTE: Use Quick Test Check Sheet for short term service only and for service when New Generation Star (NGS) Tester 418-FO48 (007-00500) or equivalent is not available to retrieve DTCs.

NOTE: If fault is intermittent, these tests will NOT find the fault.
