Sable V6-3.0L DOHC VIN S
>>
Repair and Diagnosis
>>
Body and Frame
>>
Weatherstrip
>>
Rear Door Weatherstrip
>>
Service and Repair
>>
Rear-Upper
>>
Wagon
Wagon
All Wagons:
REMOVAL
1.
Open rear door.
2.

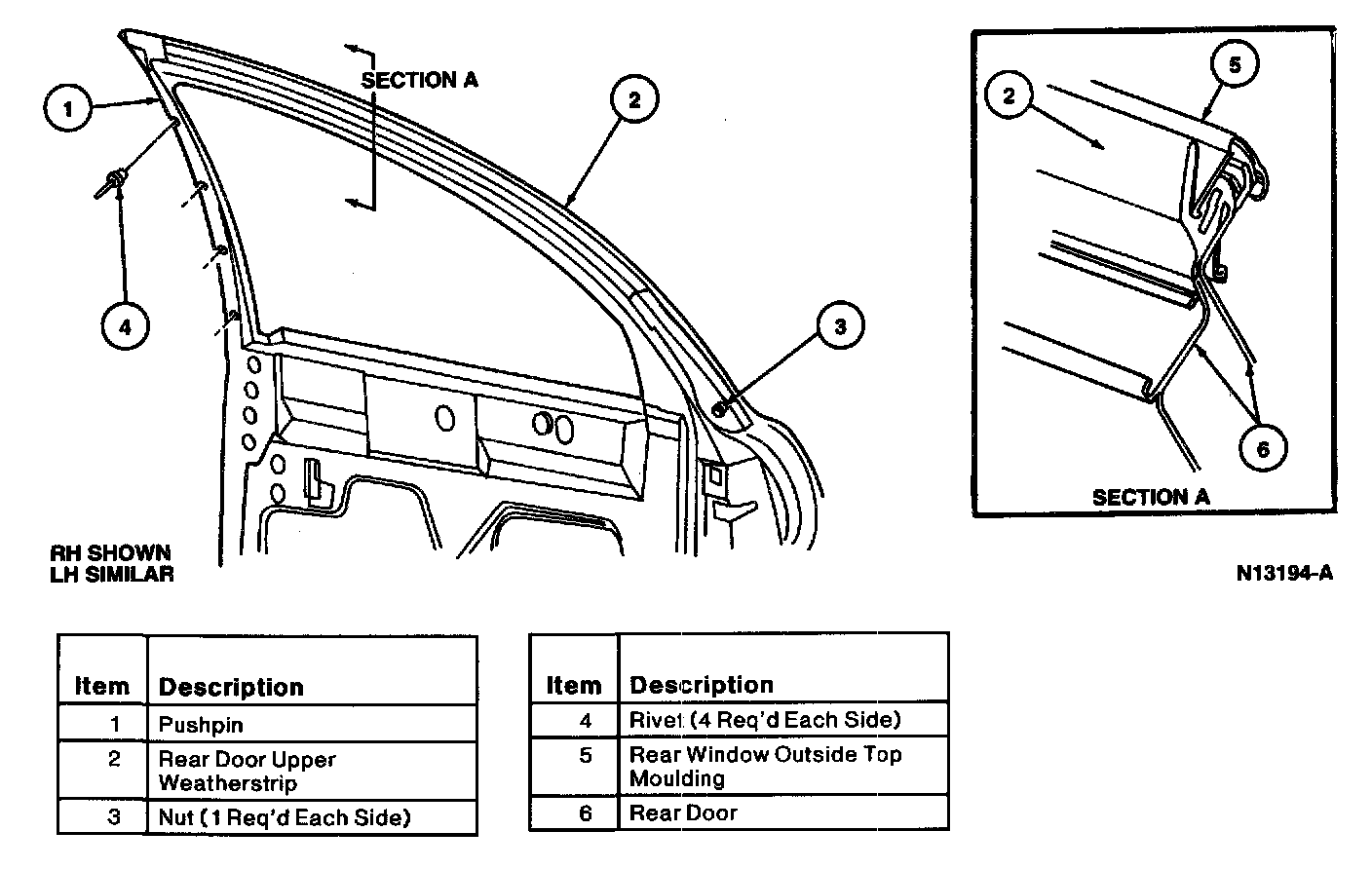

Remove two pushpins and rivets (N804120-S100) retaining rear door upper
weatherstrip
to rear door.
INSTALLATION
1.
Follow removal procedure in reverse order.
