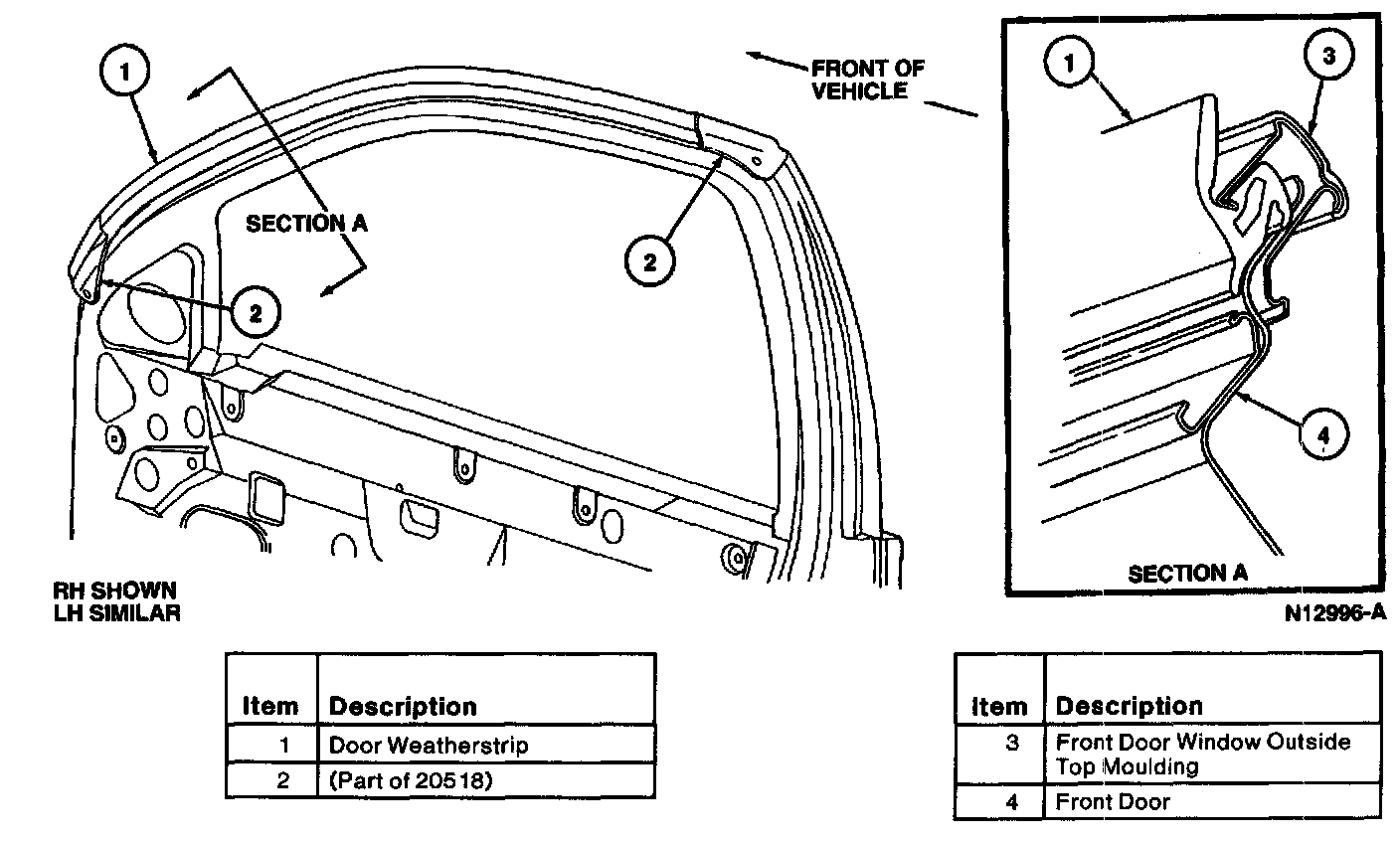

Front-Upper






REMOVAL
1. Remove pushpin from each end of upper front door weatherstrip.
2. Pull upper front door weatherstrip from channel.

INSTALLATION
1. Follow removal procedure in reverse order.
