Front-Opening

REMOVAL
1. Remove front door scuff plate and rear door scuff plate.

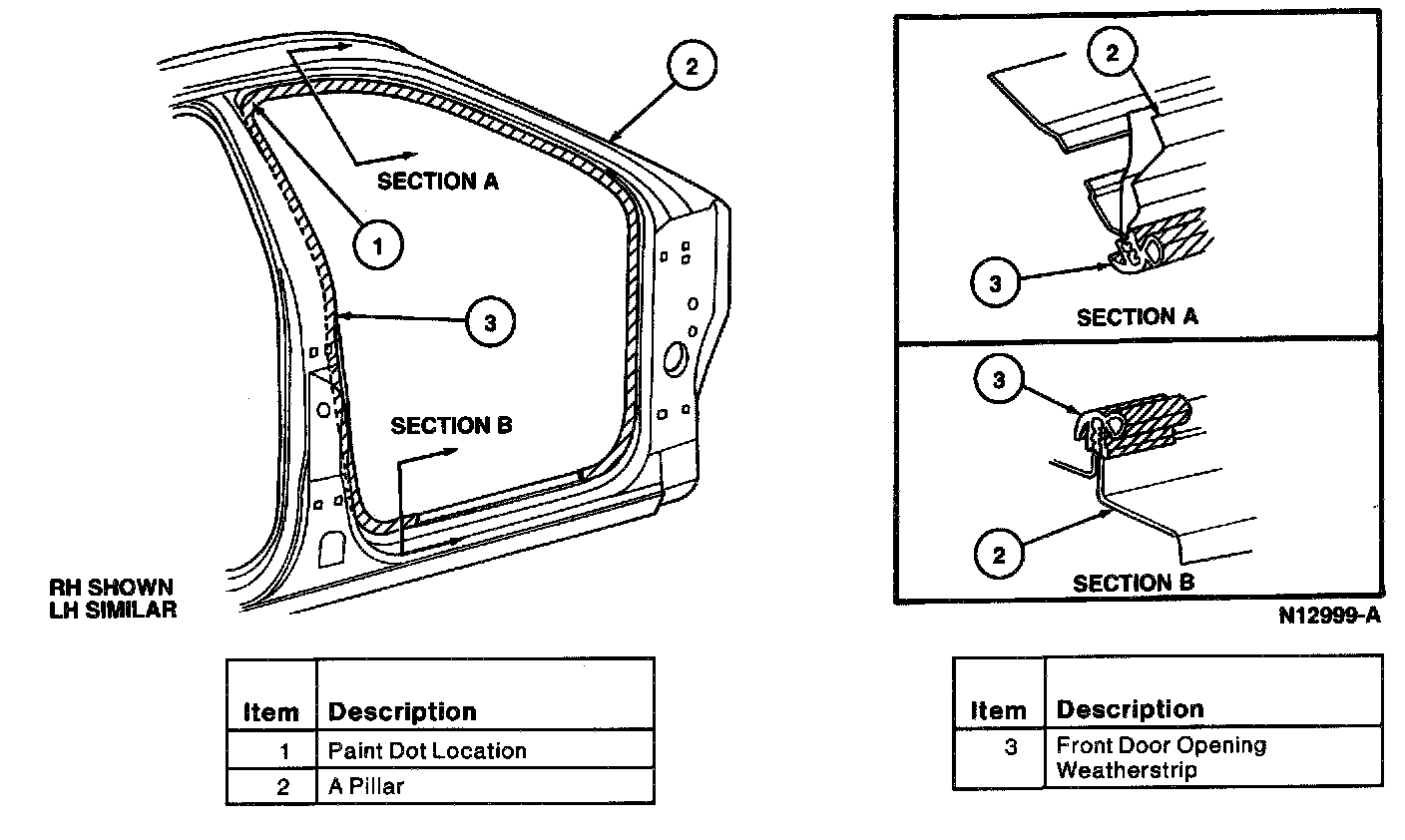

2. Locate paint dot at upper LH corner of front door opening weatherstrip and mark door frame for reinstallation.
3. Starting at one end, pull front door opening weatherstrip from mounting flange in door opening. Remove from vehicle.

INSTALLATION
1. Locate paint dot at upper LH corner of front door opening weatherstrip and install front door opening weatherstrip to reference mark on flange.
2. Install each leg of front door opening weatherstrip by pressing firmly until weatherstrip is fully seated.
3. Install front door scuff plate and rear door scuff plate.
