Sable V6-3.0L DOHC VIN S
>>
Repair and Diagnosis
>>
Body and Frame
>>
Weatherstrip
>>
Front Door Weatherstrip
>>
Service and Repair
>>

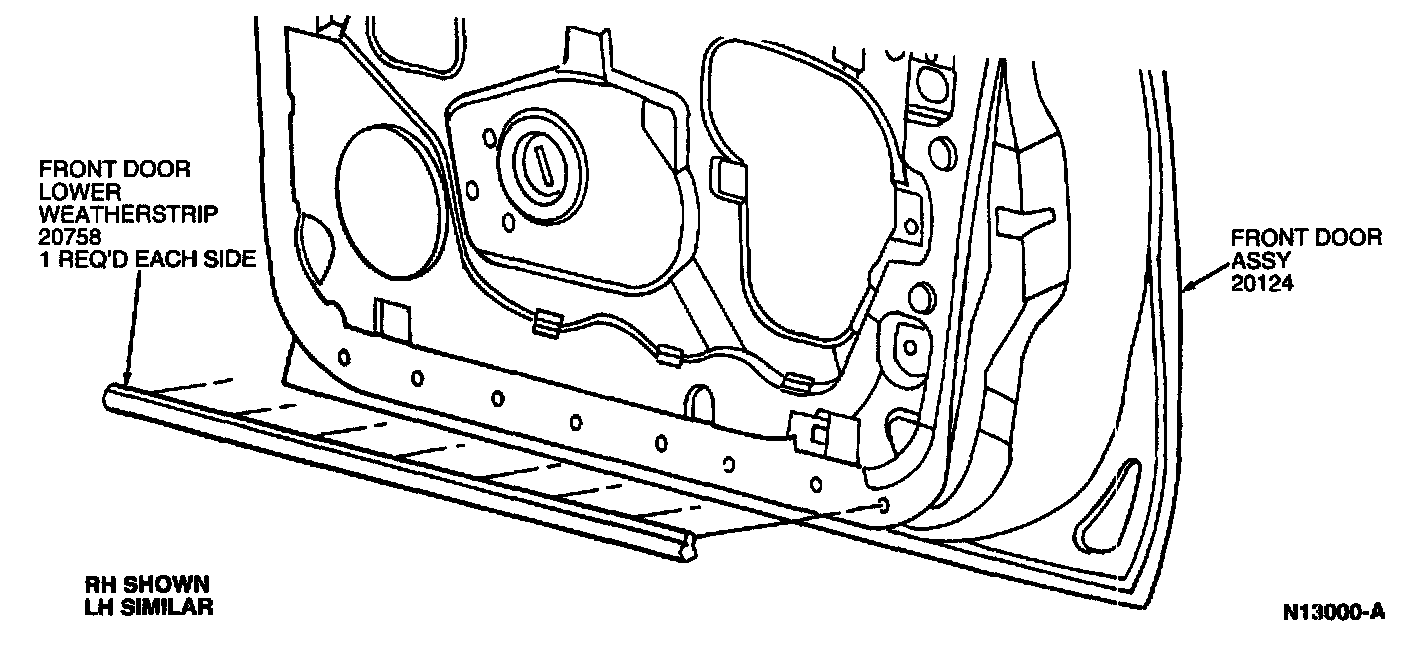

Front-Lower
Front-Lower
REMOVAL
1.
Use a suitable tool to pry eight pushpins retaining front door lower
weatherstrip
to front door.
2.
Remove front door lower
weatherstrip
from front door.
INSTALLATION
1.
Follow removal procedure in reverse order.
