Rear Door

REMOVAL

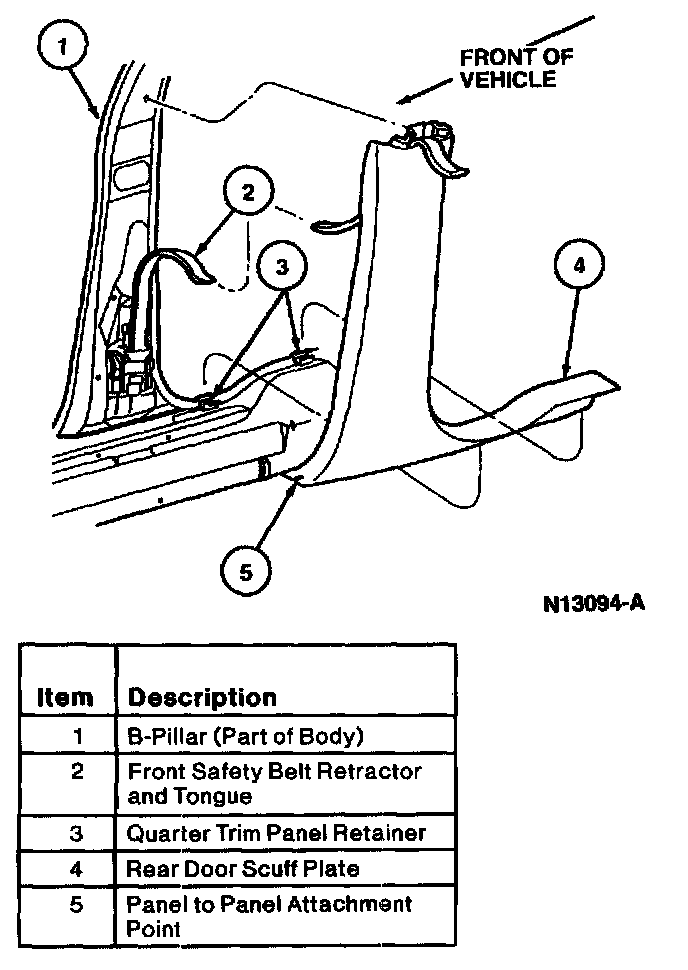

1. Open rear door.
2. Remove center body pillar inside upper finish panel.
3. Pull up on door opening portion of rear door scuff plate to disengage clip retainers from rocker panel.
4. Remove rear door scuff plate from B-pillar.
5. Remove bolt retaining front safety belt retractor and tongue to B-pillar.
6. Remove shoulder belt from rear door scuff plate.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten front safety belt retractor and tongue bolt to 34-46 N.m (25-33 lb-ft).
