Rear View Mirror Mounting Hole Cover

REMOVAL
1. Remove the front door trim panel as described.

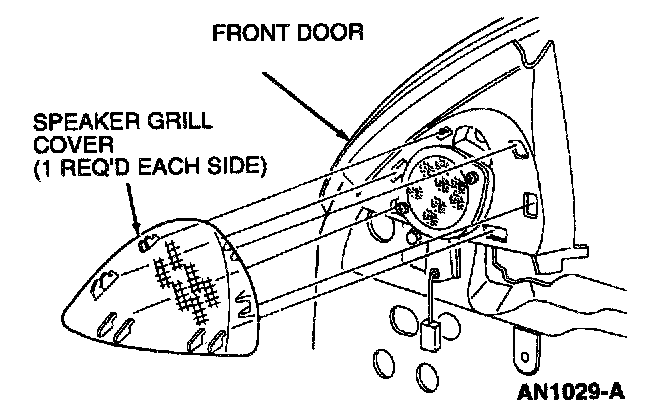

2. Remove the radio speaker grille.
3. Disconnect speaker wiring.

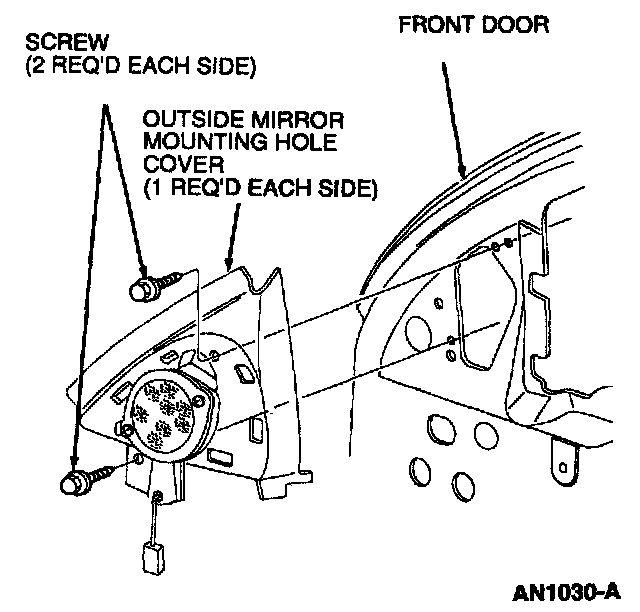

4. Remove two screws retaining rear view mirror mounting hole cover to front door.
5. Remove rear view mirror mounting hole cover.

INSTALLATION
1. Transfer speaker if required.
2. Position rear view mirror mounting hole cover to front door and install retaining screws.
3. Connect speaker wiring.
4. Install radio speaker grille.
5. Install front door trim panel to front door.
