RH

REMOVAL

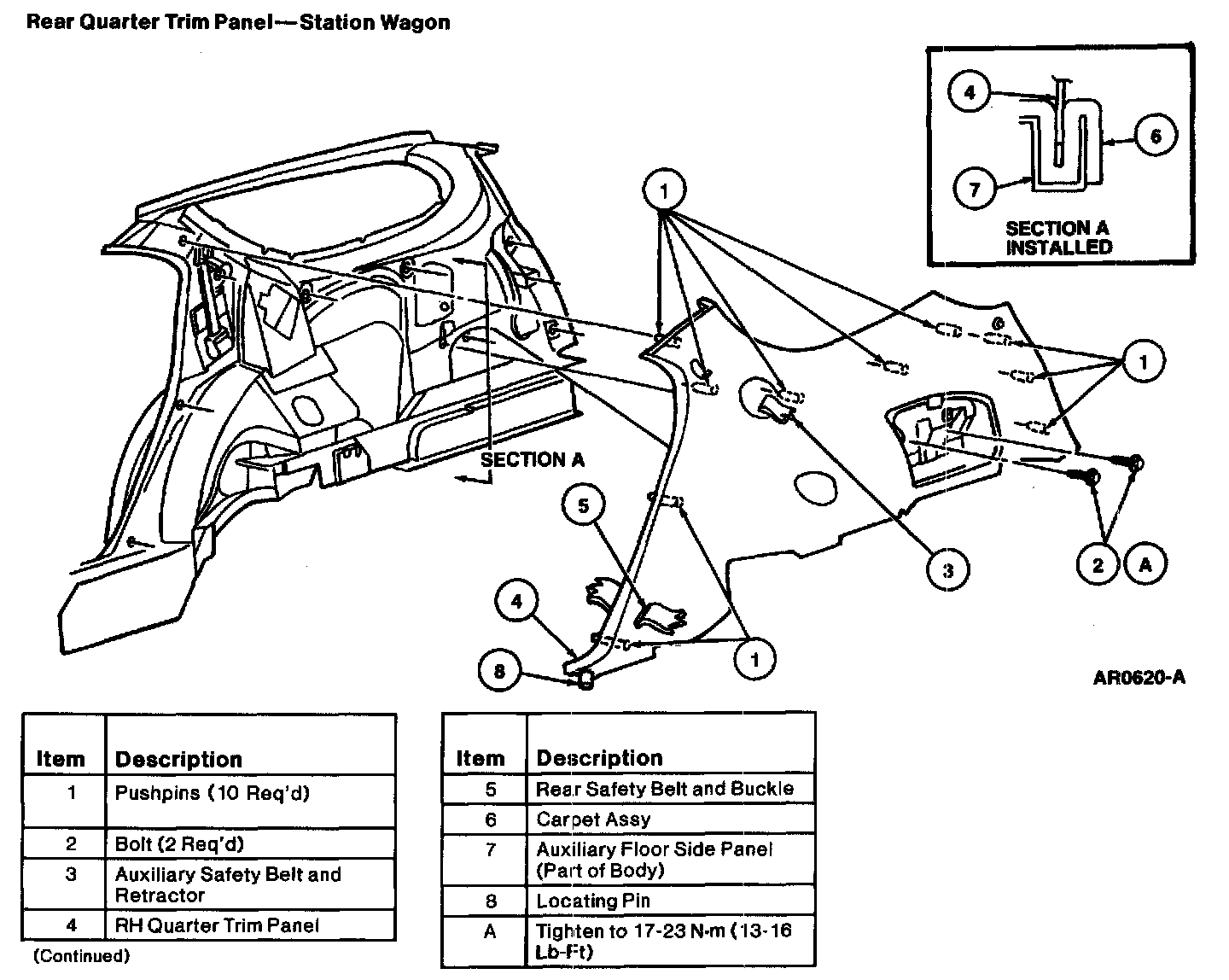

Rear Quarter Trim Panel:

1. Remove rear seat.
2. Open rear storage compartment door. Remove two screws retaining RH quarter trim panel.
3. Remove rear safety belt retractor and tongue guide nut.
4. Carefully pull RH quarter trim panel.
5. Remove bolt retaining rear safety belt retractor and tongue to body.
6. Remove bolt retaining third row seat safety belt retractor end to floor pan.
7. Remove RH quarter trim panel from vehicle, feeding safety belts through RH quarter trim panel.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten safety belt nut and bolt to 34-46 N.m (25-33 lb-ft).
3. Tighten third row seat retaining bolt to 17-23 N.m (13-16 lb-ft).
