Sedan

REMOVAL

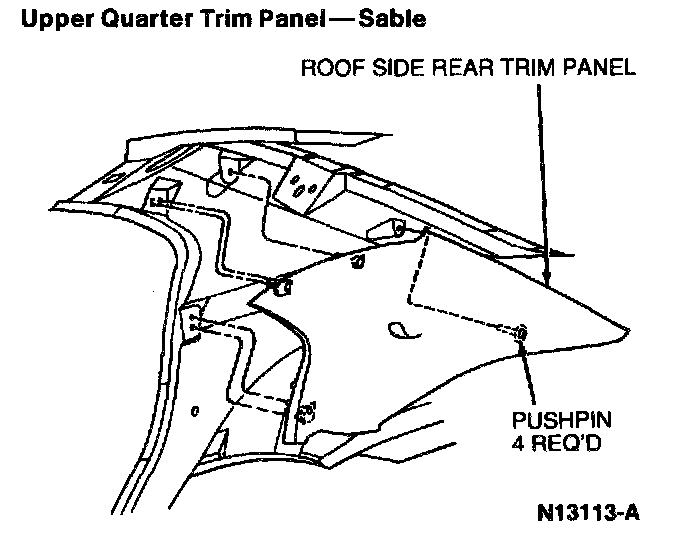

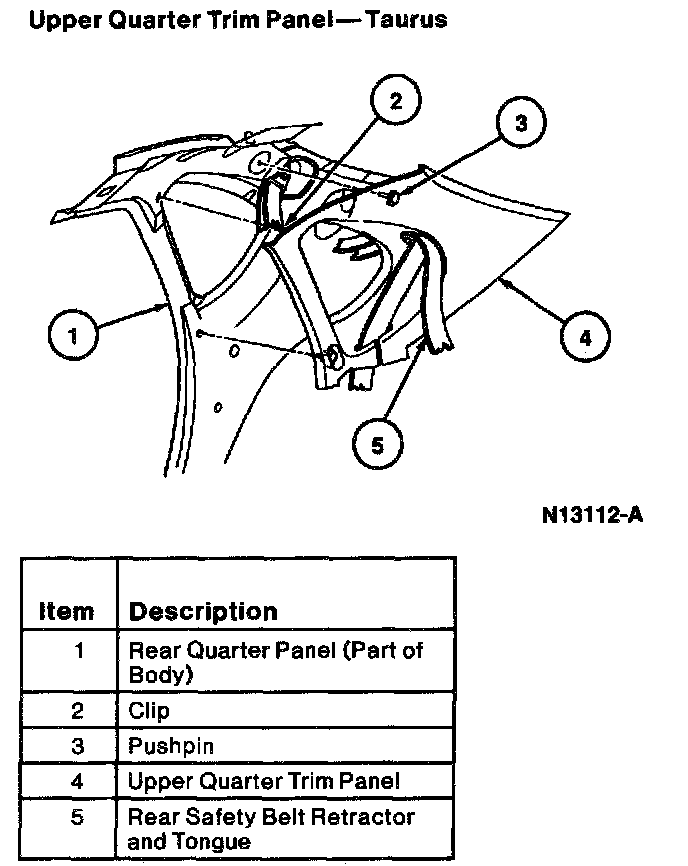

Upper Quarter Trim Panel:

1. Remove rear seat cushion and rear seat back as described in Seats.
2. Remove safety belt retractor and tongue anchor bolt.
3. Remove upper quarter trim panel by removing pushpins then pulling panel away from body.
4. Feed front safety belt retractor and tongue through upper quarter trim panel. Remove roof side trim panel from vehicle.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten safety belt bolt to 34-46 N.m (25-33 lb-ft).
