Trim Panel to Liftgate

REMOVAL







1. Open liftgate and disconnect heated back window feed wiring and ground wires.
2. Remove liftgate upper garnish moulding by pulling away from body.

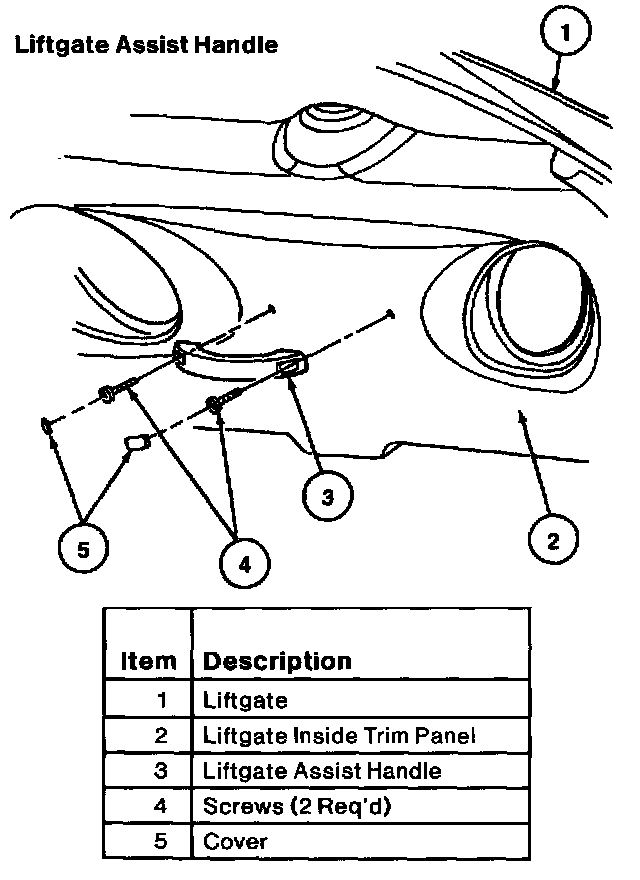

3. Remove liftgate assist handle screws and assist handle.
4. Remove pushpins retaining liftgate inside trim panel to liftgate.

INSTALLATION
1. Follow removal procedure in reverse order.
