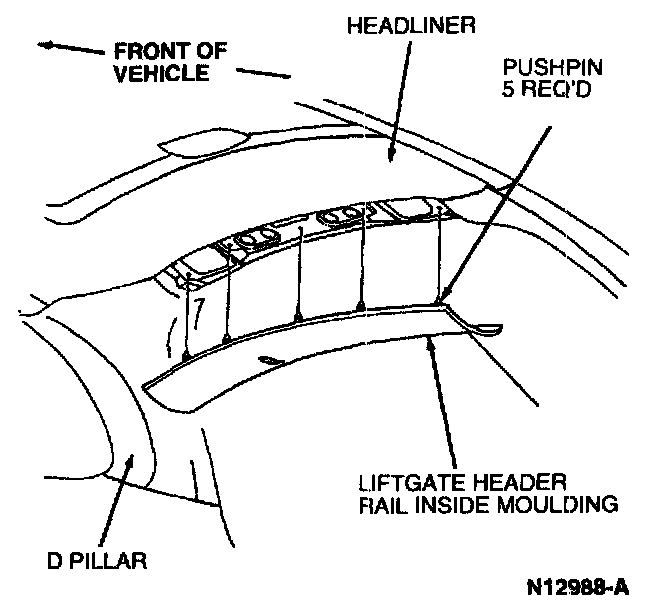

Liftgate Header Rail Inside - Wagon

REMOVAL
1. Open liftgate.
2. Pull down on liftgate header rail inside moulding to remove.

INSTALLATION







1. Follow removal procedure in reverse order.
