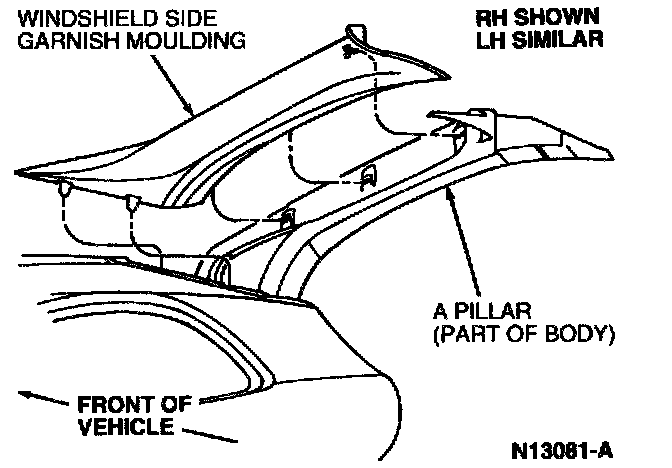

Interior Windshield Side Garnish Mouldings

REMOVAL
1. Open front door.
2. Remove windshield side garnish moulding by pulling from body.

INSTALLATION







1. Align downstanding tabs into instrument panel then align garnish moulding clips with hole in A-pillar and press windshield side garnish moulding into place.
