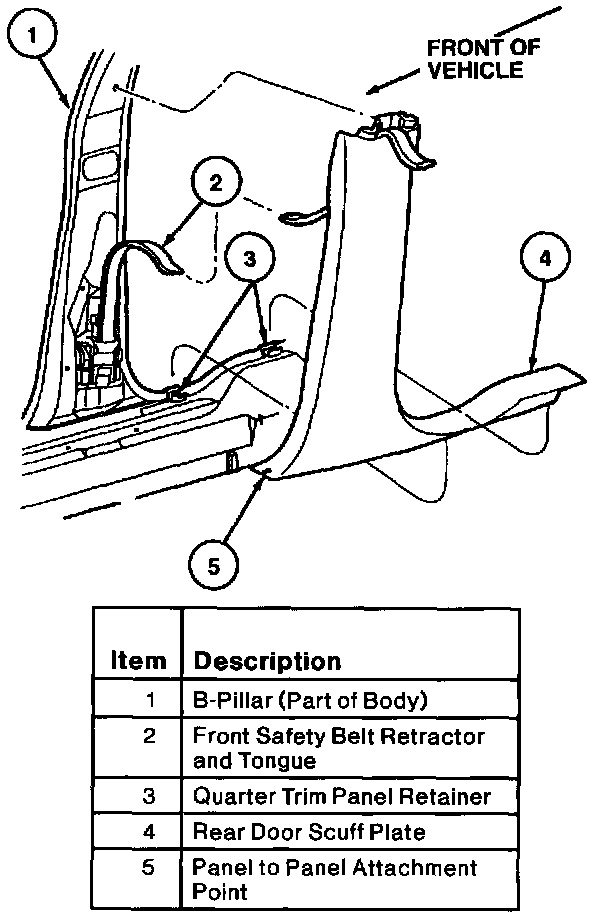

Rear Door

1. Open rear door.

2. Remove center body pillar inside upper finish panel.

3. Pull up on door opening portion of rear door scuff plate to disengage clip retainers from rocker panel.

4. Remove rear door scuff plate from B-pillar.

5. Remove bolt retaining shoulder belt to B-pillar.

6. Remove shoulder belt from rear door scuff plate.

7. To install follow removal procedure in reverse order.
