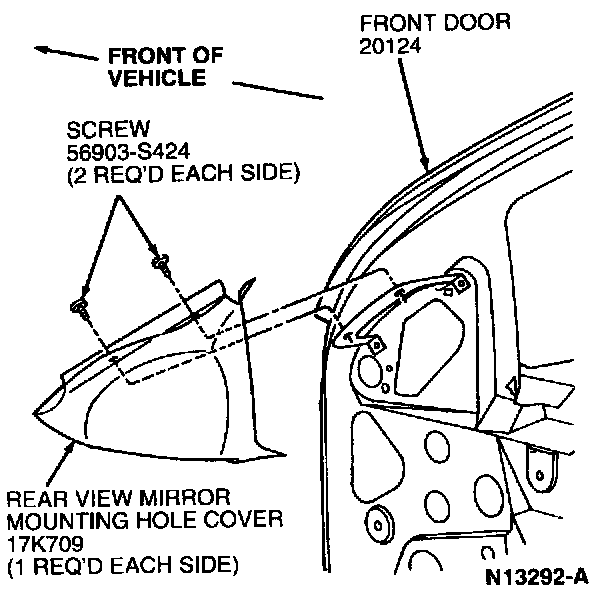

Rear View Mirror Mounting Hole Cover

1. Open front door.

2. Remove two screws retaining rear view mirror mounting hole cover to front door.

3. Remove rear view mirror mounting hole cover.






4. To install, position rear view mirror mounting hole cover to front door and install retaining screws.
