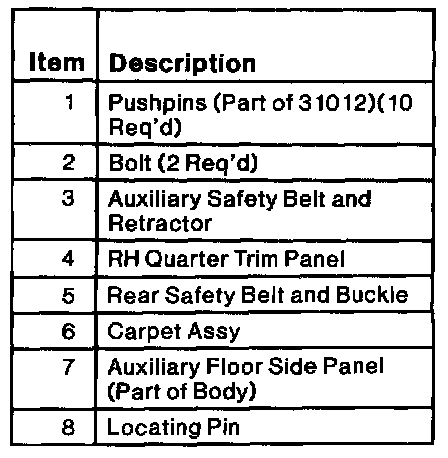

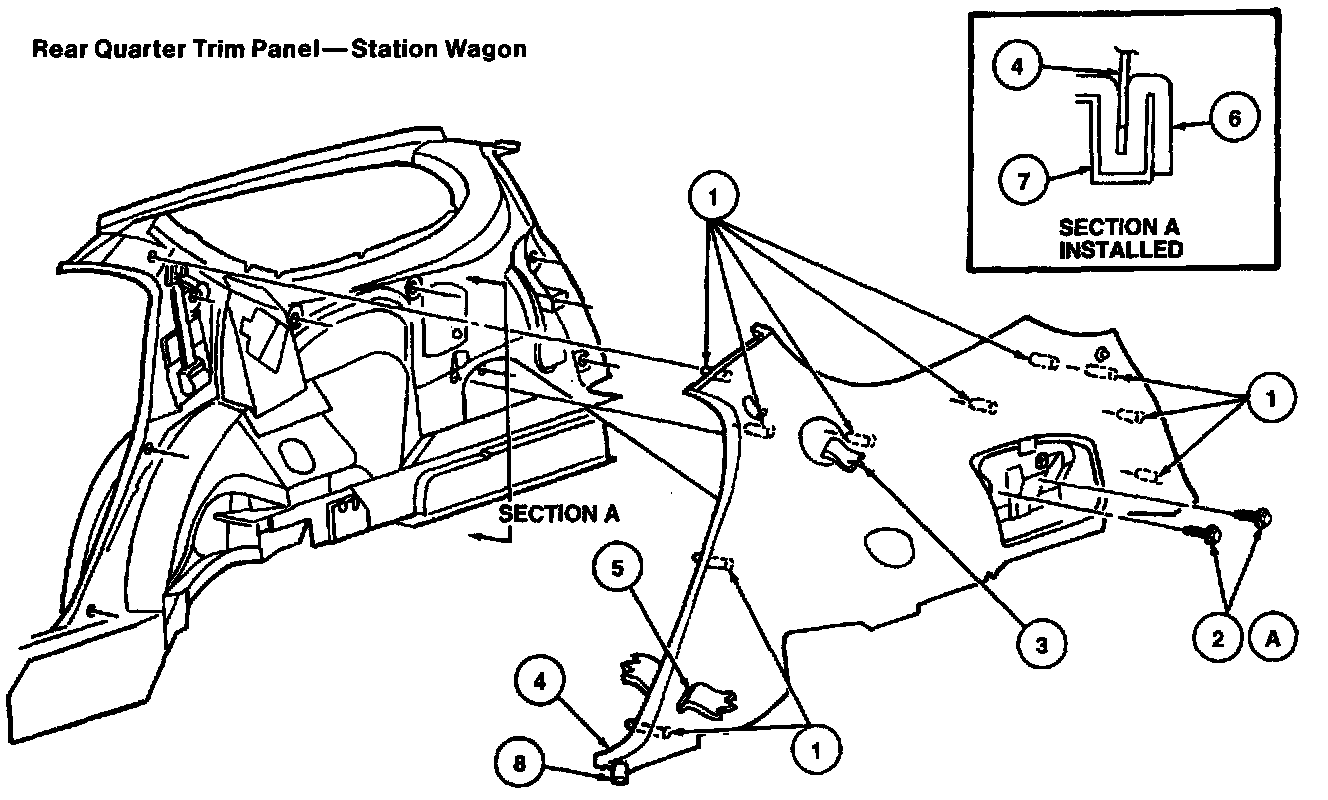

RH Quarter Trim Panel-Wagon

Remove

1. Remove rear seat.

2. Open rear storage compartment door. Remove two screws retaining RH quarter trim panel.

3. Remove rear safety belt guide nut.

4. Carefully pull RH quarter trim panel.

5. Remove bolt retaining rear safety belt to body.

6. Remove bolt retaining aft seat and safety belt end to floor pan.

7. Remove RH quarter trim panel from vehicle, feeding safety belts through RH quarter trim panel.

Install

1. Follow removal procedure in reverse order.

2. Tighten safety belt nut and bolt to 30-40 N.m (23-29 lb-ft).

3. Tighten aft seat retaining bolt to 17-23 N.m (13-16 lb-ft).
