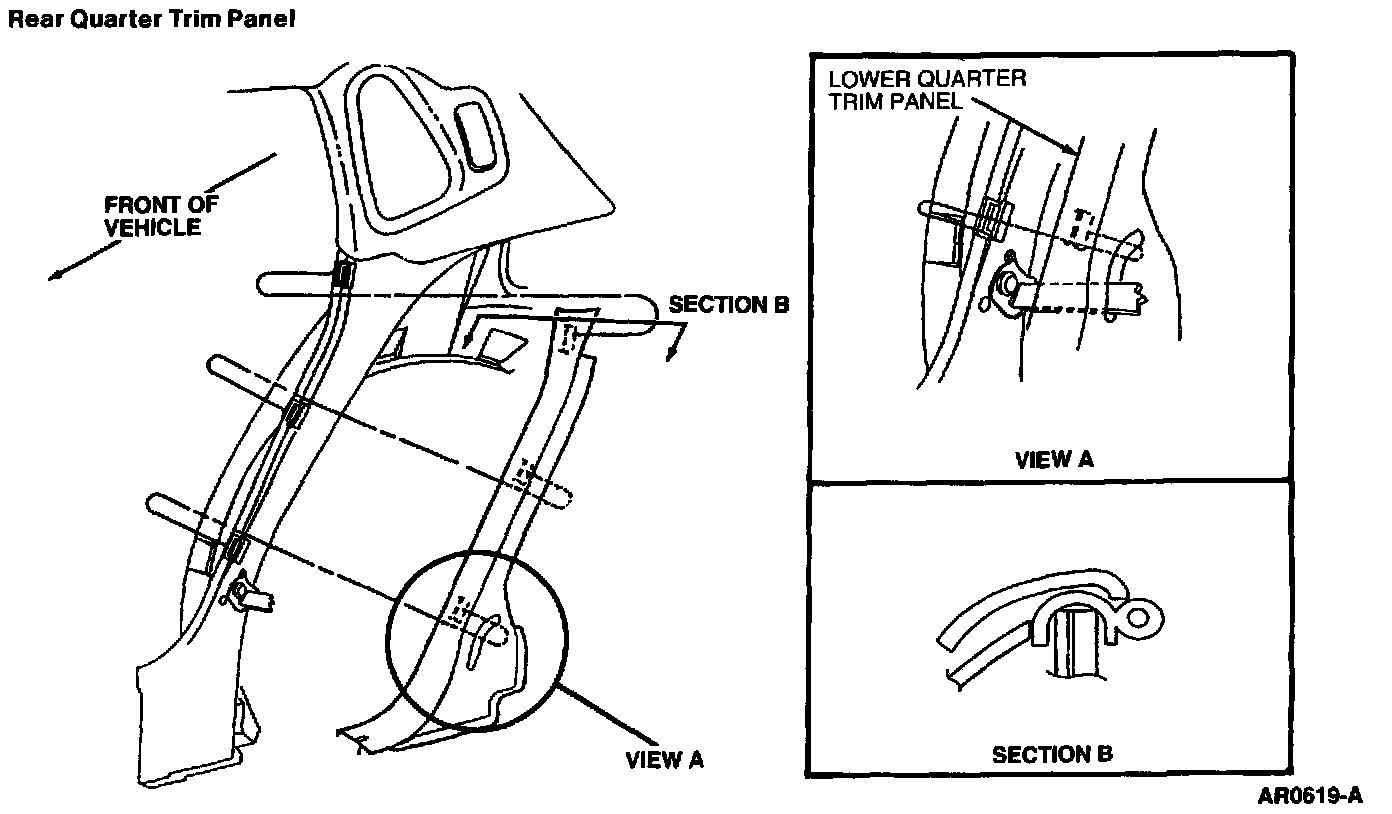

Quarter-Sedan Trim Panel

Remove

1. Remove rear seat.

2. Pull up on rear section of rear door scuff plate that overlaps lower quarter trim panel.

3. Pull lower quarter trim panel away from body.

4. Remove safety belt retaining bolt.

5. Feed safety belt through lower quarter trim panel.






Install

1. Follow removal procedure in reverse order.

2. Tighten safety belt retaining bolt to 30-40 N.m (23-29 lb-ft).
