Driver Side Foot Rest Pad
Driver Side Foot Rest Pad

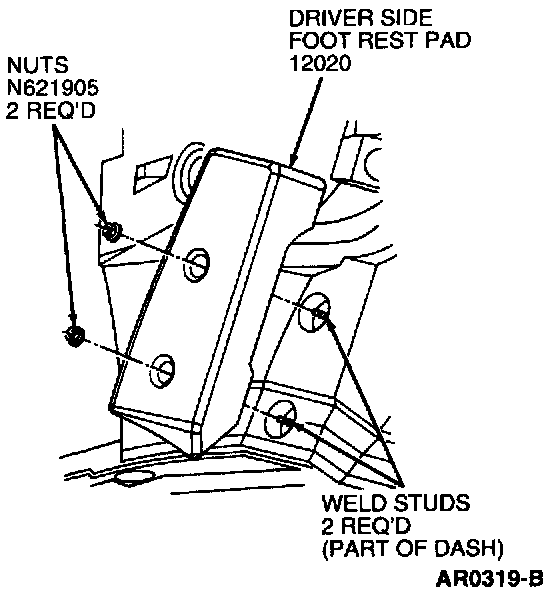

1.
Remove two retaining nuts for drivers side foot rest pad.
2.
Remove drivers side foot rest pad by pulling away from floor pan.
3.
To install, follow removal procedure in reverse order.
