Headliner: Service and Repair

REMOVAL

NOTE: The removal and installation procedures for roof trim panel generally apply to all models. If one or more of the steps do not apply, proceed to the next step.

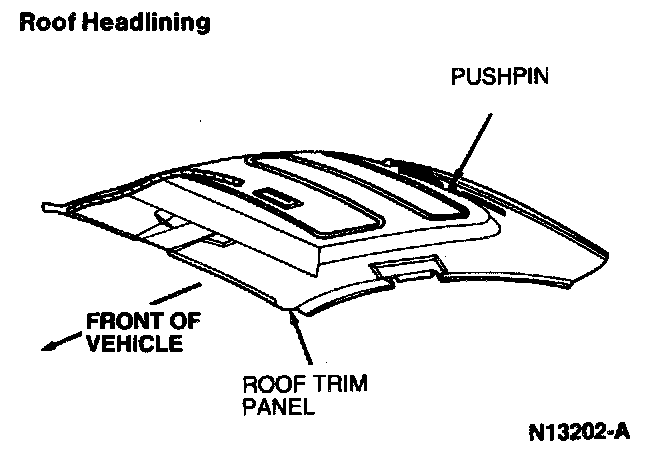

Roof Headlining:

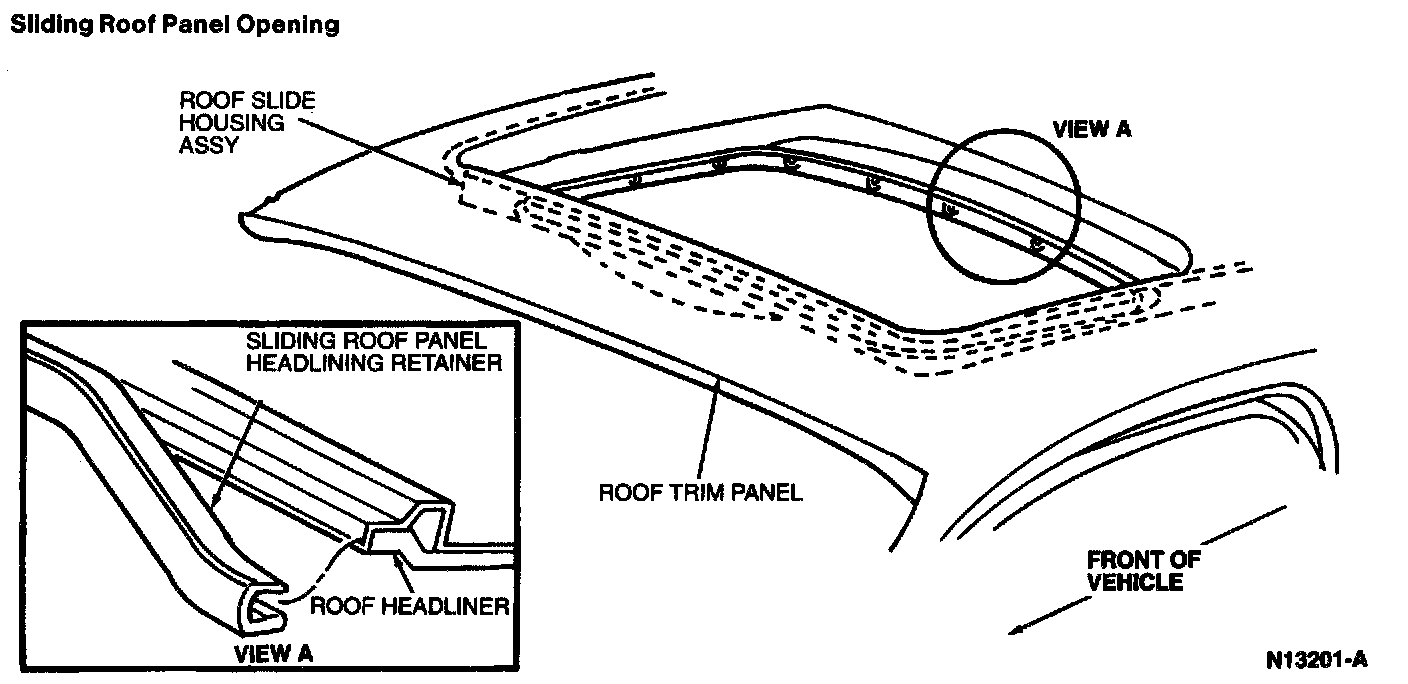

Sliding Roof Panel Opening:

1. Remove LH and RH inside visors and visor arm clips as described.
2. Remove courtesy lamp/map lamp.
3. Remove assist handles/coat hooks as described.
4. Remove weatherstrips at door openings above beltline. Remove moulding around roof panel if equipped.
5. Remove windshield side garnish moulding as described.
6. Remove center body pillar inside upper finish panel.
7. Remove LH and RH rear corner inner upper finish panel as described.
8. Remove LH and RH quarter trim panels as described.
9. Remove pushpins and roof trim panel.

INSTALLATION

NOTE: Adhesive bead height must exceed 12.0 mm (0.47 inch) high. Roof trim must be installed within 10 minutes of adhesive application.

1. Apply Headliner Adhesive F1VY-19562-A meeting Ford specification WSB-M2G355-A to roof panel prior to installation.
2. Align roof trim panel at front of vehicle over inside visor mounting holes and secure.
3. Install sliding roof panel headlining retainer so that seam is centered at rear of interior side of roof panel opening in roof trim panel.

NOTE: Use small indexing notch in roof trim panel as a guide when centering sliding roof panel headlining retainer.

4. Follow the removal procedure in reverse order.
