Finish Panel - Console Center
SPECIAL SERVICE TOOL(S) REQUIREDDescription Tool Number
Radio Removing Tool 415-001 (T87P-19061-A)
REMOVAL
1. Remove console panel, if equipped.
2. Insert Radio Removing Tool 415-001 (T87P-19061-A) into integrated control panel face plate. Push tools in approximately 38 mm (1.5 inches) to release retaining clips.
CAUTION: Do not use excessive force when installing Radio Removing Tool, as this will damage retaining clips and make integrated control panel removal difficult.
3. Apply a light spreading force on tools and pull integrated control panel out of instrument panel.

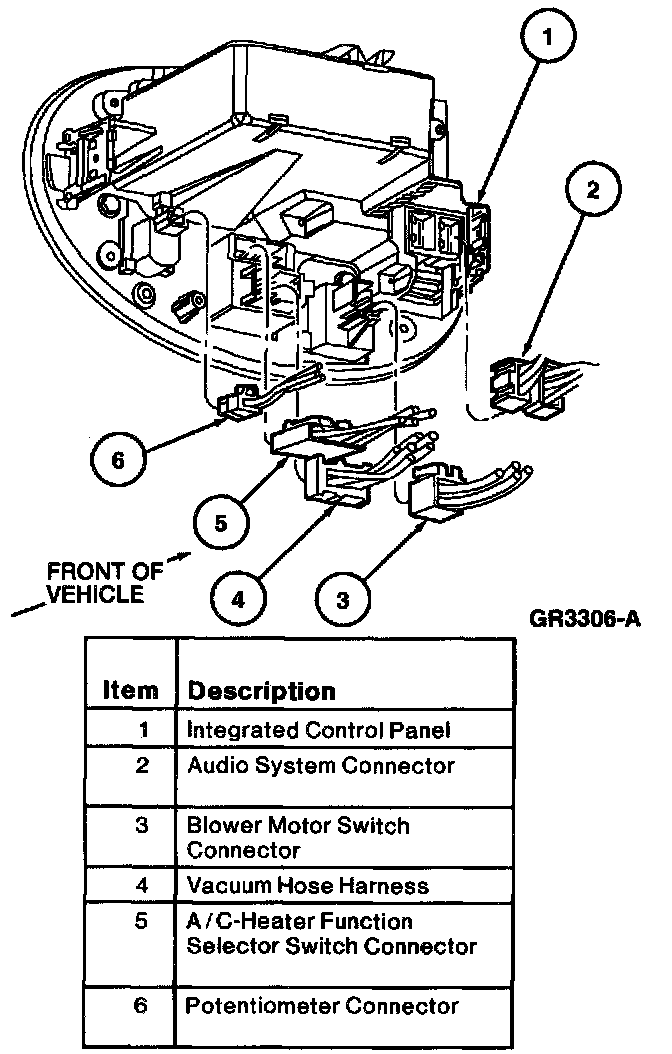

Integrated Control Panel - Manual A/C:
Integrated Control Panel - Electronic Automatic Temperature Control:
4. Disconnect wiring connectors and automatic temperature control sensor hose and elbow, if equipped.
5. Remove screws and console center finish panel.
INSTALLATION
1. Follow removal procedure in reverse order.
