Console: Description and Operation

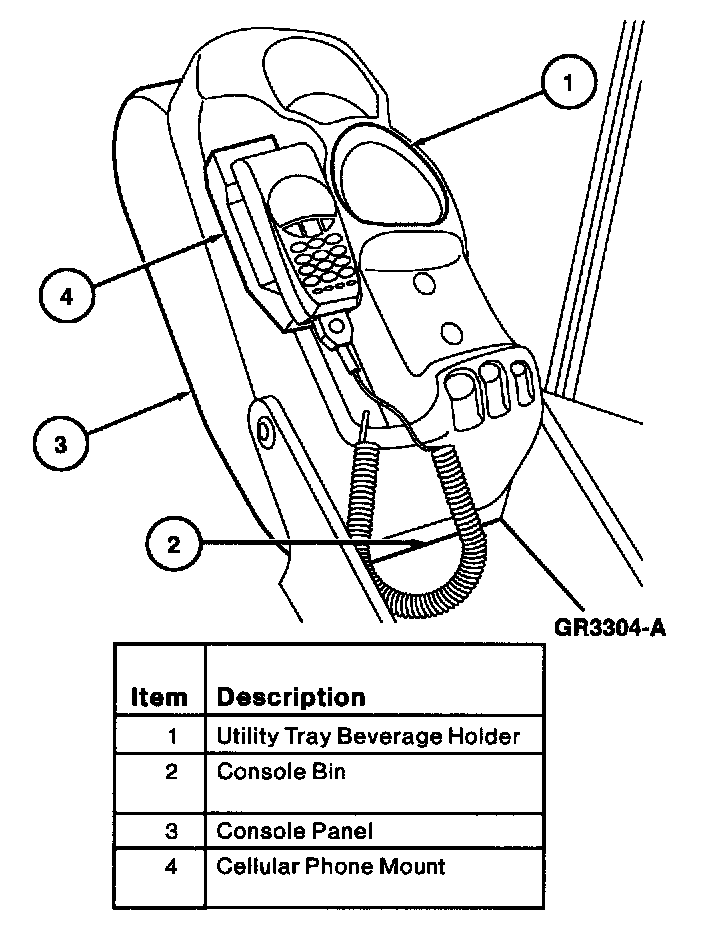

The console panel is located between the seats and consists of the following components:
- console bin
- cellular phone mount/tray
- utility tray beverage holder
- front ash receptacle (optional)
- rear ash receptacle
- rear A/C register
- armrest
